Fujitsu D3488 - Fit the Processor in the Processor Frame on the Heat Sink

32 – English Mainboard D3488
1

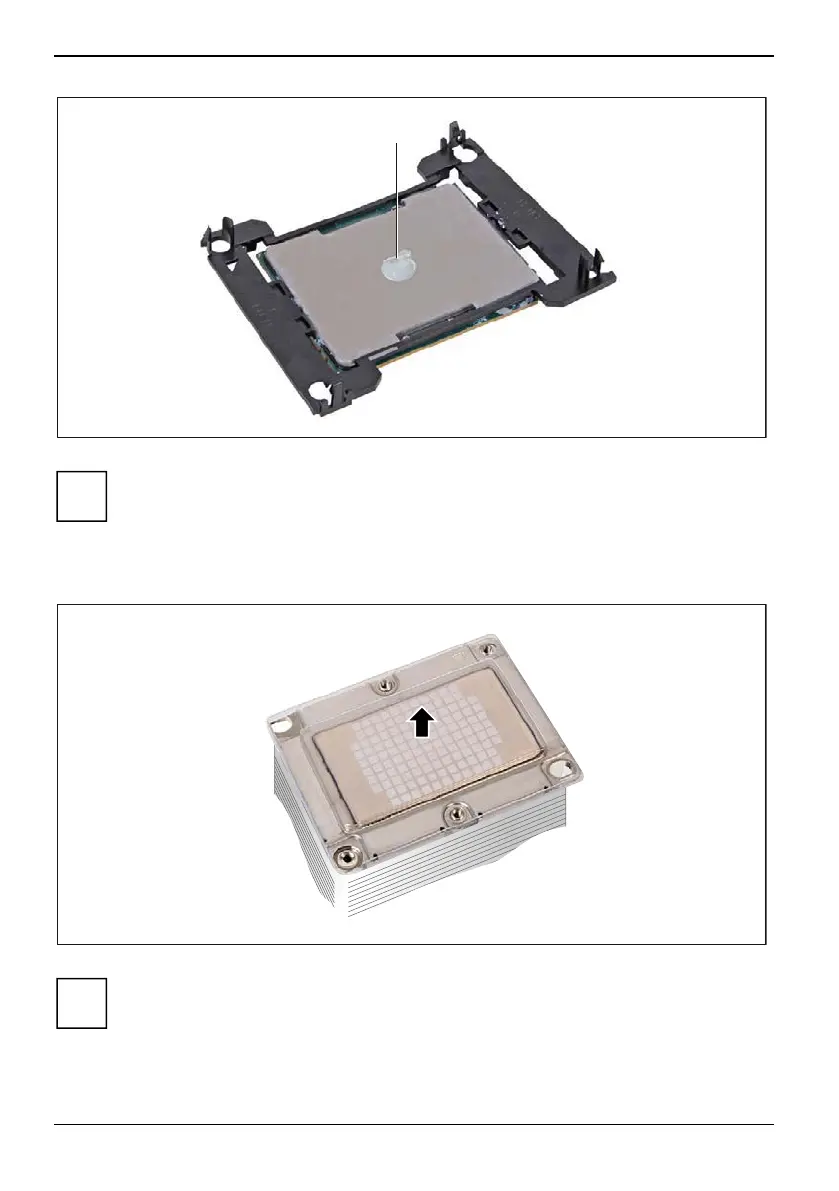

► Apply the amount of heat-conducting paste defined above on the middle of the processor (1).
i
When installing the heat sink, the mass must be evenly distributed.
Fit the processor in the processor frame on the heat sink
► Remove the protective cap, if there is one, from the heat sink and keep it in a safe place.
i
Depending on the positioning of the processor on the heat sink, a processor mounted on a
heat sink can only be installed in processor position 1 or in processor position 2. Incorrect
assembly is prevented by coding pins.
► Place the processor frame on the heat sink.
