Installing Add-In Cards
Before installing add-in cards, please check if they are fully compatible with your motherboard.

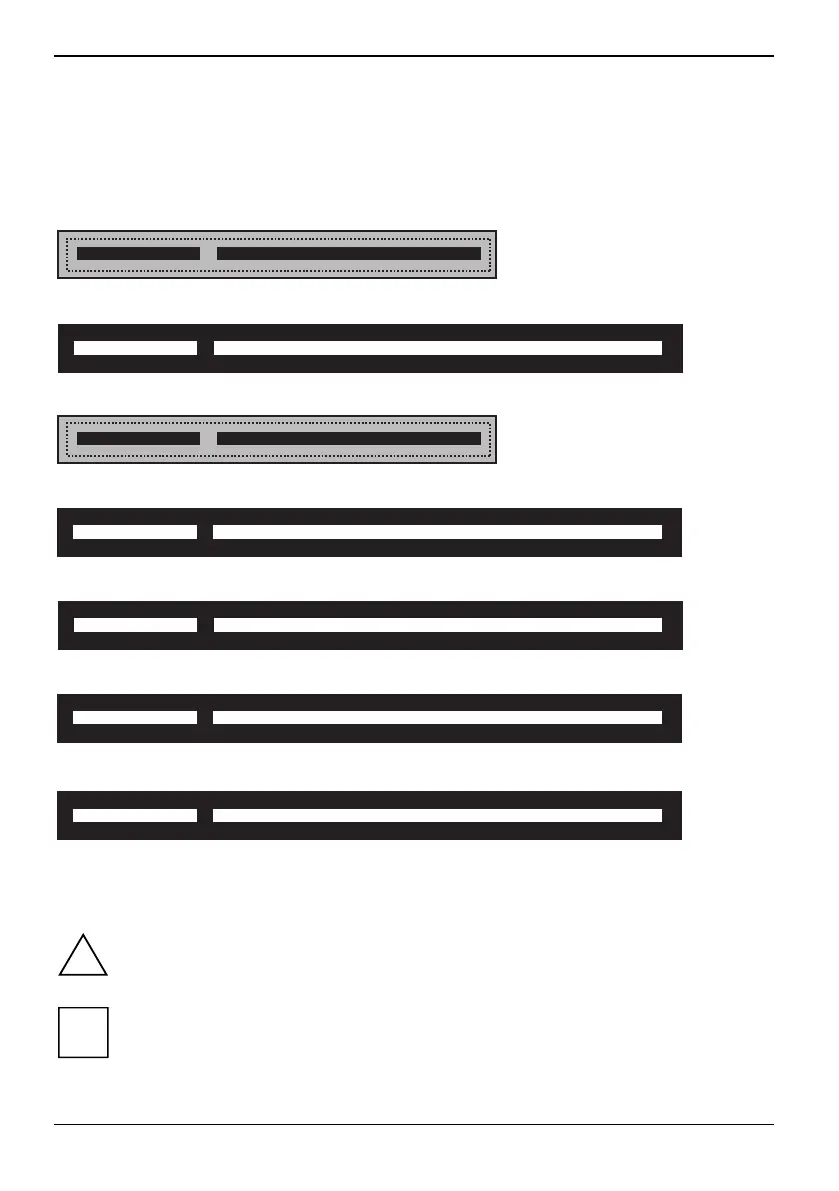

SLOT5 PCle x8 CPU0 (GEN3)
SLOT2 PCle x16 CPU1 (GEN3)
SLOT1 PCI 32 / 33MHz
SLOT3 PCle x16 CPU0 (GEN3)
SLOT4 PCle x16 CPU1 (GEN3)
SLOT6 PCle x16 CPU0 (GEN3)
SLOT7 PCle x8 CPU1 (GEN3)
Simply find the appropriate slot for your add-in card and insert the card firmly. Do not force any addin
cards (or anything else) into any slots if they won’t seat in place. It’s better to try another slot or return
the faulty card rather than damaging both the motherboard and the add-in card.
!
It’s a good practice to install add-in cards in a staggered manner, rather than directly
adjacent to each other. This allows air to more easily circulate within the chassis, providing
improved cooling for all installed devices.
i
You must unplug the power connector to the motherboard before performing system
hardware changes, to avoid damaging the board or expansion device.
