Fujitsu fi-5220C Instruction Manual

3
Versitec 1- 888 - 722 - 6548 www.versitec.com

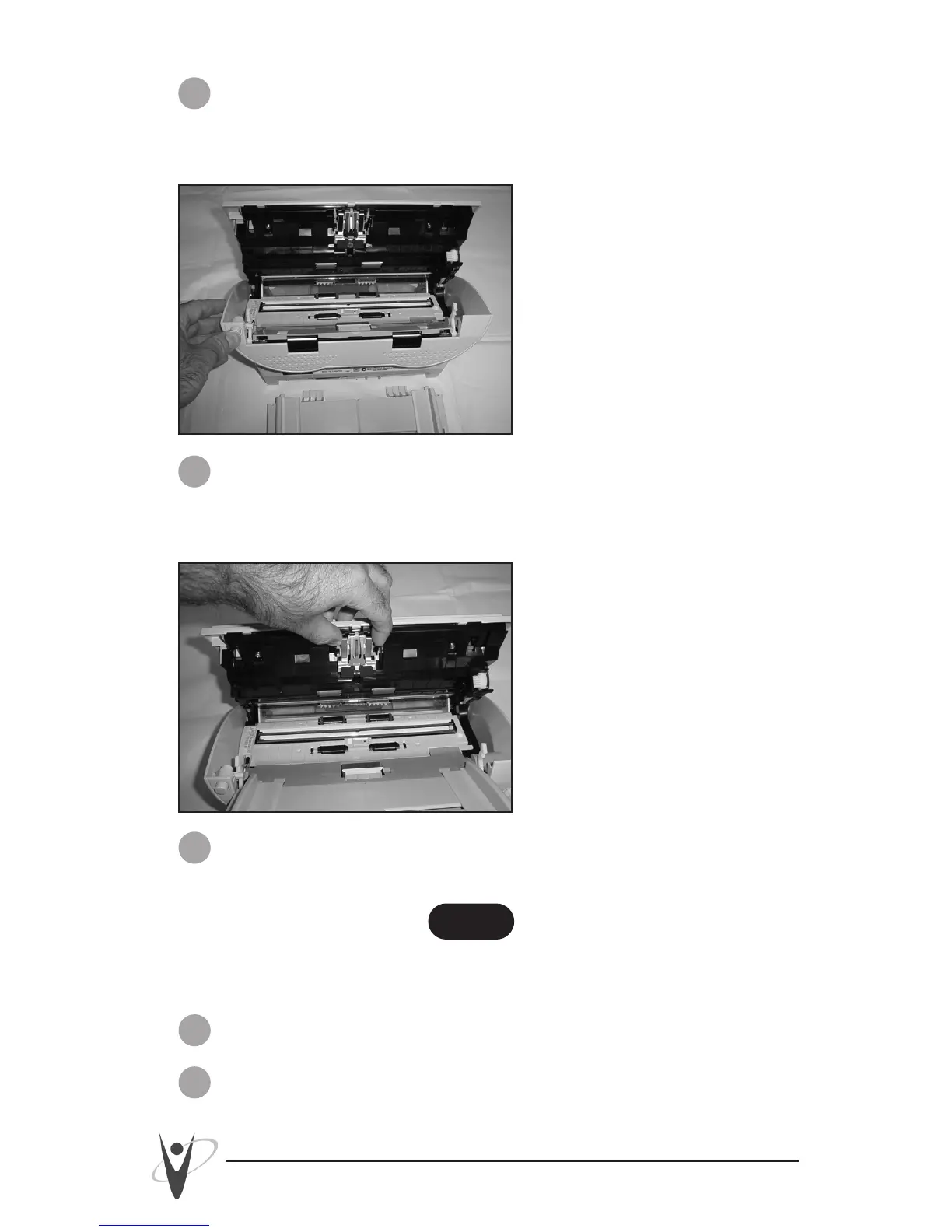

2 Push the ADF cover release button and open the ADF cover to
the front. Be careful that the open cover does not close on
your hands during this process.
3 Remove the original pad assembly by gently pushing in the
knobs on the top of the pad assembly and then pulling it up
and out towards you.
4 Install the new pad assembly by gently pushing in on the knobs
at the top of the pad assembly and attaching it to the ADF.
NOTE:
Make sure that the new pad assembly is securely installed. If it is
installed incorrectly document jamming and misfeeding will result.
5 Close the ADF and press the ADF button to lock it in place.
6 Reset the pad counter if you have access to the host computer.

Fujitsu fi-5220C Specifications

General

Film scanning	No
Color scanning	Yes
Input color depth	24 bit
Maximum scan size	210 x 297 mm
Optical scanning resolution	600 x 600 DPI
Flatbed scan speed (b/w, A4)	2 sec/page
Scanner type	Flatbed & ADF scanner
Sensor type	CCD
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	50 sheets
USB version	2.0
Standard interfaces	SCSI, USB 2.0
Bundled software	-FJ TWAIN driver. -Scandall. -Adobe Acrobat. -ISIS Driver. -QuickScan (demo). -Soft IPC (demo). -VRS 4.1 Basic.
Dimensions (WxDxH)	302 x 569 x 229 mm
Power requirements	100-240 VAC
Power consumption (standby)	6 W
Power consumption (typical)	34 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Weight	8400 g
