Fujitsu fi-5220C User Manual

5.3ReplacingthePickRoller(1)
fi-5120C / fi-5220C Image Scanner Operator Guide
TROUBLE SHOOTING
CONTENTS MAP
TOP


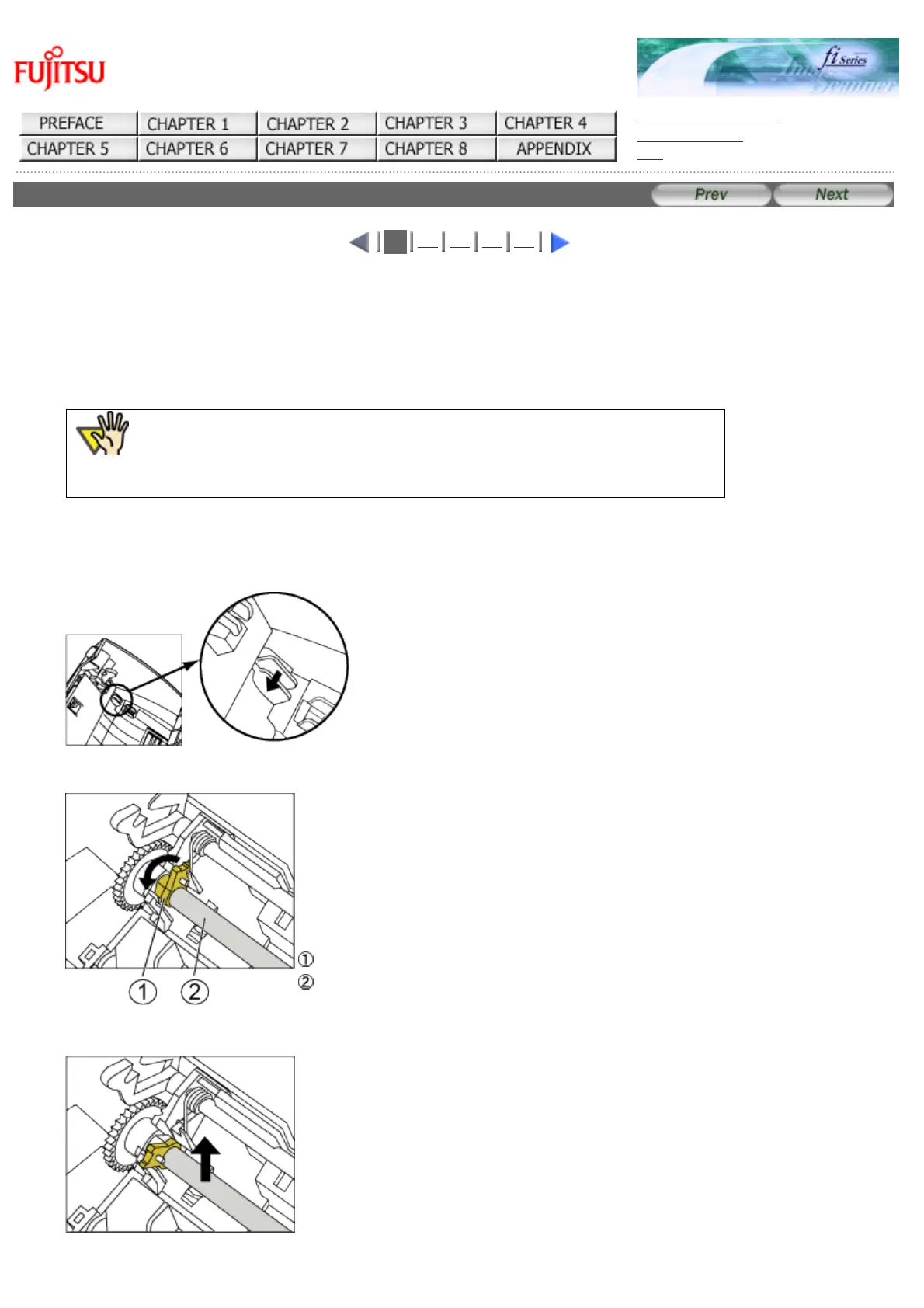

5.3ReplacingthePickRoller(1)


1
2 3 4 5
1. Remove any documents on the ADF Paper Chute.
2. Remove the ADF paper chute.
3. Open the ADF by pulling the ADF Open Lever.
ATTENTION
Be careful, the ADF may close and pinch your finger.
4. Remove the Pick roller from the scanner.
1. Grip the knobs on the sheet guide with your fingers, and lift it up to remove.
2. Rotate the Pick roller bushing in the direction of the arrow.
Pick Roller Bushing
Pick Roller Shaft
3. Remove the Pick roller while lifting it up in the direction of the arrow.
file://///Hd-htgle21/Manual/fi-5120C5220C-lynx2/OG/R03/contents/EN/05/c050301.htm(1/2)2006/08/2916:01:18

Fujitsu fi-5220C Specifications

General

Film scanning	No
Color scanning	Yes
Input color depth	24 bit
Maximum scan size	210 x 297 mm
Optical scanning resolution	600 x 600 DPI
Flatbed scan speed (b/w, A4)	2 sec/page
Scanner type	Flatbed & ADF scanner
Sensor type	CCD
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	50 sheets
USB version	2.0
Standard interfaces	SCSI, USB 2.0
Bundled software	-FJ TWAIN driver. -Scandall. -Adobe Acrobat. -ISIS Driver. -QuickScan (demo). -Soft IPC (demo). -VRS 4.1 Basic.
Dimensions (WxDxH)	302 x 569 x 229 mm
Power requirements	100-240 VAC
Power consumption (standby)	6 W
Power consumption (typical)	34 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Weight	8400 g
