5.3ReplacingthePickRoller(2)
fi-5120C / fi-5220C Image Scanner Operator Guide
TROUBLE SHOOTING
CONTENTS MAP
TOP

5.3ReplacingthePickRoller(2)


1
2
3 4 5

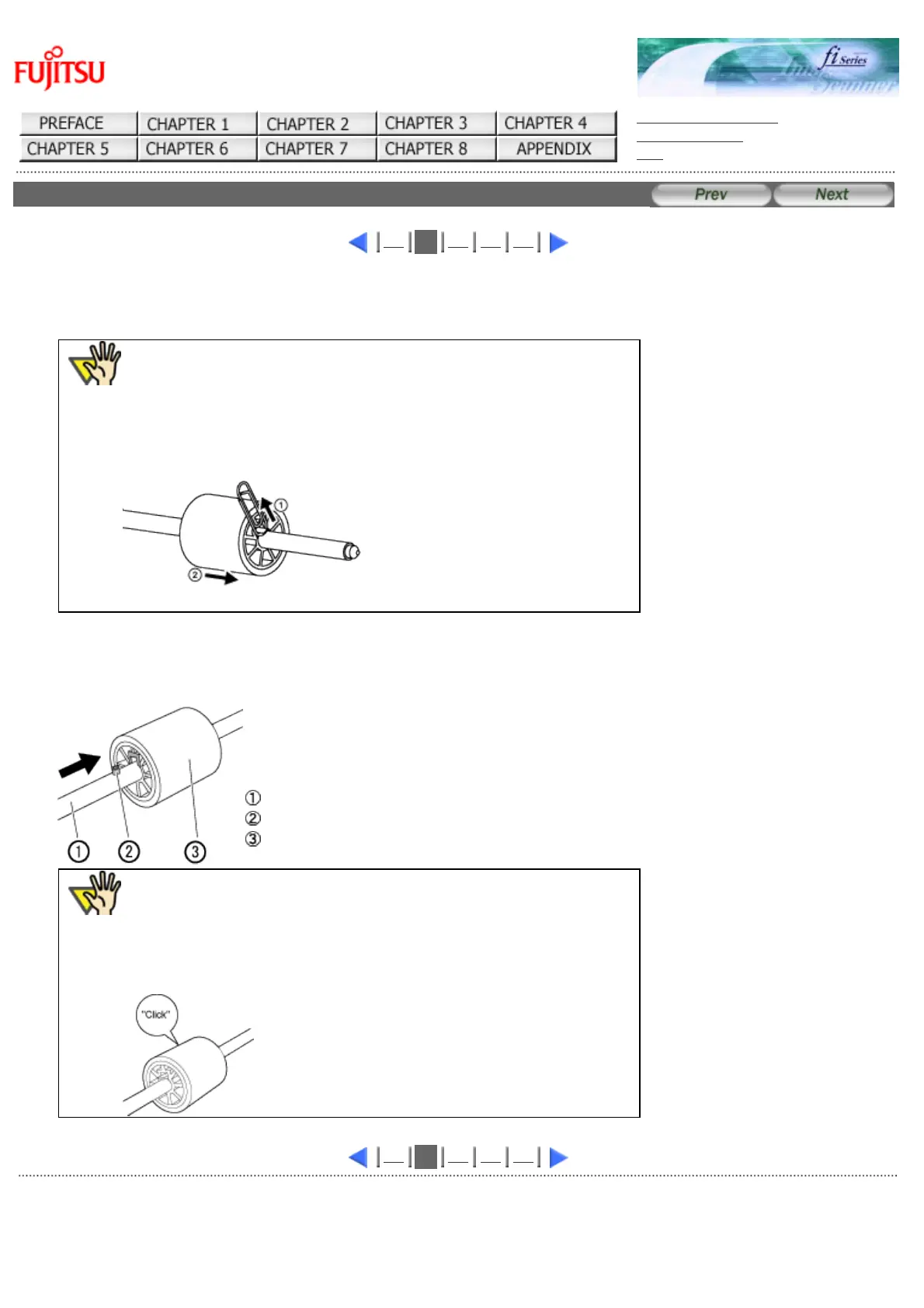

5. Remove the Pick roller from the shaft while lifting up the tab on the Pick roller.
Pull out the shaft from the pick roller while lifting up its tab.
ATTENTION
If you push up the pick roller tab using your fingernail, it may heart
or get chipped your fingernail. If you worry about that, you push up
the pick roller tab using a paper clip.
6. Attach the new Pick roller.
Insert the new Pick roller aligning the protrusion on the shaft with the slot for the screw in the Pick roller.
: Pick Roller Shaft
: Protusion
: Pick Roller
ATTENTION
Make sure that the Pick roller is completely attached. An incompletely
attached Pick roller might cause document jams or other feedings errors.
1
2
3 4 5
AllRightsReservedCopyright2006©PFULIMITED
file://///Hd-htgle21/Manual/fi-5120C5220C-lynx2/OG/R03/contents/EN/05/c050302.htm2006/08/2916:01:20

Fujitsu fi-5220C Specifications

General

Film scanning	No
Color scanning	Yes
Input color depth	24 bit
Maximum scan size	210 x 297 mm
Optical scanning resolution	600 x 600 DPI
Flatbed scan speed (b/w, A4)	2 sec/page
Scanner type	Flatbed & ADF scanner
Sensor type	CCD
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	50 sheets
USB version	2.0
Standard interfaces	SCSI, USB 2.0
Bundled software	-FJ TWAIN driver. -Scandall. -Adobe Acrobat. -ISIS Driver. -QuickScan (demo). -Soft IPC (demo). -VRS 4.1 Basic.
Dimensions (WxDxH)	302 x 569 x 229 mm
Power requirements	100-240 VAC
Power consumption (standby)	6 W
Power consumption (typical)	34 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Weight	8400 g
