8.2 Document quality (Continued)
Do not use the following documents:
● Paper-clipped or stapled documents
● Documents on which the ink is still wet
● Documents smaller than A8 (Portrait) in size
● Documents wider than A3 or 11 in. x 17 in. size
● Documents other than paper such as fabric, metal foil, or transparencies
HINT
● When scanning semi-transparent documents, set the density to light to avoid bleed through.
● To prevent the rollers from becoming dirty, avoid scanning documents containing large areas written or filled in pencil. If scanning of such
documents is inevitable, clean the rollers more frequently.
ATTENTION
Carbonless paper contains chemical substances that may harm the Pad ASSY or rollers (e.g. Pick roller) when documents are fed. Pay
attention to the following:
Cleaning :
If pick errors occur frequently, clean the Pad ASSY and the Pick roller. For details on clean the Brake roller and the Pick roller set. For details
on cleaning the Brake roller and the Pick roller set, refer to "
4.2 Cleaning the ADF".
Replacing parts :
The service life of the Pad ASSY and the Pick roller may be shortened compared to the case of scanning wood containing paper documents.
When scanning wood containing paper, the life of the Pad ASSY and the Pick roller may be shortened compared to the case of scanning
wood free paper.
HINT

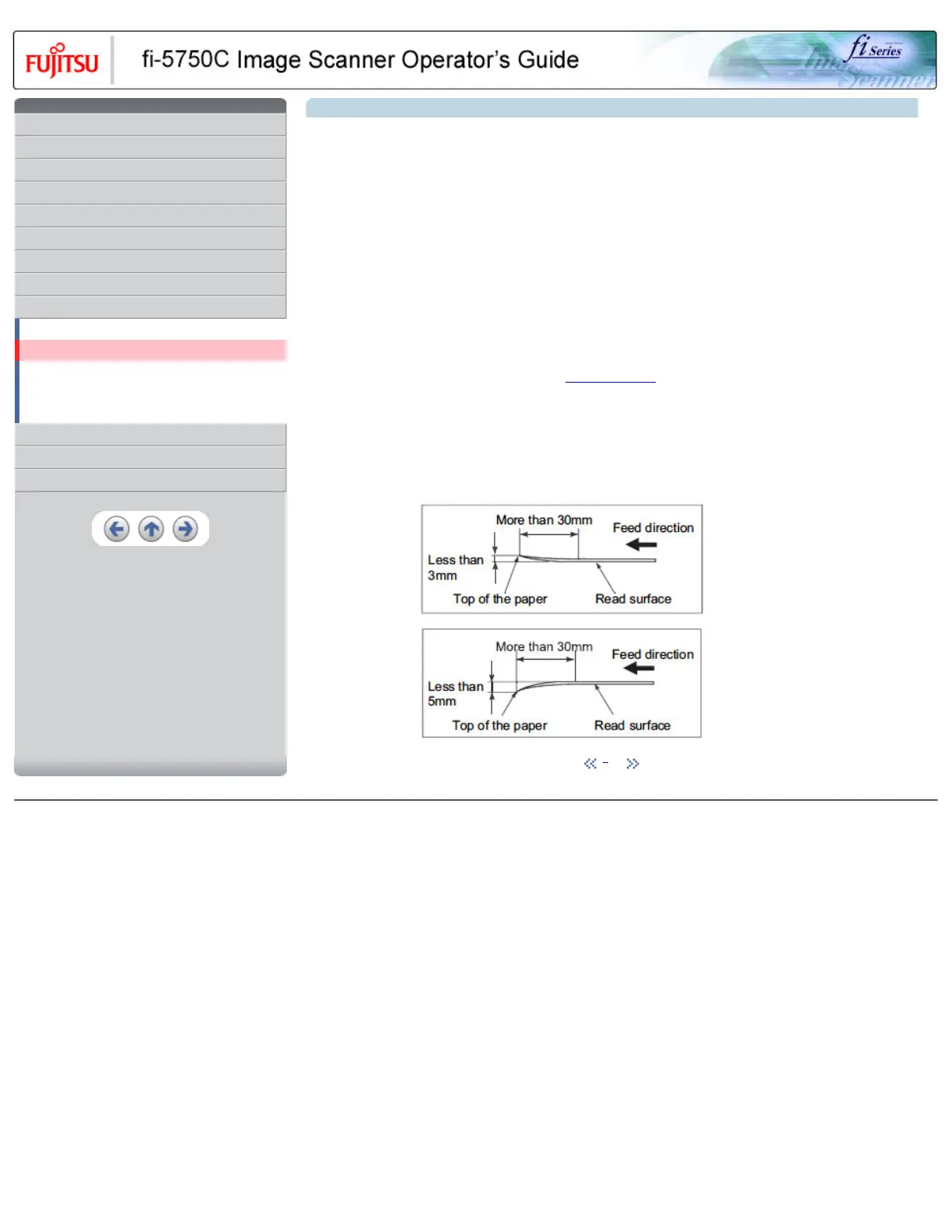

When using the ADF, the leading edge of all document sheets must be evenly aligned. Make sure that curling at the leading edge is within
the following tolerances:
1 | 2
