RIGHT-SIDE PANEL COMPONENTS
Volume Control
The volume control is a knob which provides
manual control of the sound level of all audio
output from your notebook. (Figure 1-9.)
Microphone Jack
The microphone jack allows you to connect an
external mono microphone. (Figure 1-9.)
USB Port
This port allows you to connect Universal
Serial Bus (USB) devices, such as external game
pads, pointing devices, keyboards and speakers.
(Figure 1-9.)
Power Switch
This switch is the main power switch for your
notebook. (Figure 1-9.)
DC Power Jack
The DC power jack allows you to plug in the
AC adapter or the optional auto/airline adapter.
(Figure 1-9.)
Theft Prevention Lock Slot
This slot allows you to attach a physical lock
down device, such as the optional Notebook
Guardian. (Figure 1-9.)

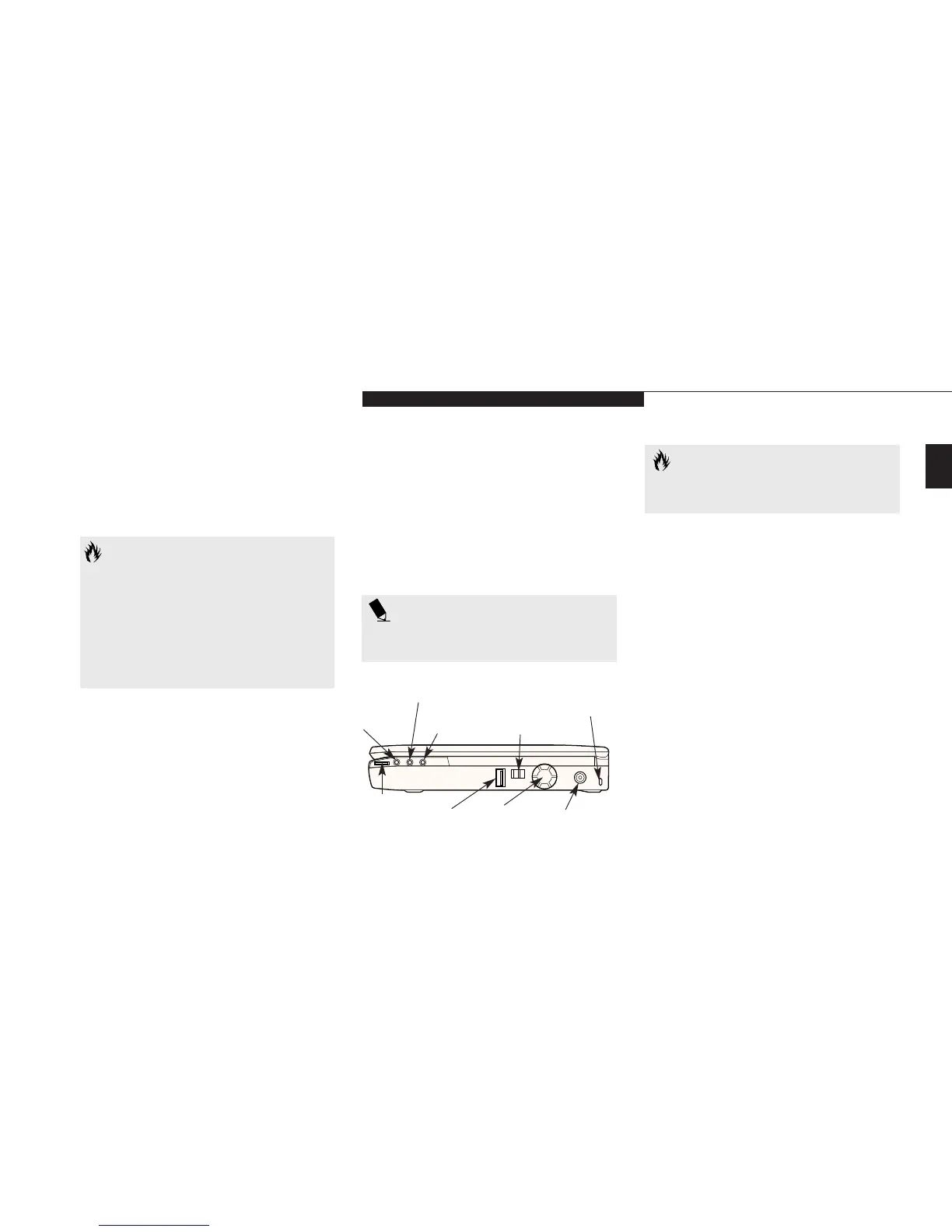

Figure 1-9 LifeBook E Series Right-side Panel
Stereo Line
In Jack
Microphone
Jack
Power Switch
Theft Prevention
Lock Slot
USB
Port
DC Power Jack
Volume
Control
Headphone
Jack
Fan
CAUTION
FAN: Do not block the circulation
of air flow.
CAUTION
There are also software volume controls.
The knob setting and the software
settings will interact. Software volume
off will override the knob setting and
the software volume setting will control
the maximum knob setting. (See Volume
Control on page 34 for more information.)
Headphone Jack
You can connect headphones or powered exter-
nal speakers to the headphone jack.(Figure 1-9.)
Stereo Line In Jack
The stereo line in jack allows you to connect an
external audio source to your notebook, like an
audio cassette player. This jack will not support
an external microphone. (Figure 1-9.)
POINT
Windows NT 4.0 does not support USB
devices at this time.
