PART NAMES AND FUNCTIONS

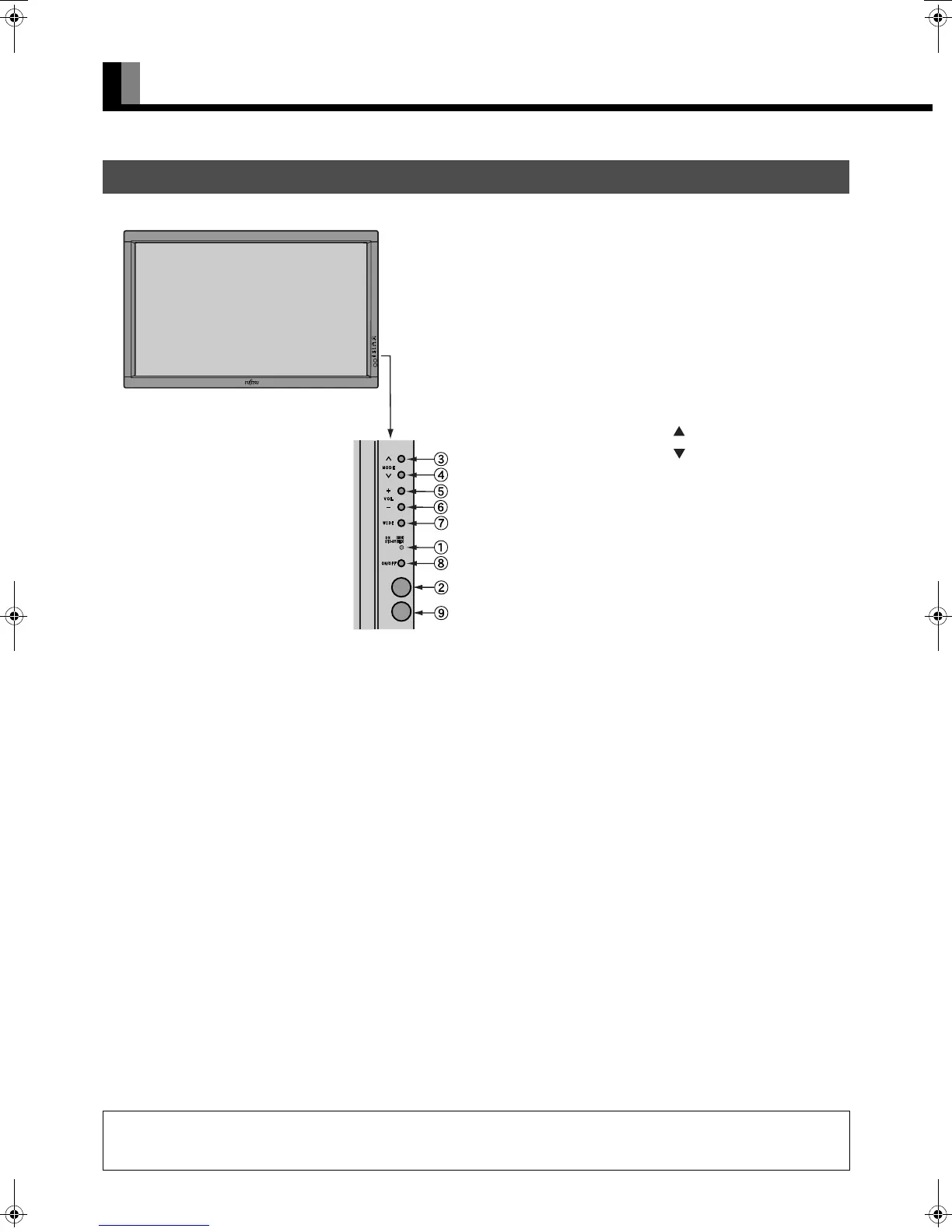

DISPLAY SECTION – FRONT
Power indicator lamp
This lamp shows the state of the power supply.
Lit (red): Stand-by state
Lit (green): Power ON state
Flashing (red or green): Malfunction (Flashes differently
depending on the type of
malfunction.)
Remote control signal receiver
Receives signals from the remote control.
Input mode selector button [MODE]
Input mode selector button [MODE]
Switches between picture input modes.
VOL + button
VOL - button
Adjusts the audio volume.
Wide screen selector button [WIDE]
Switches the screen over to a desired wide screen.
ON/OFF button
Turns the power "ON" and "OFF (standby state)".
Ambient Sensor
Detects the brightness of external light.
Do not obstruct it.
Warning
If the power indicator lamp flashes red or green, this signifies that the display has developed a problem. When this happens, be sure to remove the
power plug from the receptacle and contact your dealer. Leaving the display power ON can result in fire or electric shock.
