Installing an accessible 5.25-inch slimline drive Accessible drives
V CAUTION!
Keep the dummy cover for future use. If you remove the accessible drive
again and do not replace it with a new one, the dummy cover must be
reinstalled to comply with EMC regulations and to satisfy cooling require-
ments and fire protection measures.

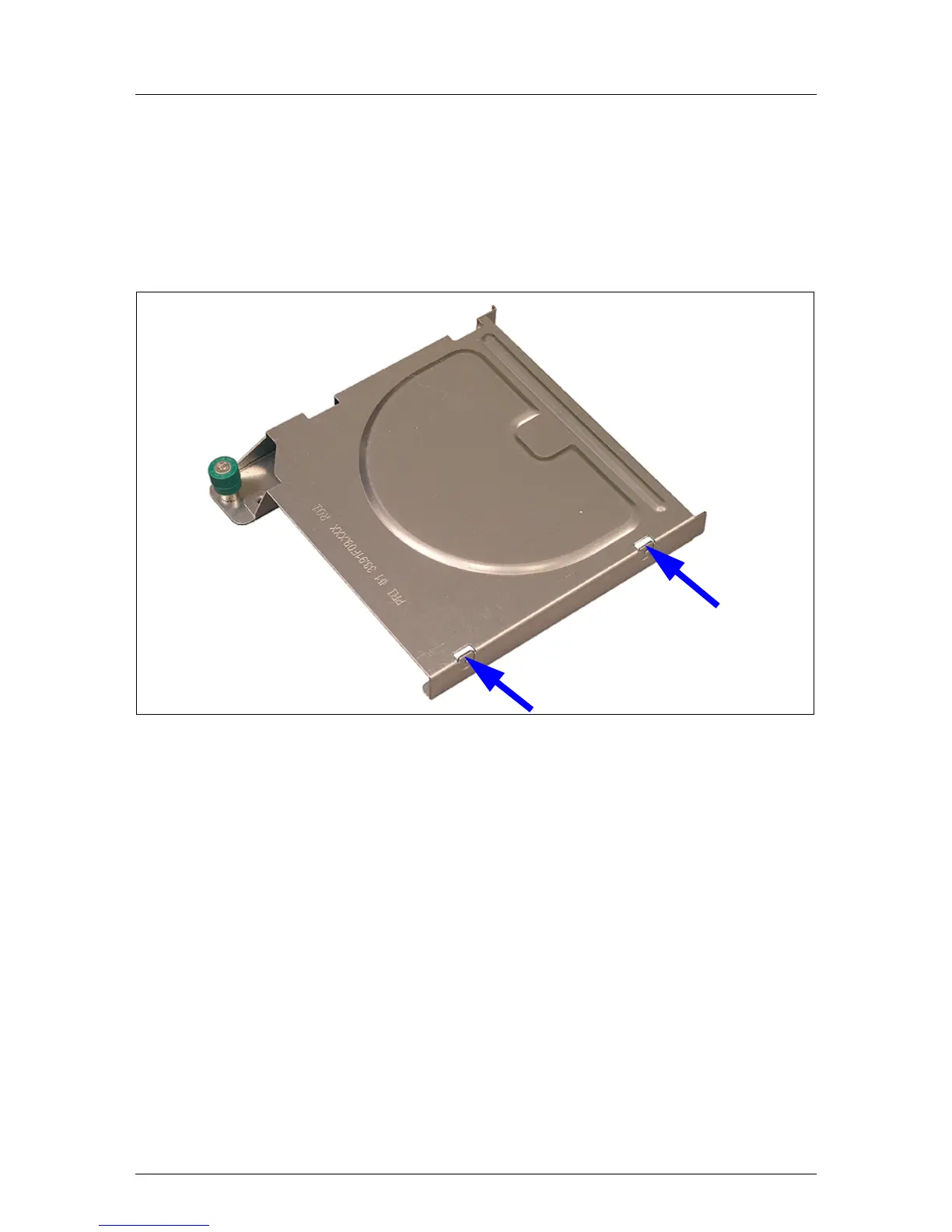

Figure 8: Mounting frame
Ê Push the 5.25-inch slimline drive in the mounting frame and fasten it with two
screws on the left hand side (see arrows).
