30 Options Guide U41617-J-Z156-1-76
Installing a controller Controller in the PCI slots
Ê Please read the documentation supplied with the controller.
Ê If necessary, connect cables onto the controller.

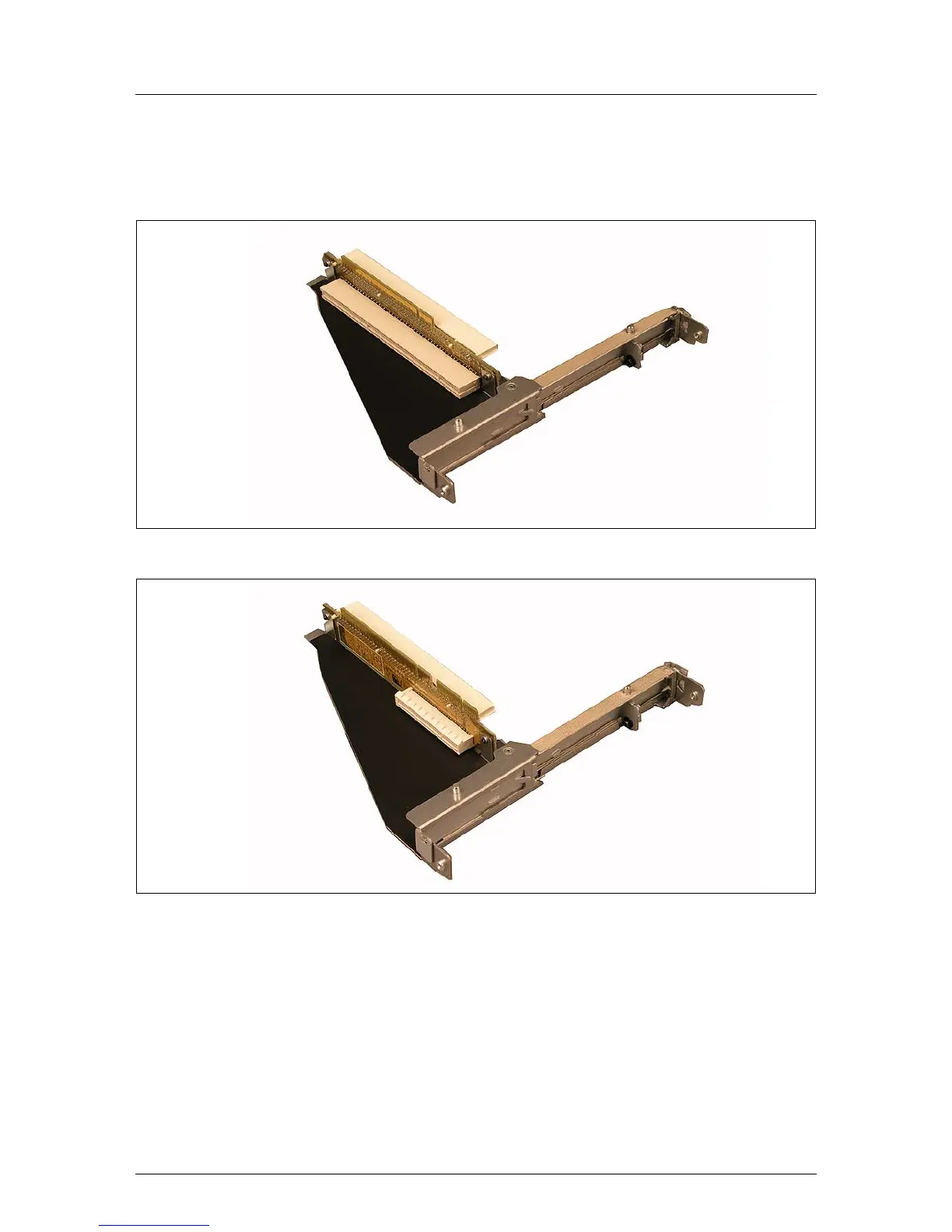

Figure 13: Riser card holder with riser card 1
Figure 14: Riser card holder with riser card 2
Ê Remove the PCI slot’s rear cover.
V CAUTION!
Keep the rear cover of the PCI slot for future use. If you remove the
controller again and do not replace it with a new one, the rear cover
must be reinstalled to comply with EMC regulations and to satisfy
cooling requirements and fire protection measures.
