Fujitsu PRIMERGY RX2530 M2 User Manual

144 Upgrade and Maintenance Manual RX2530 M1
Hard disk drives / solid state drives
Ê Connect the SAS cables:
The shorter SAS cable connected to HDD backplane (A3C40157828) to
connector "MLC1" of the dual-channel RAID controller (1) or to connector
"MLC SATA1-4" of the system board
The longer SAS cable connected to HDD backplane (A3C40157852) to
connector "MLC2" of the dual-channel RAID controller (2) or to connector
"MLC SATA7-10" of the system board

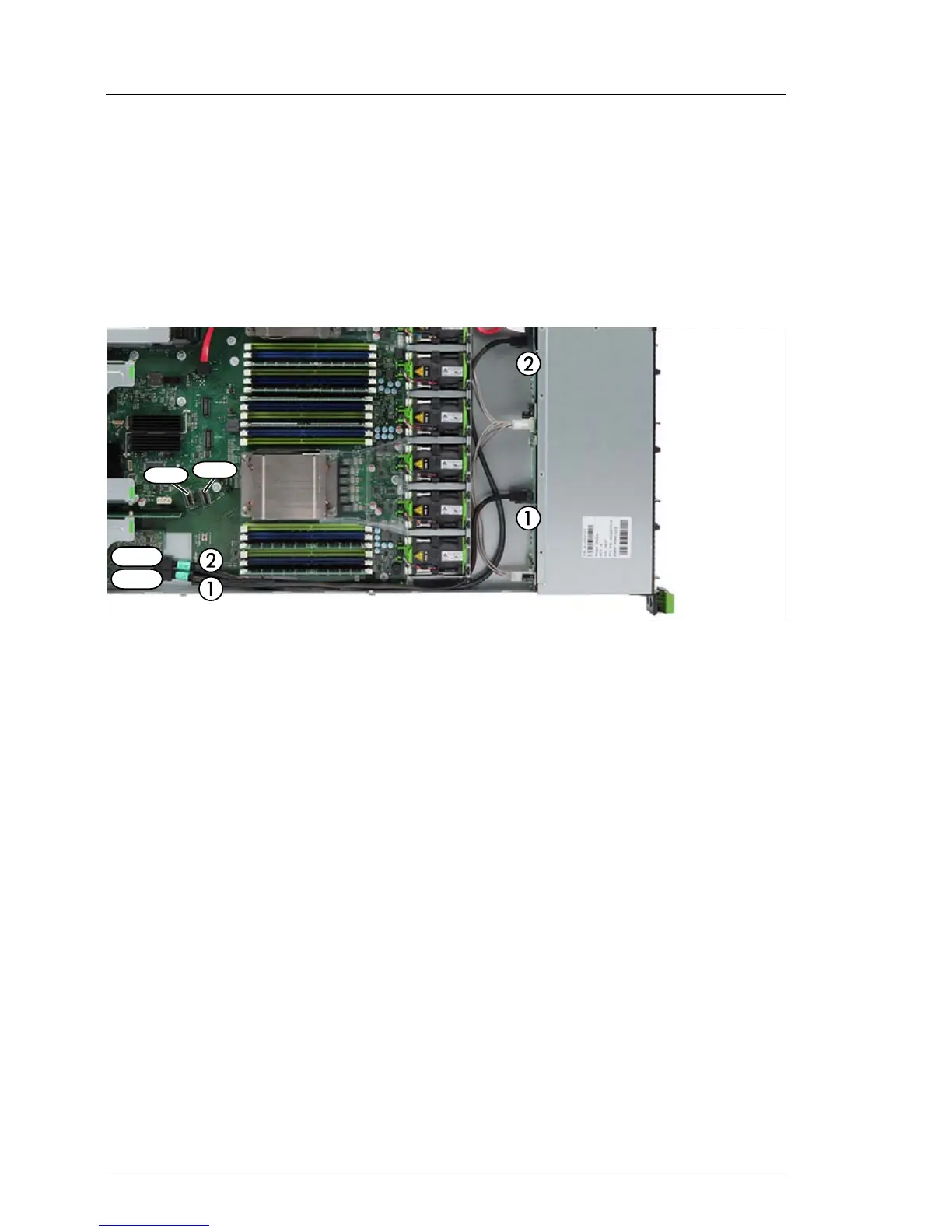

Figure 70: Routing SAS cables
Ê Route the SAS cables as shown in the figure above.
7.2.11.3 Installing additional HDD/SSD modules
Ê Remove the dummy locks as described in section "Removing a 2.5-inch
HDD/SSD dummy module" on page 123.
Ê Move the HDD/SSD modules installed in the former HDD bays 1 to 4 (see
figure 37) to the new HDD bays 1 to 4 (see figure 41).
Ê Insert additional HDD/SSD modules as described in section "Installing 2.5-
inch HDD/SSD modules" on page 123.
7.2.11.4 Concluding steps
Ê "Reassembling" on page 54
Ê "Connecting the server to the mains" on page 60
Ê "Switching on the server" on page 61
Ê "Performing a RAID array rebuild" on page 96
MLC 2
MLC 1
MLC 7-10
MLC 1-4

Fujitsu PRIMERGY RX2530 M2 Specifications

General

Processor series	Intel Xeon E5-2600 v4
Processor socket	-
Intel Xeon series	E5-2600
Built-in processor	No
Motherboard chipset	Intel® C612
Compatible processor series	Intel® Xeon® E5 Family
Number of processors supported	2
ECC	Yes
Number of DIMM slots	24
Supported memory types	DDR4-SDRAM
Maximum internal memory	3072 GB
Storage drive sizes supported	3.5 \
Supported storage drive types	HDD & SSD
Number of storage drives supported	4
Supported storage drive interfaces	Serial ATA, Serial Attached SCSI (SAS)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	5
PCI Express slots version	3.0
Chassis type	Rack (1U)
Product color	Black
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth	770.7 mm
Width	483 mm
Height	43 mm
Weight	16000 g
