RX2530 M1 Upgrade and Maintenance Manual 295
Serial interface
Ê Remove the corresponding riser module as described in section "Removing
a riser module" on page 62.

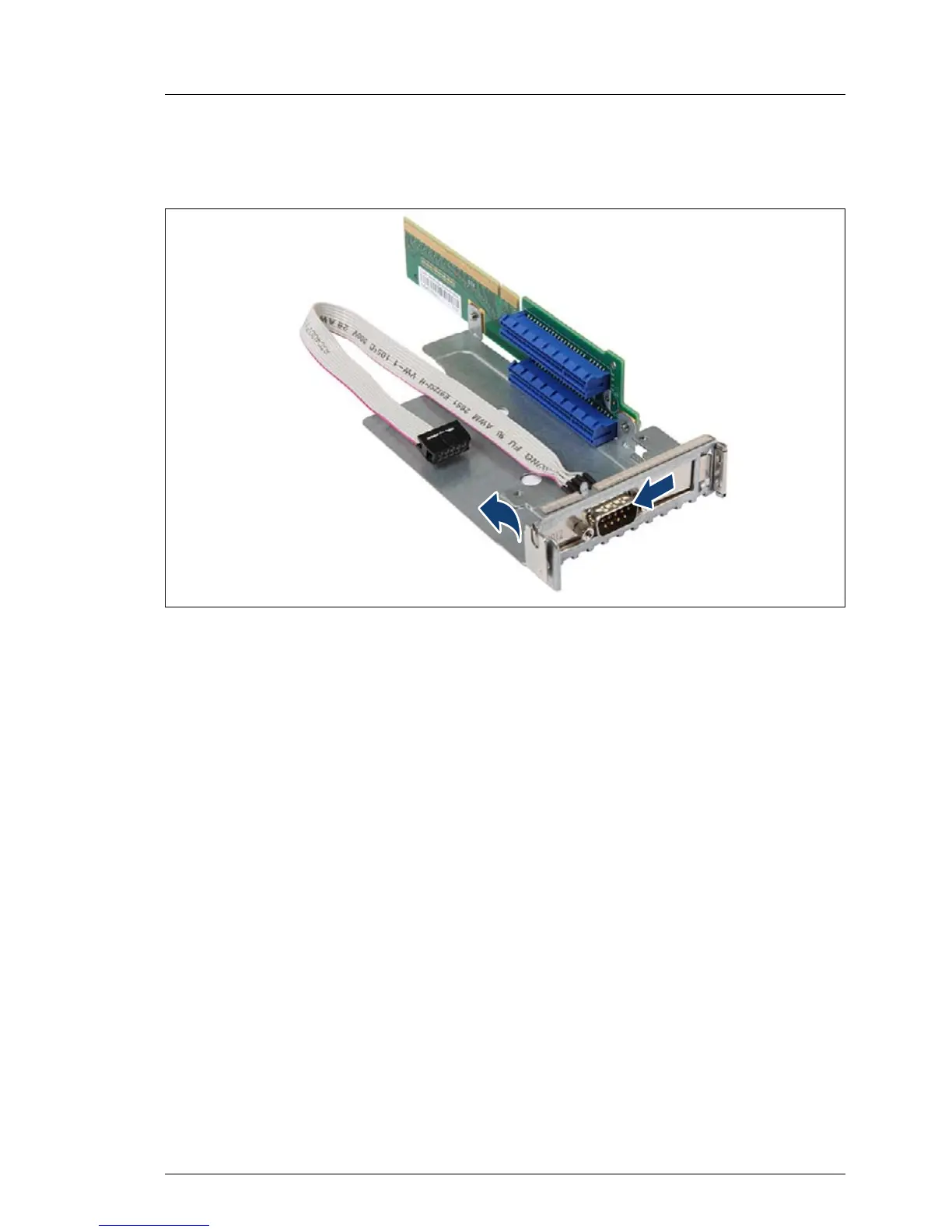

Figure 216: Removing the serial interface - example riser module 1
Ê Remove the serial interface.
14.2.3 Installing the slot cover
Ê Install the corresponding slot cover as described in section "Installing the
slot cover (only slot 2-4)" on page 194.
Ê Install the corresponding riser module as described in section "Installing a
riser module" on page 63.
14.2.4 Concluding steps
Ê "Reassembling" on page 54
Ê "Connecting the server to the mains" on page 60
Ê "Switching on the server" on page 61
Ê "Resuming BitLocker functionality" on page 95

Fujitsu PRIMERGY RX2530 M2 Specifications

General

Processor series	Intel Xeon E5-2600 v4
Processor socket	-
Intel Xeon series	E5-2600
Built-in processor	No
Motherboard chipset	Intel® C612
Compatible processor series	Intel® Xeon® E5 Family
Number of processors supported	2
ECC	Yes
Number of DIMM slots	24
Supported memory types	DDR4-SDRAM
Maximum internal memory	3072 GB
Storage drive sizes supported	3.5 \
Supported storage drive types	HDD & SSD
Number of storage drives supported	4
Supported storage drive interfaces	Serial ATA, Serial Attached SCSI (SAS)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	5
PCI Express slots version	3.0
Chassis type	Rack (1U)
Product color	Black
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth	770.7 mm
Width	483 mm
Height	43 mm
Weight	16000 g
