152 Upgrade and Maintenance Manual RX2530 M1
Hard disk drives / solid state drives
7.3.5.2 Removing the defective 3.5-inch HDD backplane

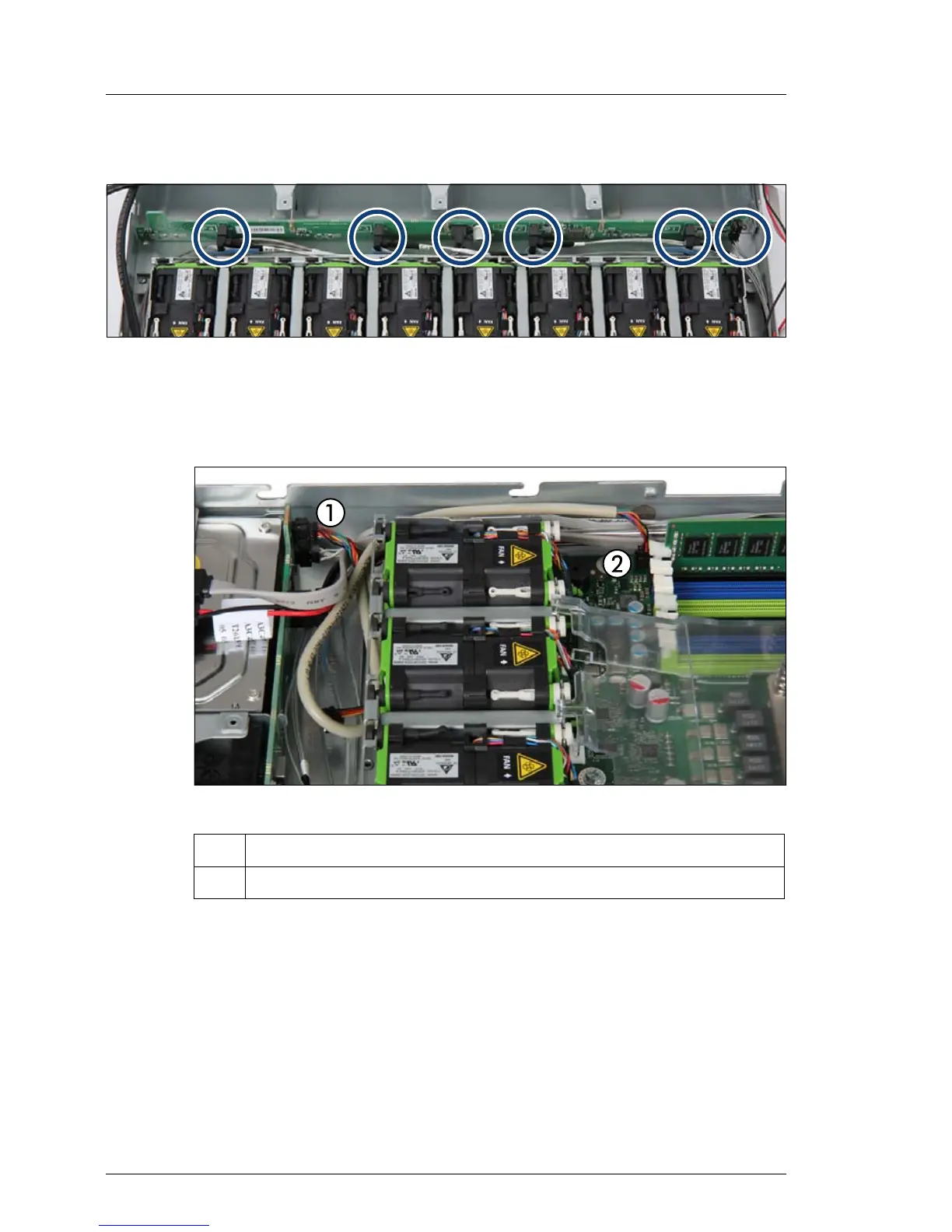

Figure 77: Disconnecting the cables
Ê Disconnect all cables from the HDD backplane (see blue circles).
I If applicable, remove the OOB cable from the HDD backplane, too.
Figure 78: Connecting the OOB cable
1 Connector HDD backplane
2 Connector system board

Fujitsu PRIMERGY RX2530 M2 Specifications

General

Processor series	Intel Xeon E5-2600 v4
Processor socket	-
Intel Xeon series	E5-2600
Built-in processor	No
Motherboard chipset	Intel® C612
Compatible processor series	Intel® Xeon® E5 Family
Number of processors supported	2
ECC	Yes
Number of DIMM slots	24
Supported memory types	DDR4-SDRAM
Maximum internal memory	3072 GB
Storage drive sizes supported	3.5 \
Supported storage drive types	HDD & SSD
Number of storage drives supported	4
Supported storage drive interfaces	Serial ATA, Serial Attached SCSI (SAS)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	5
PCI Express slots version	3.0
Chassis type	Rack (1U)
Product color	Black
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth	770.7 mm
Width	483 mm
Height	43 mm
Weight	16000 g
