216 Upgrade and Maintenance Manual RX2530 M1
Expansion cards and backup units

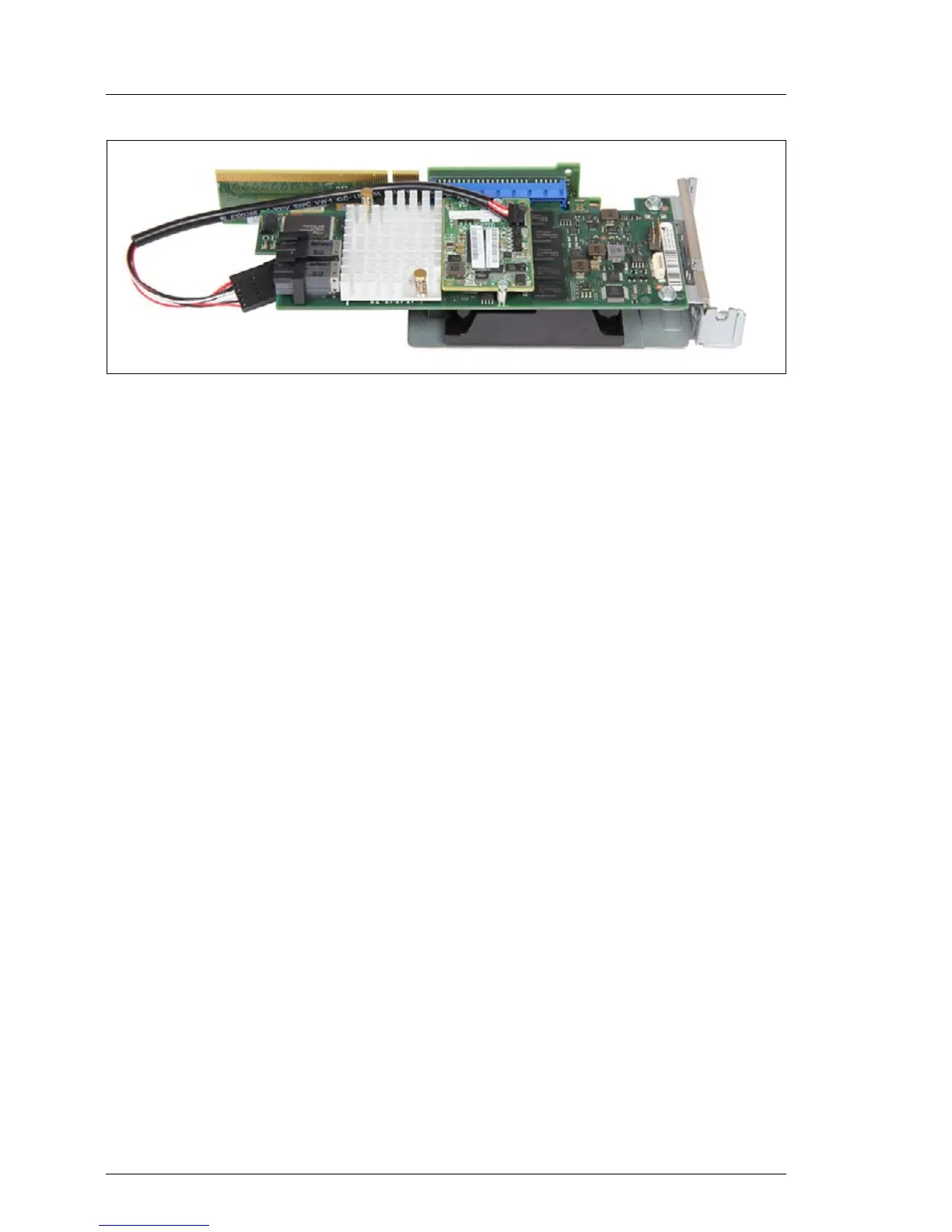

Figure 152: Routing the FBU cable
Ê Install the RAID controller with the TFM in slot 1 as described in section
"Installing an expansion card" on page 190.
Ê Route the FBU cable as shown in the figure.
9.6.2.5 Concluding steps
Ê Install the riser module 1 as described in section "Handling riser modules"
on page 62.
Ê "Reassembling" on page 54
Ê "Connecting the server to the mains" on page 60
Ê "Updating RAID controller firmware" on page 82
Ê "Enabling SVOM boot watchdog functionality" on page 89
Ê "Switching on the server" on page 61
I The recalibration of the FBU starts automatically, and finishes within a
few minutes.

Fujitsu PRIMERGY RX2530 M2 Specifications

General

Processor series	Intel Xeon E5-2600 v4
Processor socket	-
Intel Xeon series	E5-2600
Built-in processor	No
Motherboard chipset	Intel® C612
Compatible processor series	Intel® Xeon® E5 Family
Number of processors supported	2
ECC	Yes
Number of DIMM slots	24
Supported memory types	DDR4-SDRAM
Maximum internal memory	3072 GB
Storage drive sizes supported	3.5 \
Supported storage drive types	HDD & SSD
Number of storage drives supported	4
Supported storage drive interfaces	Serial ATA, Serial Attached SCSI (SAS)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	5
PCI Express slots version	3.0
Chassis type	Rack (1U)
Product color	Black
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth	770.7 mm
Width	483 mm
Height	43 mm
Weight	16000 g
