Front panel
13.3.1.2 Removing the dummy cover

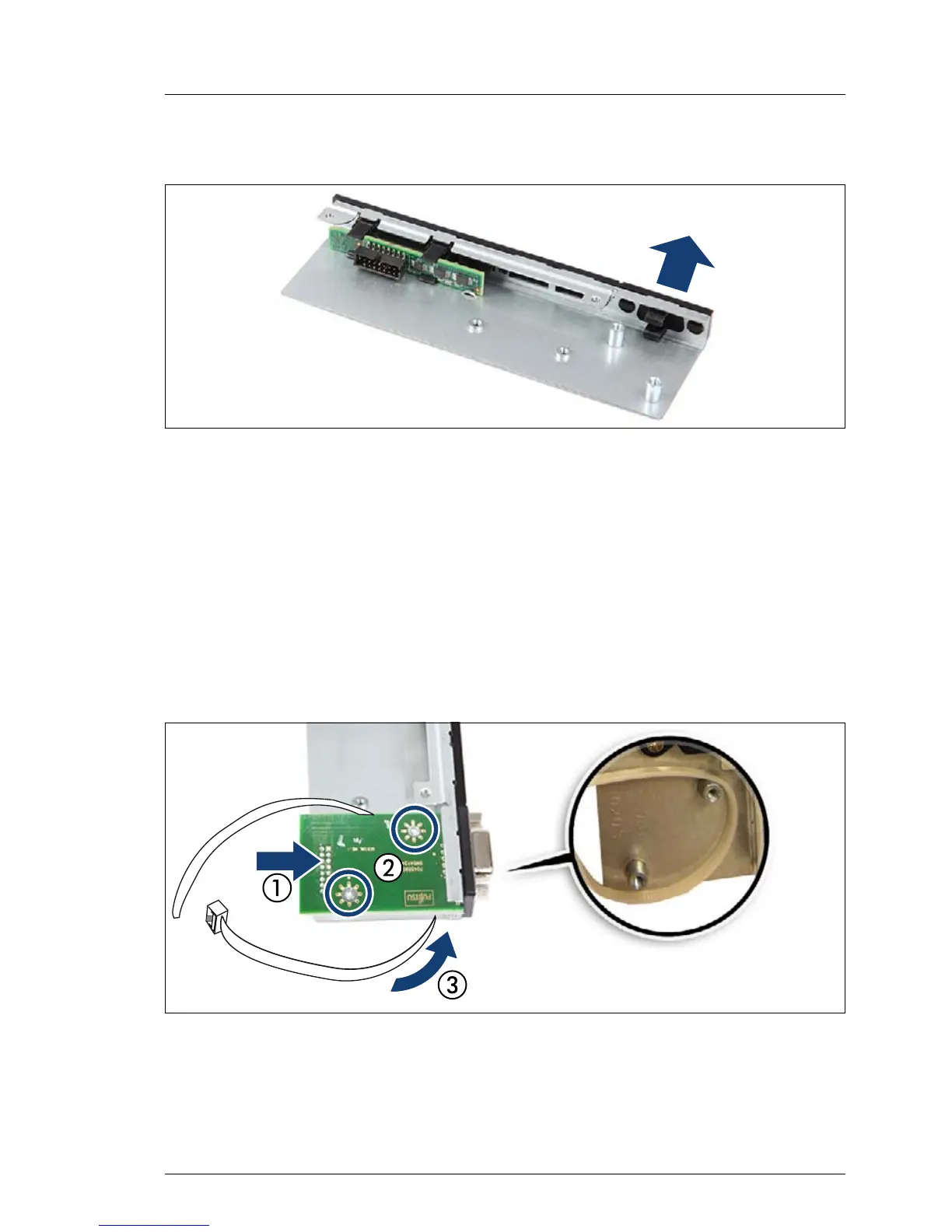

Figure 202: Removing the dummy cover
Ê Remove the dummy cover.
V CAUTION!
Keep the dummy cover for future use. If you remove the front VGA board
again and do not replace it with a new one, the dummy cover must be
reinstalled to comply with EMC regulations and to satisfy cooling
requirements and fire protection measures.
13.3.1.3 Installing the front VGA board
Figure 203: Installing the front VGA board
Ê Push the front VGA connector in the corresponding recess (1) and fasten the
front VGA board with two screws (2).
Ê Route the cable tie under the front VGA board (3).

Fujitsu PRIMERGY RX2530 M2 Specifications

General

Processor series	Intel Xeon E5-2600 v4
Processor socket	-
Intel Xeon series	E5-2600
Built-in processor	No
Motherboard chipset	Intel® C612
Compatible processor series	Intel® Xeon® E5 Family
Number of processors supported	2
ECC	Yes
Number of DIMM slots	24
Supported memory types	DDR4-SDRAM
Maximum internal memory	3072 GB
Storage drive sizes supported	3.5 \
Supported storage drive types	HDD & SSD
Number of storage drives supported	4
Supported storage drive interfaces	Serial ATA, Serial Attached SCSI (SAS)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	5
PCI Express slots version	3.0
Chassis type	Rack (1U)
Product color	Black
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth	770.7 mm
Width	483 mm
Height	43 mm
Weight	16000 g
