4.8 Fan box
4.8.1 Removing the fan box
Ê Open the server as described in section “Opening the server” on page 17.
Ê Remove the cover (see section “Accessible Drives“ in the PRIMERGY
RX300 S3 Options Guide).
Ê Remove the air duct ( see section “upgrading/replacing the main memory“ in
the PRIMERGY RX300 S3 Options Guide).
Removing air duct

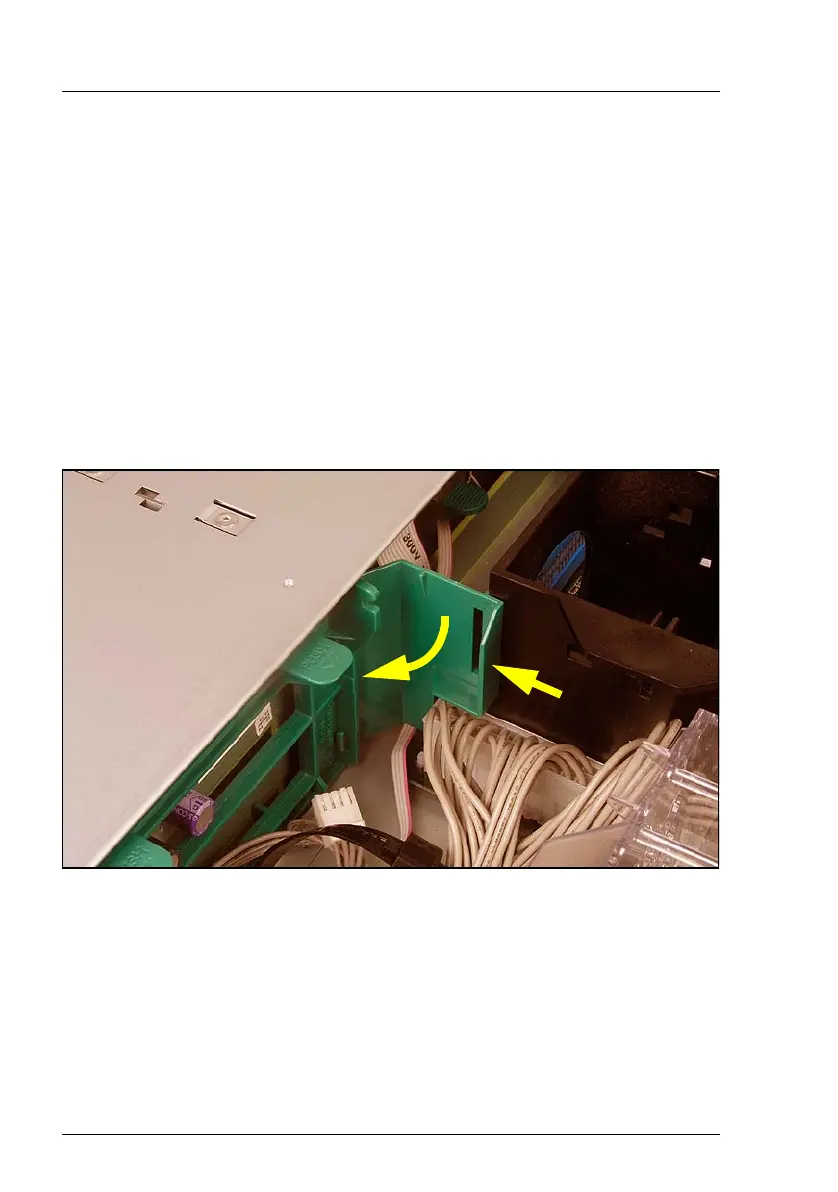

Figure 28: Removing the airduct
Ê Push the green air duct toward the front (1).
Ê Remove the air duct in the direction of the arrow (2).
1
2
