RX300 S3 Service Supplement 41
Replacement routines Fan box
4.8.2 Installing the fan box
The installation takes place in reverse order to section 4.8.1, but please regard
the following notes:

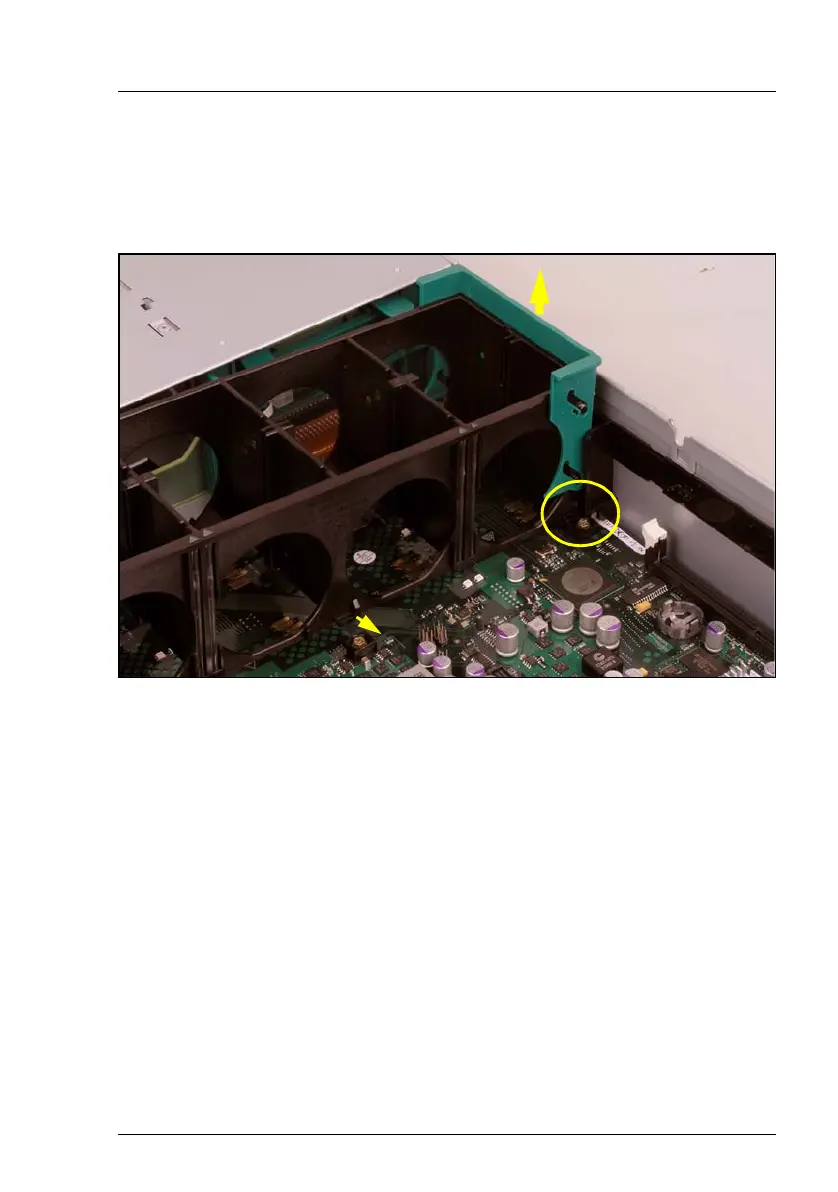

Figure 32: Insterting the fan box
I Take care of the correct position of the lock when installing the fan box.
The lock must be pulled up and then the box must be inserted while tilting
it under the guides.
Ê Insert the fan box straight down onto the system board. Ensure that
the noses of the fanbox are in front of the plastic holders.
V CAUTION!
Push the fan box straight on only, so that no components on the system
board will be disturbed.
