RX300 S4 Options Guide 37
Processors Replacing the processor

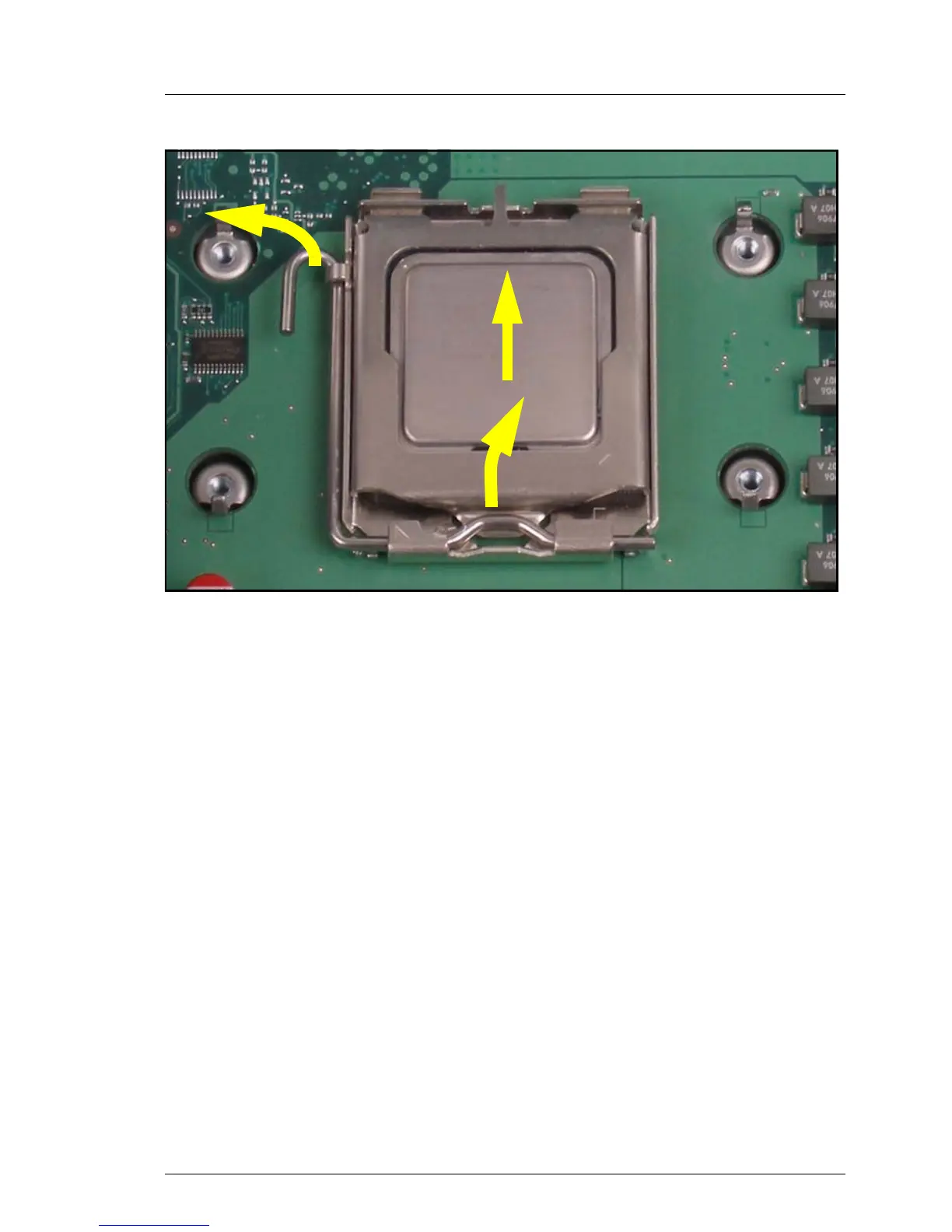

Figure 17: Removing the processor
Ê Release the socket lever and pull it upward as far as it will go (1).
Ê Open the socket (2).
Ê Carefully remove the installed processor (3).
2
1
3
