RX300 S4 Options Guide 79
12 External parallel interface
V CAUTION!
Observe the safety instructions in the chapter “Safety notes” on page 15.
12.1 Installing an external parallel interface
Ê Open the server as described in the chapter “Preparation” on page 21.
I If you install the parallel interface additional to an external serial interface,
the parallel interface is to install in slot 6.
Parallel interface in standard configuration

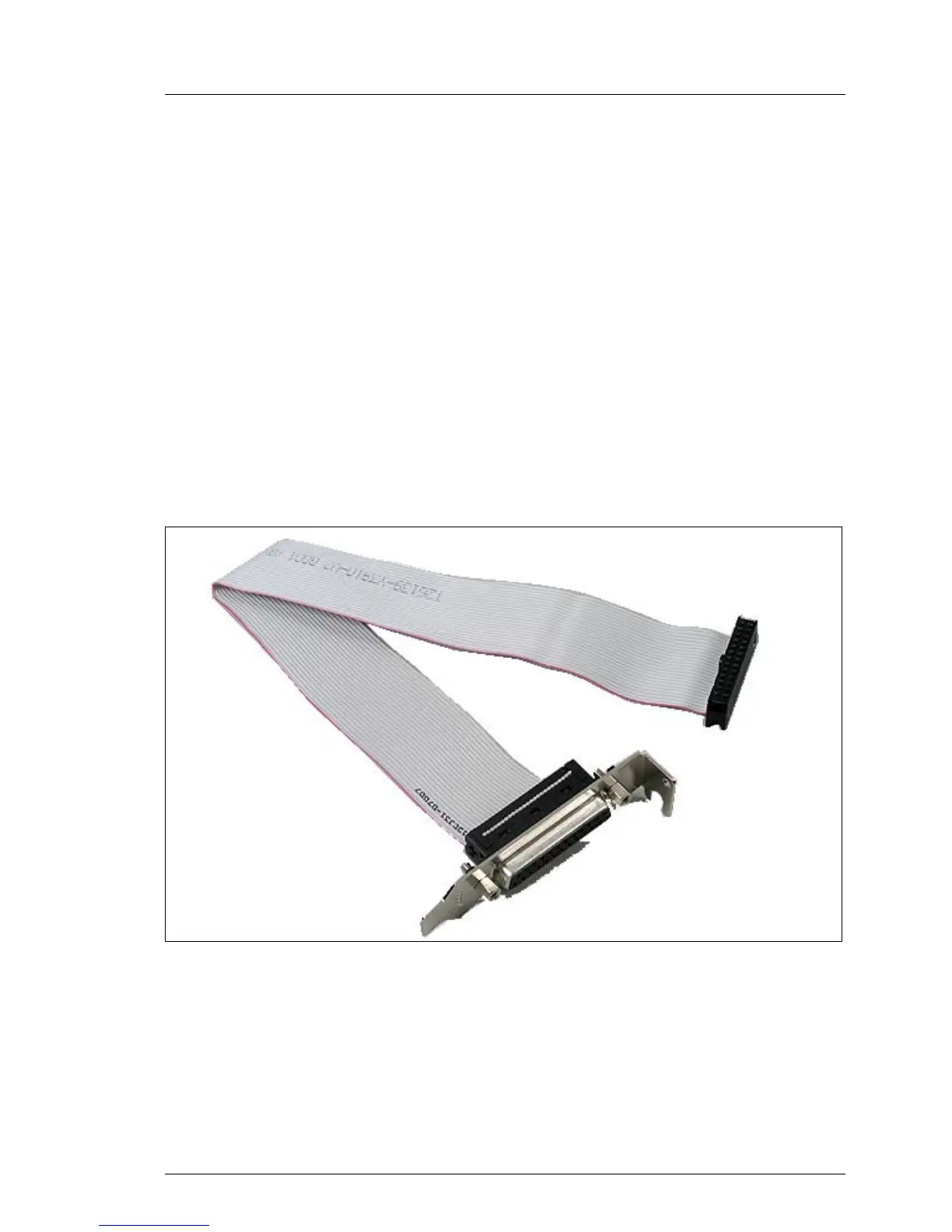

Figure 64: external parallel interface with low-profile slot cover
Ê Remove slot cover of slot 7 (see “Remove the slot cover” on page 65).
