48 Options Guide RX300 S4
Installing a LocalView module Accessible drives

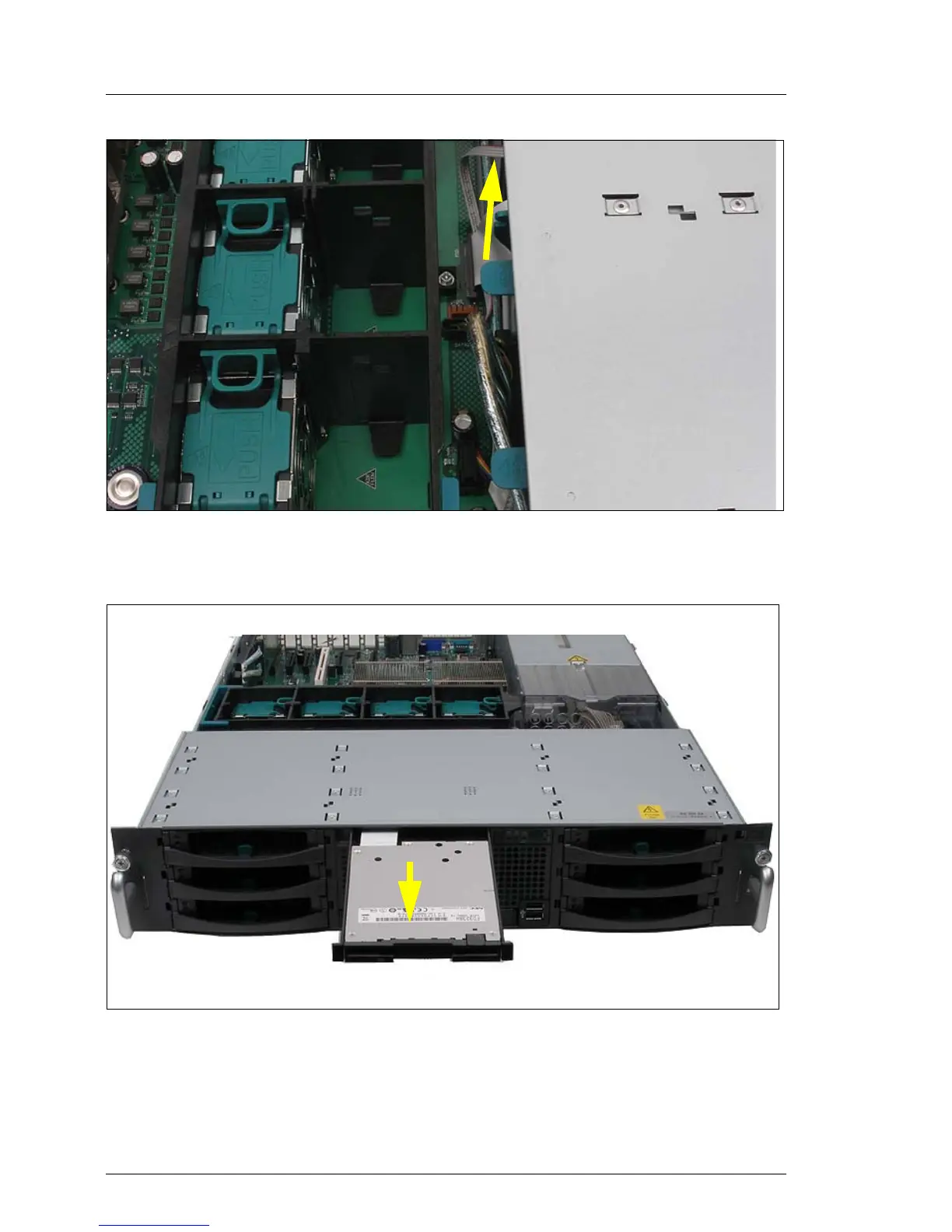

Figure 27: unlocking of the FD cable
Ê Remove the FD drive cable from the system board.
Figure 28: Removing FD drive module
Ê Pull the FD drive module out to the front side.
