122 Operating Manual RX600 S6
CSS components
© cognitas. Gesellschft für Technik-Dokumentation mbH 2011 Pfad: C:\Programme\FCT\tim_app\tim_local\work\PICHOL\OBJ_DOKU-11942-001.fm

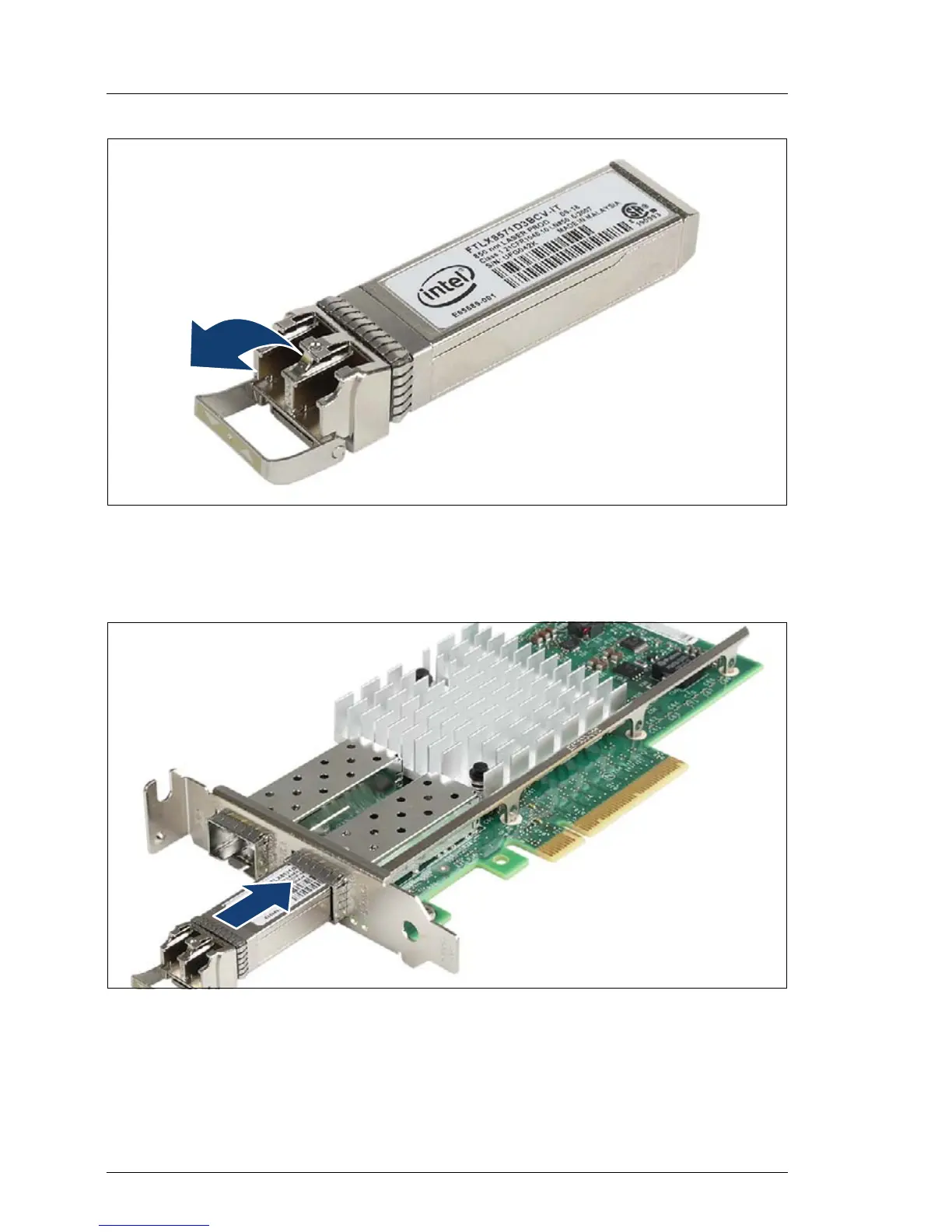

Figure 39: Unlatching the locking bail
Ê Carefully unlatch and fold down the locking bail on the SFP+ transceiver
module.
Figure 40: Inserting the SFP+ transreiver
Ê Insert and slide the SFP+ transceiver module into the socket connector as
far as it will go.
I If only one slot is equipped with a SFP+ transceiver module, use the
primary right connector as shown.
