Fujitsu PRIMERGY TX150 S3 User Manual

U41604-Z156-1-76 Options Guide 17
Preparation Rack model

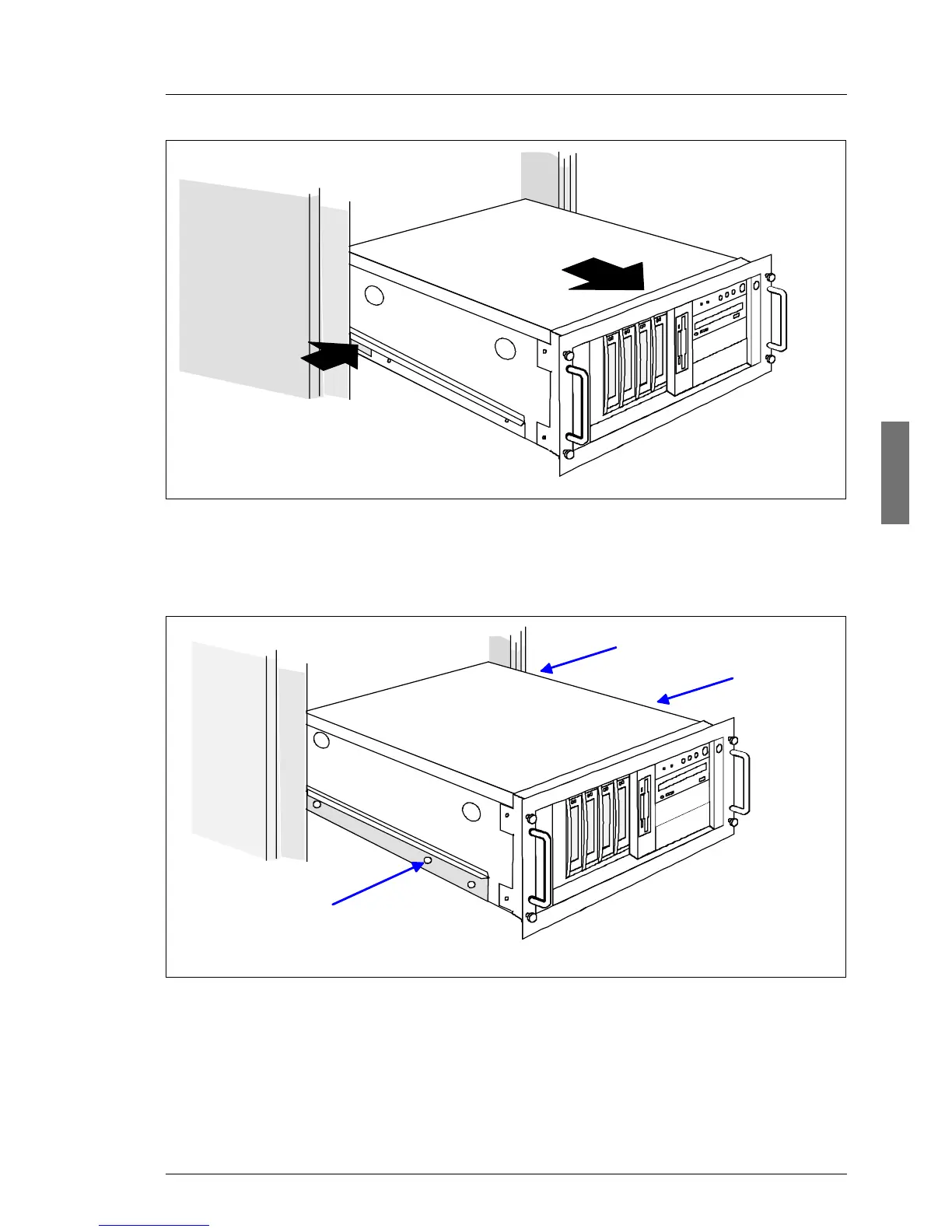

Figure 7: Loosening the locking spring
Ê Press in the locking spring (1) on both sides and carefully pull the server
outward (2).
Figure 8: Removing the server from the rack cabinet
Ê Disconnect all cables on the rear of the server.
Ê Remove the telescopic rails on the left and right side (three screws).
1
2
2
