18 Options Guide U41604-Z156-1-76
Rack model Preparation
V CAUTION!
At least two people are needed to lift the server out of the rack cabinet.
Ê Lift the server out of the rails and place it on a table, for example.

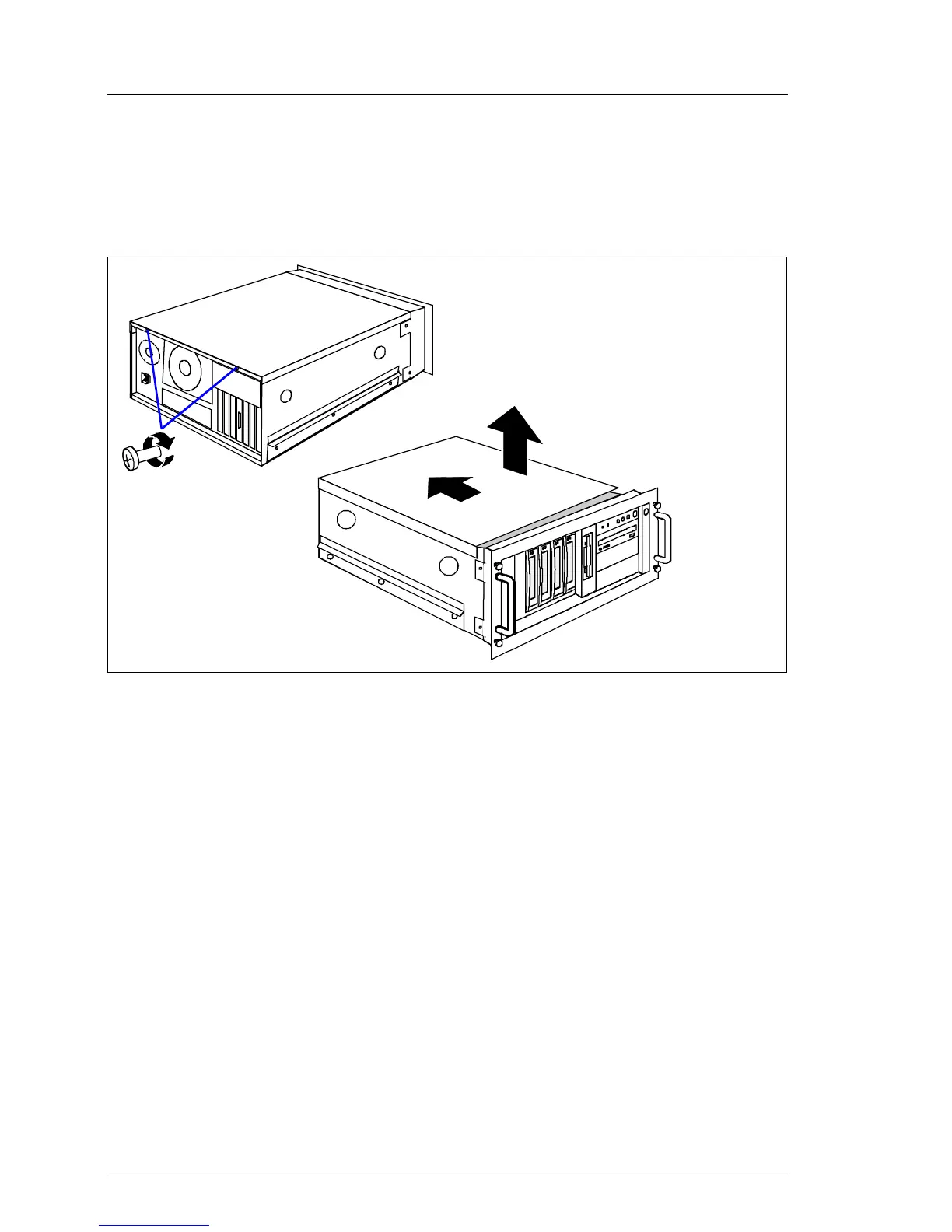

Figure 9: Loosening the screws
Ê Unlock the top cover by removing the two screws at the rear side (1).
Ê Push back the top cover approxiate 2 cm (2).
Ê Remove the top cover (3).
2
3
1
2
