Fujitsu PRIMERGY TX150 S3 - Installing Hot-Plug Power Supply Components

U41604-Z156-1-76 Options Guide 43
Conversion standard PS to hot-plug PS

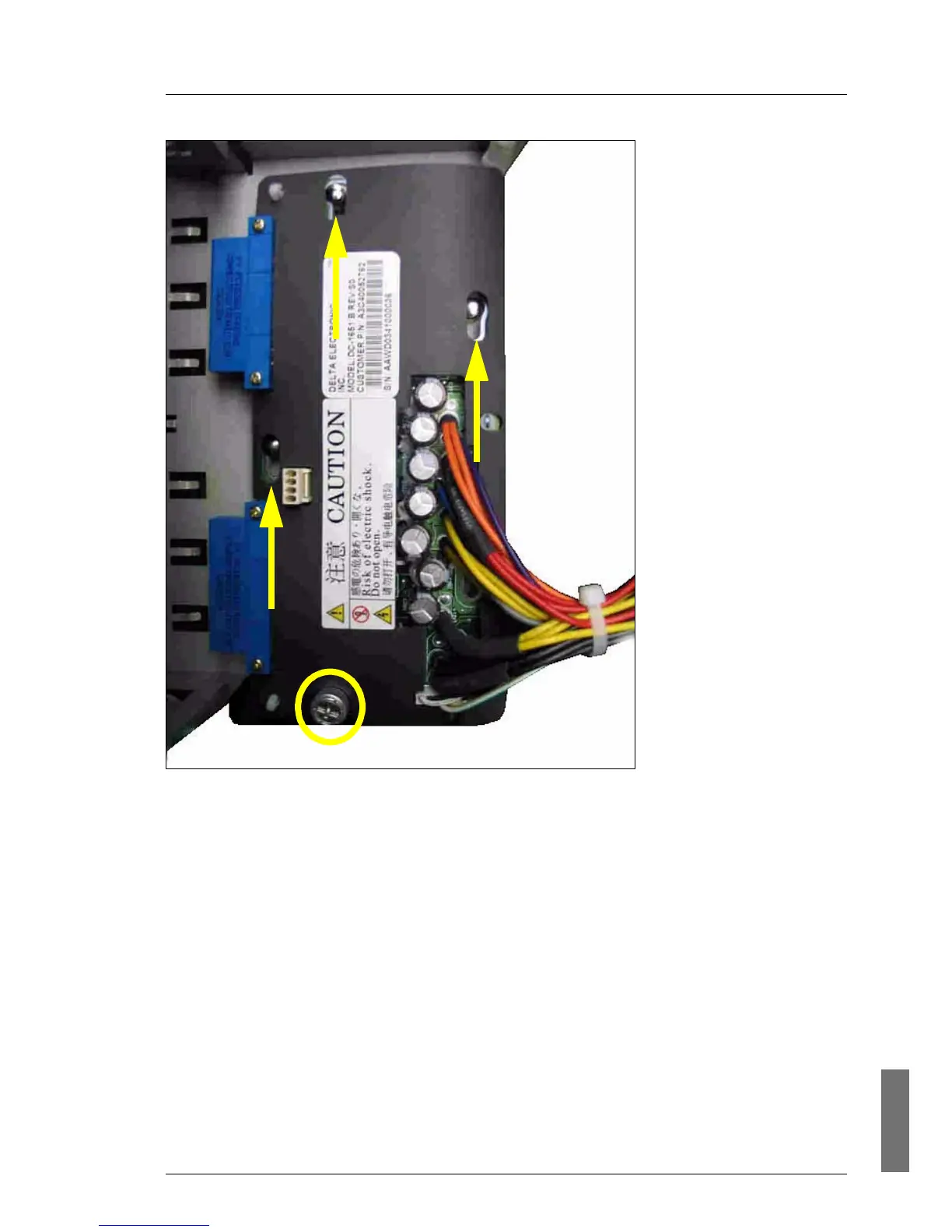

Figure 31: Installing the Power backplane in the PS cage
Ê Insert the Power backplane in the PS cage.
Ê Push the Power backplane in direction of the arrows until the three bolts of
the PS cage engage.
Ê Fasten the Power backplane with one knurled screw (see the circle).
