44 Options Guide U41604-Z156-1-76
Conversion standard PS to hot-plug PS

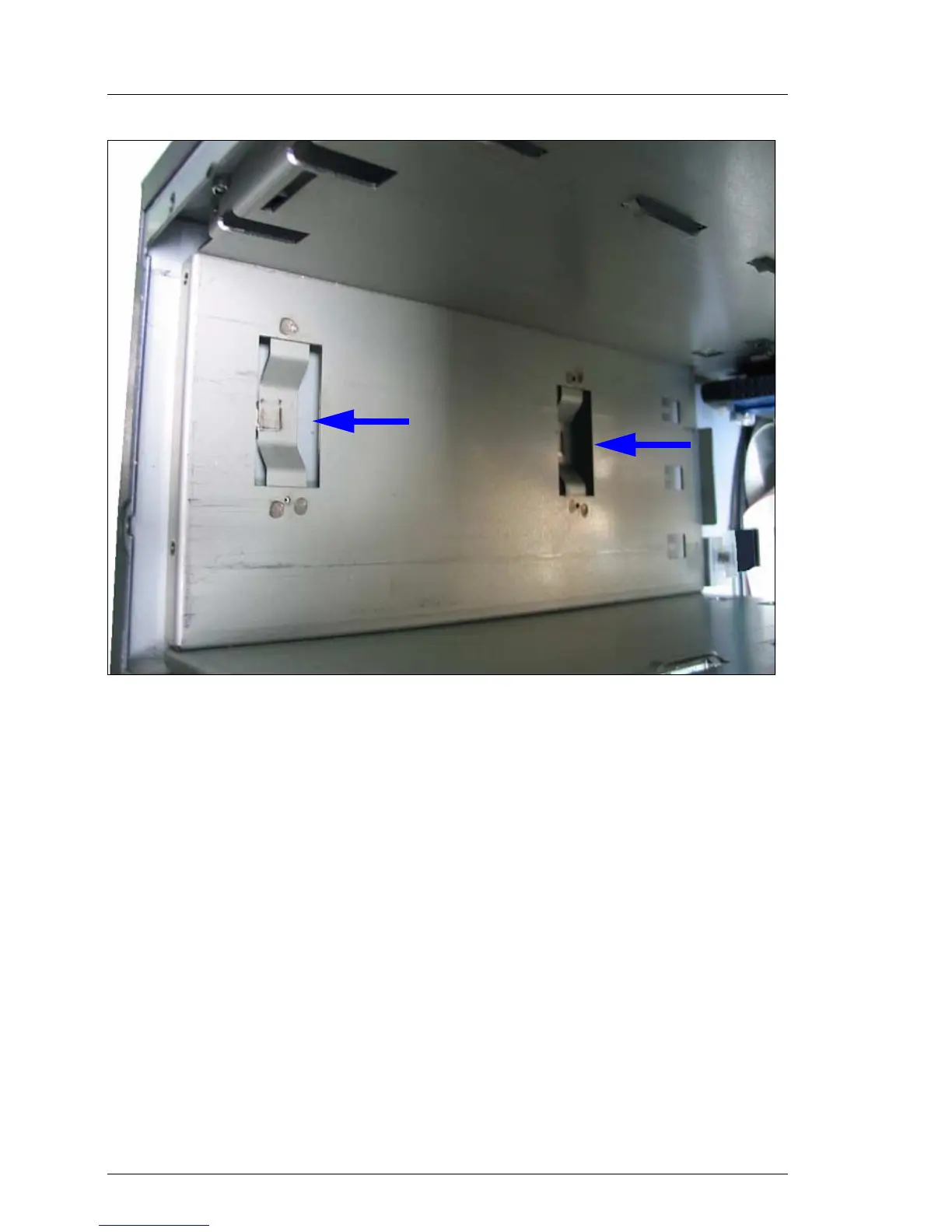

Figure 32: Installing the PS cage
Ê Push the PS cage from inside into the bay. In the floorstand model the Power
backplane is positioned under the top cover, and in the rack model at the
right-hand side cover (seen from front side).
V CAUTION!
Make sure that the two noses of the PS cage (see the arrows) engage in
the housing. Ensure that no damage is caused to the cables.
