46 Options Guide U41604-Z156-1-76
Conversion standard PS to hot-plug PS

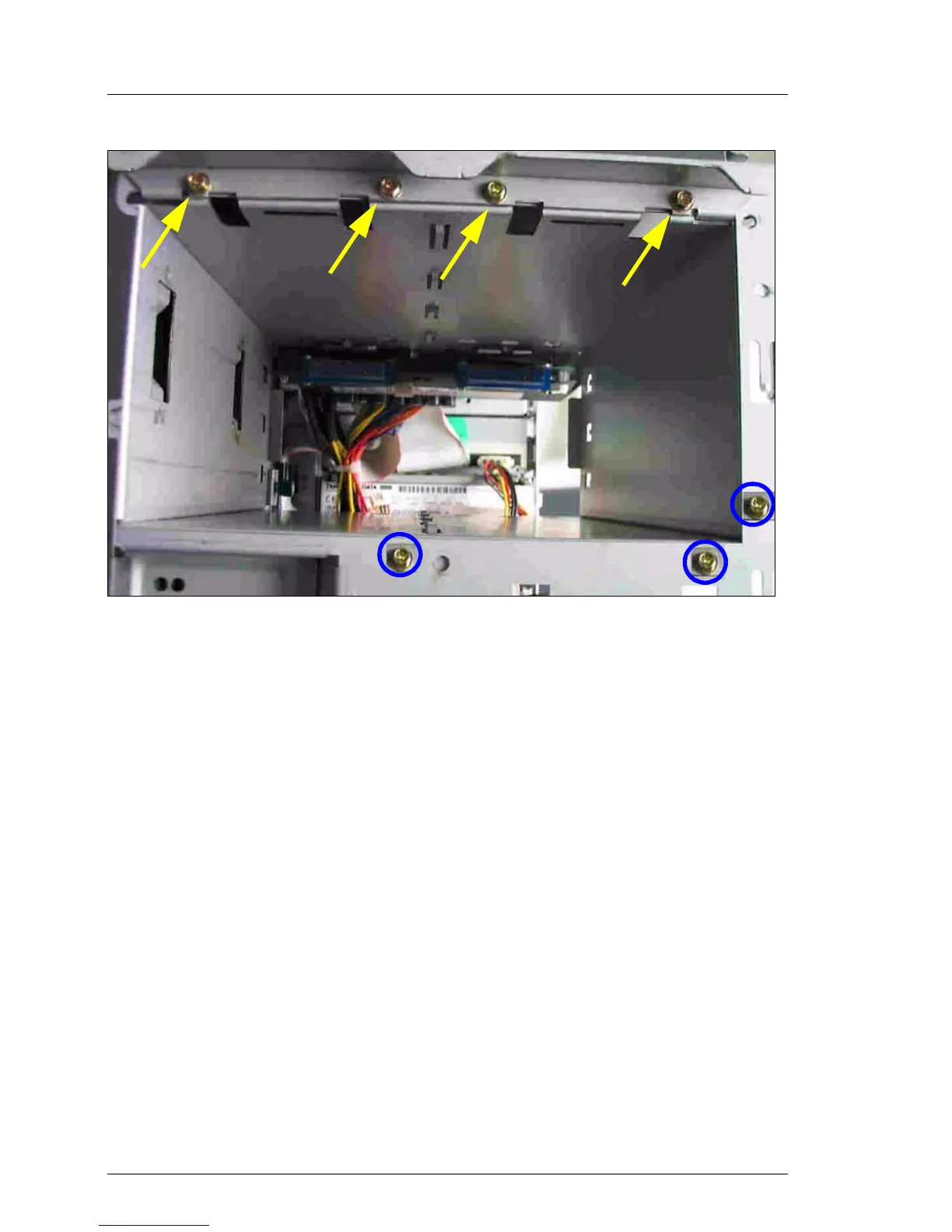

Figure 34: Fastening the PS cage at the rear side
Ê Fix the locking rail with four screws (see the arrows) on the rear side of the
server..
Ê Fasten the PS cage with three screws M3x4.5 mm (see the circles) at the
rear side.
Ê Connect all power cables to the system board and the drives (see the cabling
plans in the Appendix).
