U41604-Z156-1-76 Options Guide 47
Conversion standard PS to hot-plug PS

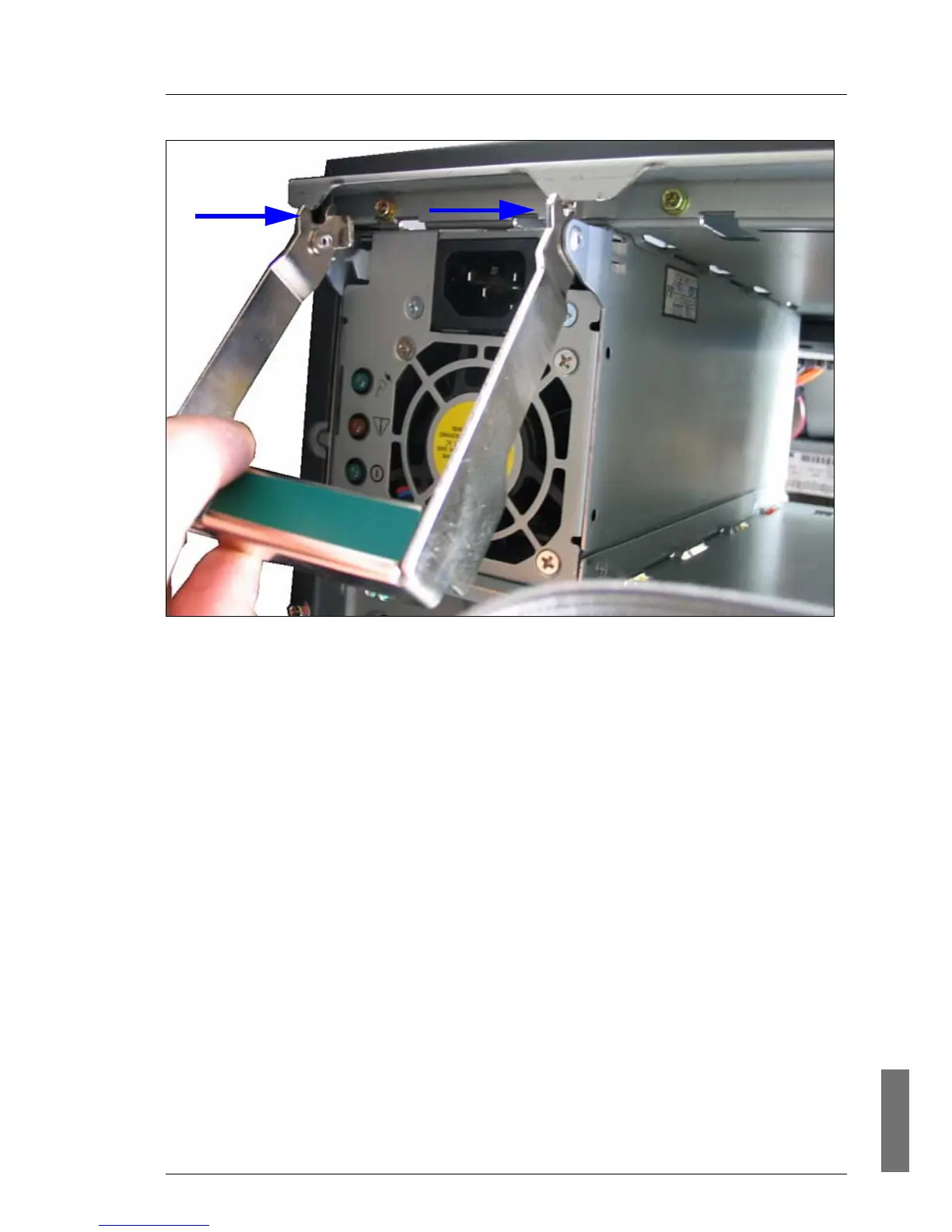

Figure 35: Inserting the power supply module
Ê Push the power supply module in the left side (floorstand model) or bottom
side (rack model) bay.
Ê Lift the green handle somewhat upwards so that the forked levers (see the
arrows) can fit to the locking rail.
