Fujitsu PRIMERGY TX150 S4

78 Options Guide U41629-J-Z156-2-76
Cabling Appendix

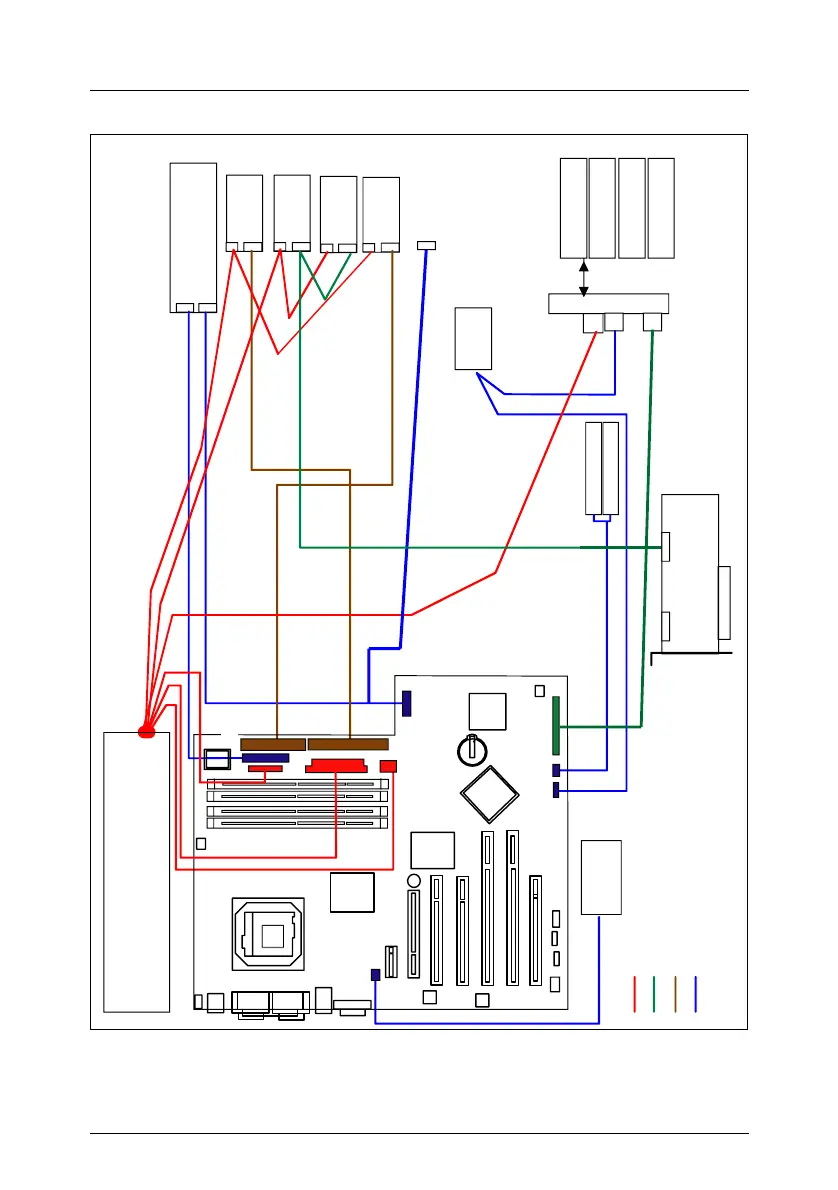

Figure 56: Cabling with additional SCSI controller for backup devices
Cabel : T26139-
SCSI IDE/FD Data
SCSI ba ckplane 1-
Floppy
Floppy
USB
IDTEMP
Y1248-V8
Y3730-V502
Y3736-V1
Y3718-V508
Y3728-V1
P1
P9
P2
P4
P3
P5
P6
X6
X7 X5
SCSI
controller
CD/DVD
Y3785-V208
Y3904-V101
Y2603-V7
P8
System fan
Legend:
prefix
channel
Operating panel
Tape
Tape
Intrusion sw Intrusion sw
SCSI HD ID3
1" HDD
SCSI HD ID2 SCSI HD ID1 SCSI HD ID0
Power supply
Power
USB-B for tapes
Y3859-V11
