Fujitsu PRIMERGY TX150 S6 Service Supplement

TX150 S6 Service Supplement 27
Replacement routines Replacing the IDTEMP combo

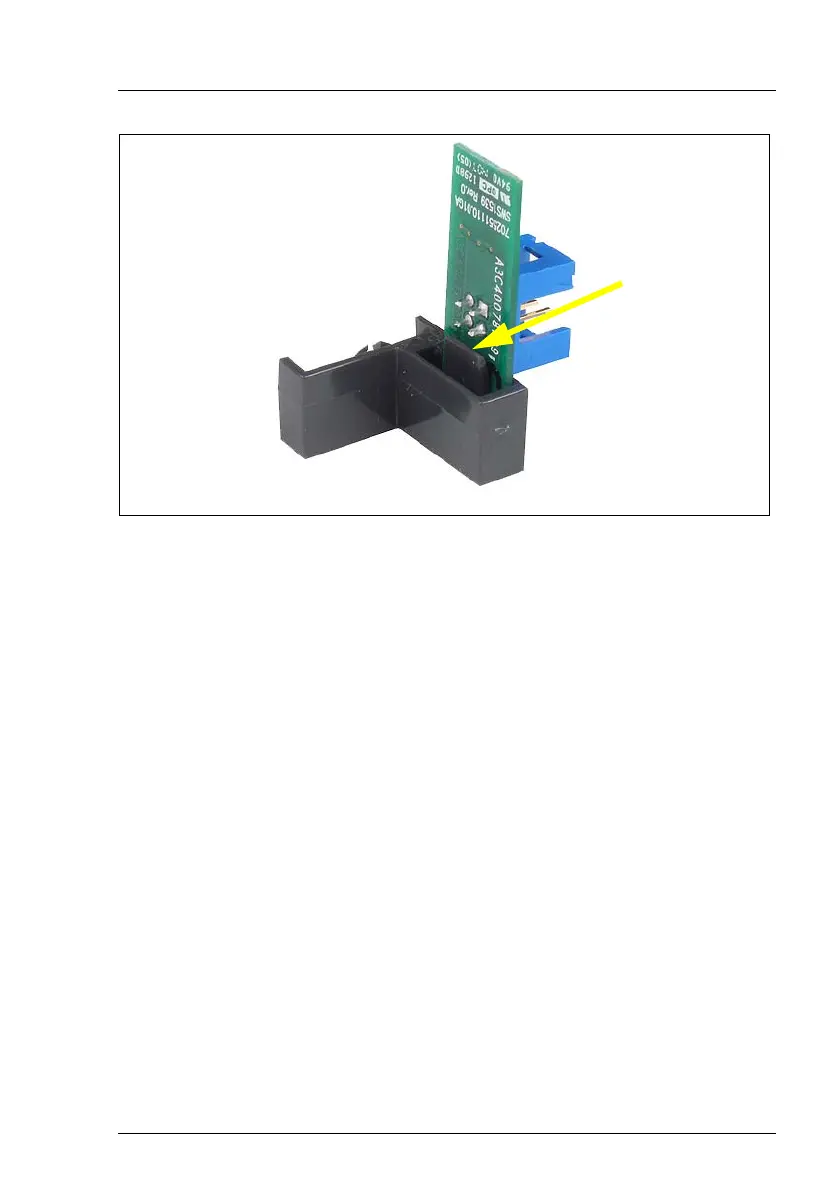

Figure 9: Removing the IDTEMP combo
Ê Pull up the locking tab and remove the IDTEMP combo from the holder.
Ê Plug the new IDTEMP combo in the holder.
Ê Plug the I
2
C cable on the connector on the IDTEMP combo.
Ê Plug the green cable clamp on the connector of the I
2
C cable.
Ê Insert the holder in a slight angle.
