20 Service Supplement TX150 S6
Replacing the standard PS Replacement routines
Ê Push the new operating panel module into its bay as far as it is possible to
have access to the cable tie.
Ê Thread the cables through the cable tie.
Ê Push the operating panel module into its bay as far as it is possible to plug
the cables.
Ê Connect the cables (ribbon cable, USB cable and perhaps ServerView Local
Service Panel cable) to the operating panel board (see the board layout on
page 39).
Ê Push the operating panel module into the housing until it engages.
Ê Close the server and connect all power plugs (for a detailed description see
the Options Guide).
4.3 Replacing the standard PS
Ê Open the server as described in the section “Preparation” on page 17.
I You can replace the power supply without removing the adapter plate.
Ê Disconnect all power cables from the system board and the drives (see the
cabling plans in the Options Guide).

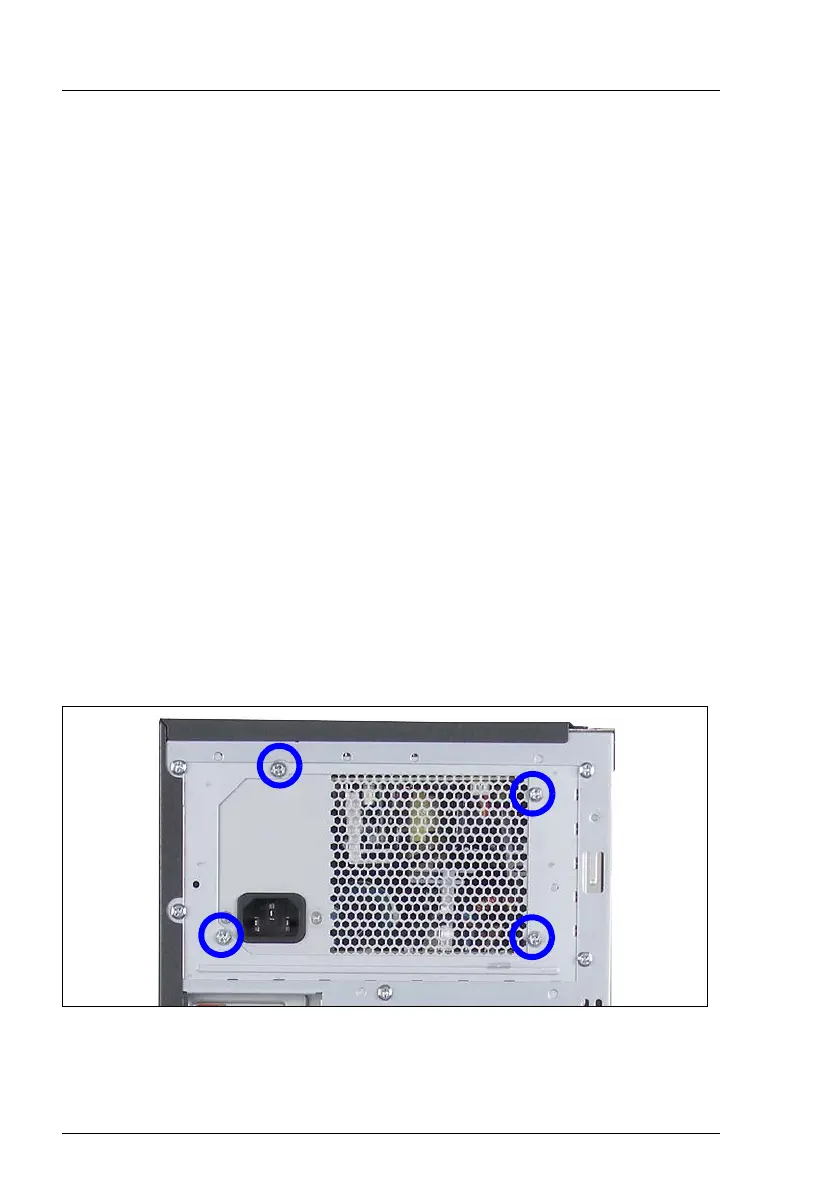

Figure 3: Removing the screws
Ê Remove the four screws of the standard power supply (see the circles).
