TX150 S6 Service Supplement 39
5 Appendix
5.1 Board layout
I The board layout of the system board is described in the Technical
Manual of the system board D2559.

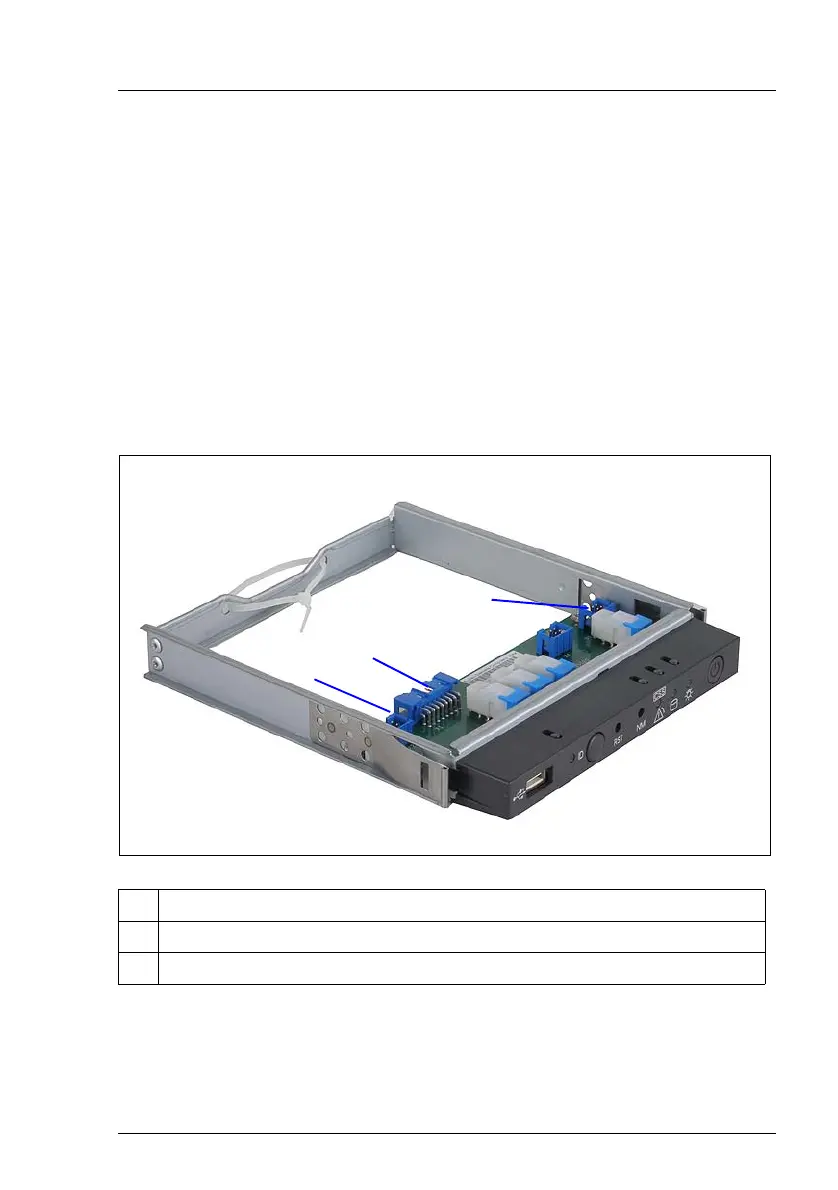

5.1.1 Operating panel board
Part number: A3C40088485
I The operating panel board is included in the spare part “operating panel
module“ (C26361-K644-Z333).
1 Connector USB cable
2 Connector operating panel cable
3 Connector LSP (CSS module)
1
2
3
