110 Operating Manual TX150 S7
Non-hot-plug components CSS components
8.2.4.2 Installing a new expansion card

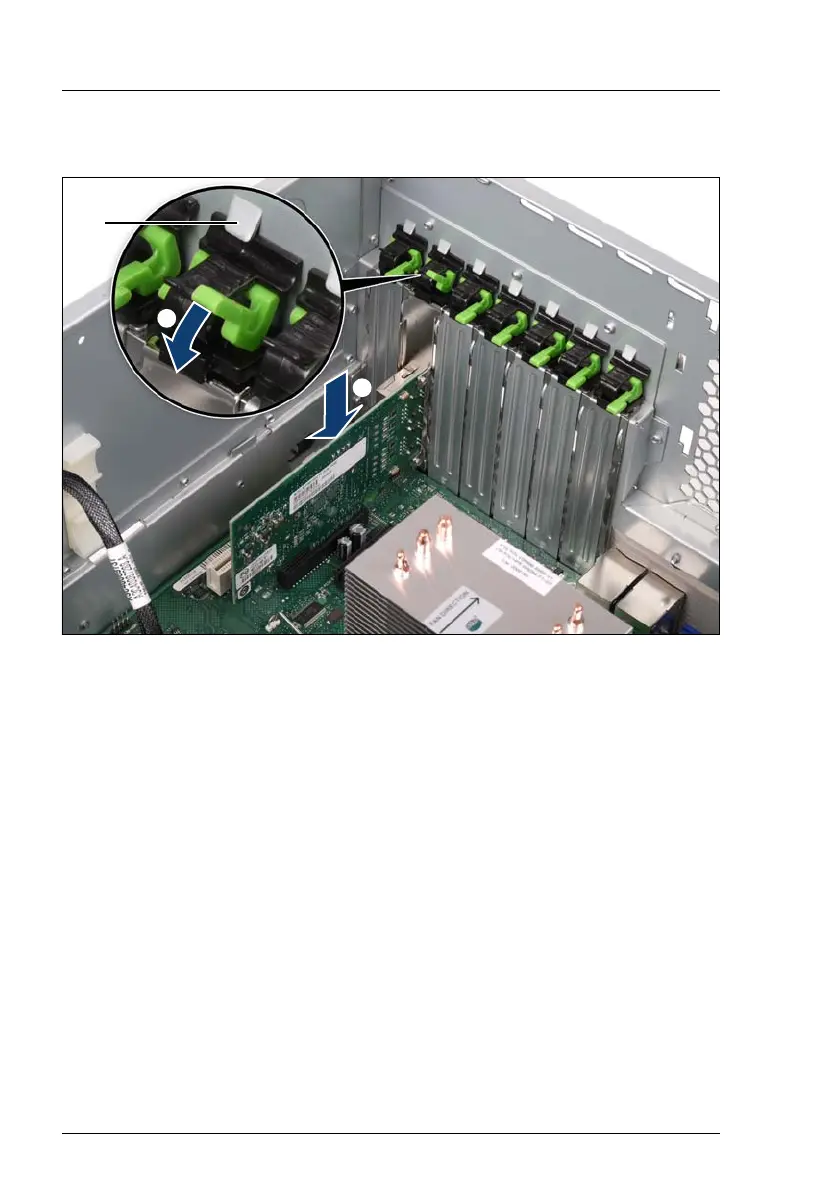

Figure 32: Installing a new expansion card
Ê Carefully press the new expansion card into the slot until it clicks into
place (1).
Make sure that the lug on the slot cover clicks into place in the
corresponding hole.
Ê Fit the clip onto the slot cover so that the pin fits into the hole.
Ê Push the clip under the metal nose (2) until it clicks into place.
Ê Swing the lever (3) downward into its locking position.
Ê If necessary, connect the cables to the expansion card.
