TX200 S6 Service Supplement 47
Replacing the system board

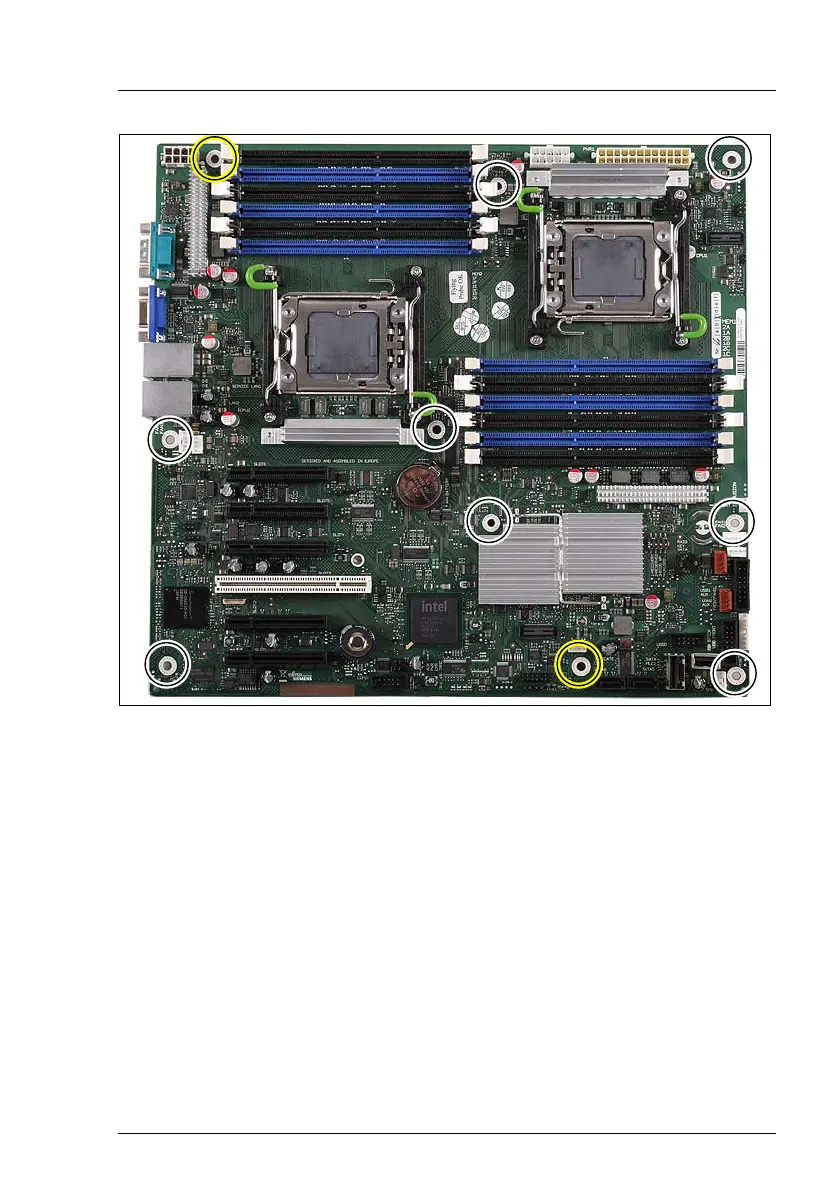

Figure 26: Position of the screws
Ê Remove the ten screws from the system board.
Ê Lift the system board slightly using the socket of PCI slot 5, thereby you lift
the system board out of the centre rings of the spacer bolts.
Ê Carefully lift the system board out of the housing in a slight angle. Thereby
you pull the connectors out of the connector panel.
Ê Verify the settings on the new system board (for a description see the
Technical Manual of the system board).
Ê Remove the processor(s) from the defective system board and insert this
processor(s) in the new system board (description see the Options Guide).
