ADF Paper Chute (Cover)
ADF Release Tab
ADF Top Section

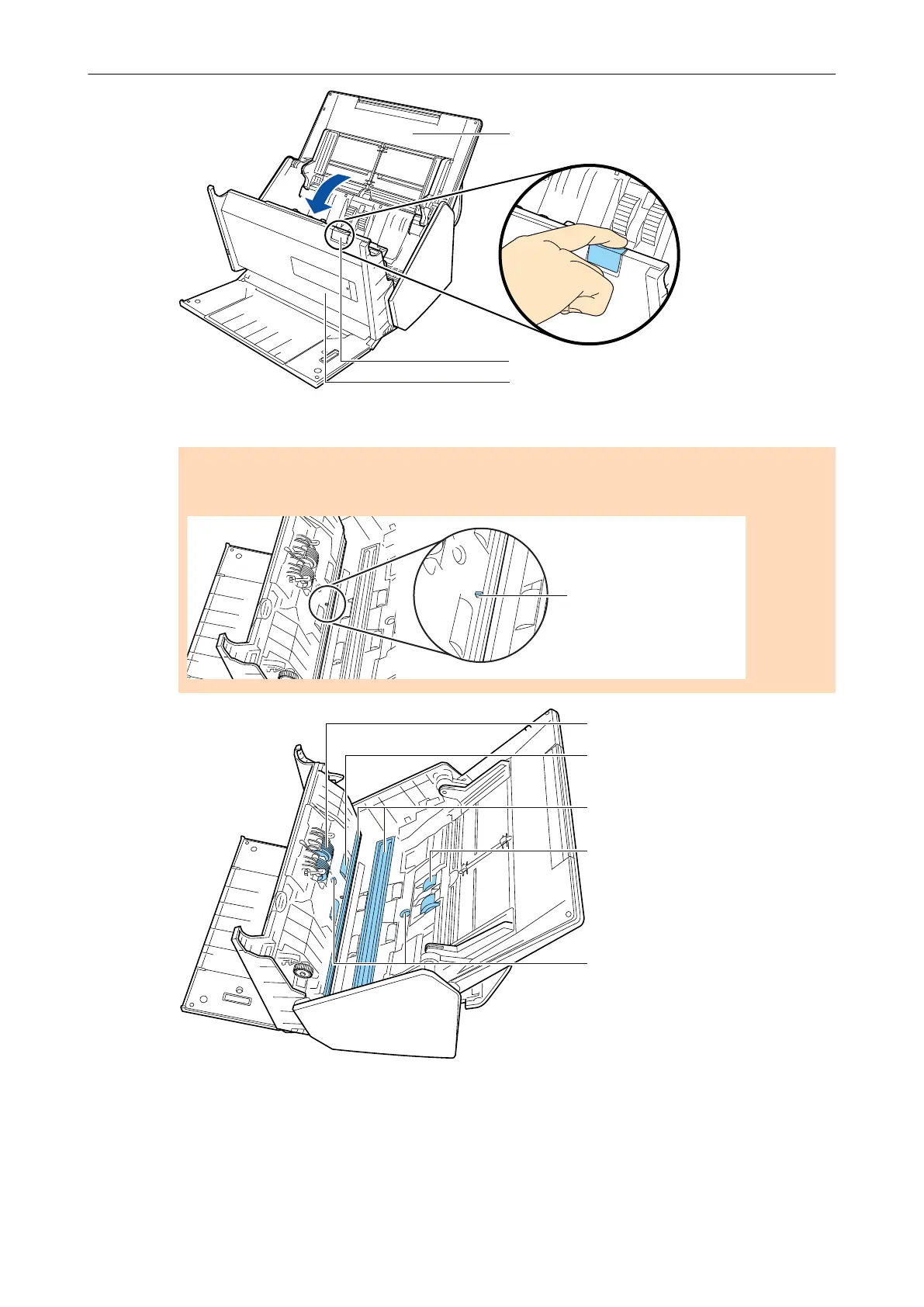

3. Clean the following locations with a cloth moistened with Cleaner F1.
ATTENTION
When cleaning, be careful not to damage the document sensor with a cloth.
Brake Roller (x2)
Pick Roller (x2)
Ultrasonic Sensor (x2)
Scan Glass (x2)
Idler Roller (x4)
l Brake roller (× 2)
Remove the brake rollers from the ScanSnap to clean them.
For details about how to remove the brake rollers, refer to "Replacing Consumables"
(page 128).
Gently wipe off the dirt and dust along the grooves on the roller surface. Be careful not
to damage the surface of the rollers.
