Fujitsu ScanSnap iX500

Replacing Consumables
The Roller Set consists of the brake roller and pick roller.
Replace each roller in the following procedure:
1. Unplug the power cable from the AC outlet.
2. Remove any documents from the ADF paper chute (cover).

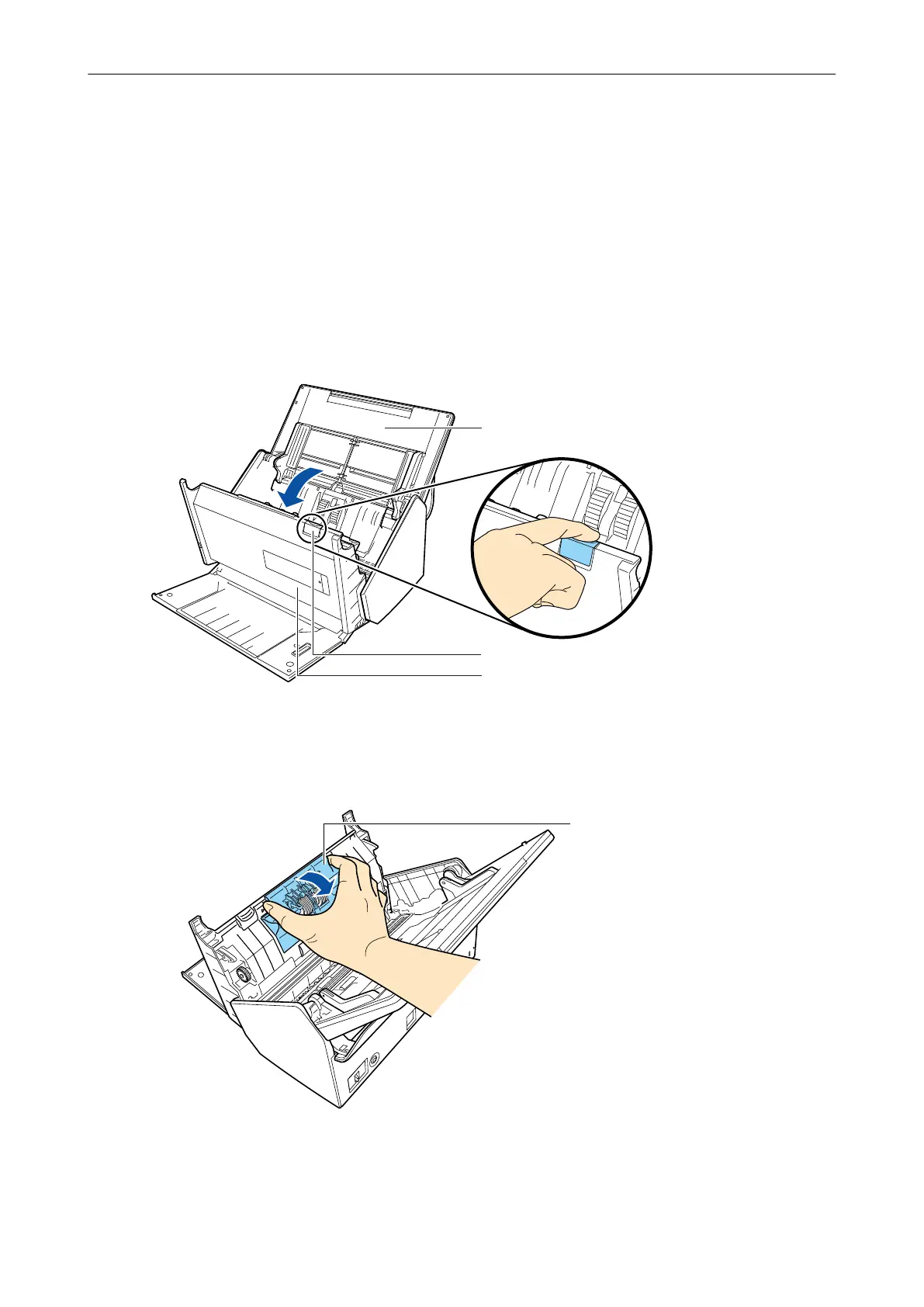

3. Pull the ADF release tab to open the ADF top section.
ADF Paper Chute (Cover)
ADF Release Tab
ADF Top Section
4. Replace the brake roller.
1. Open the brake roller cover.
By holding the both ends of the brake roller cover, open it in the direction of the arrow.
Cover
2. Remove the shaft of the brake roller from the ScanSnap.
Lift the brake roller to remove the right side of the shaft, and then pull out the shaft from the
hole on the left.
