7.3 Replacing the Pick Roller
ScanSnap S500M Operator's Guide 105
Replacing Consumables
7

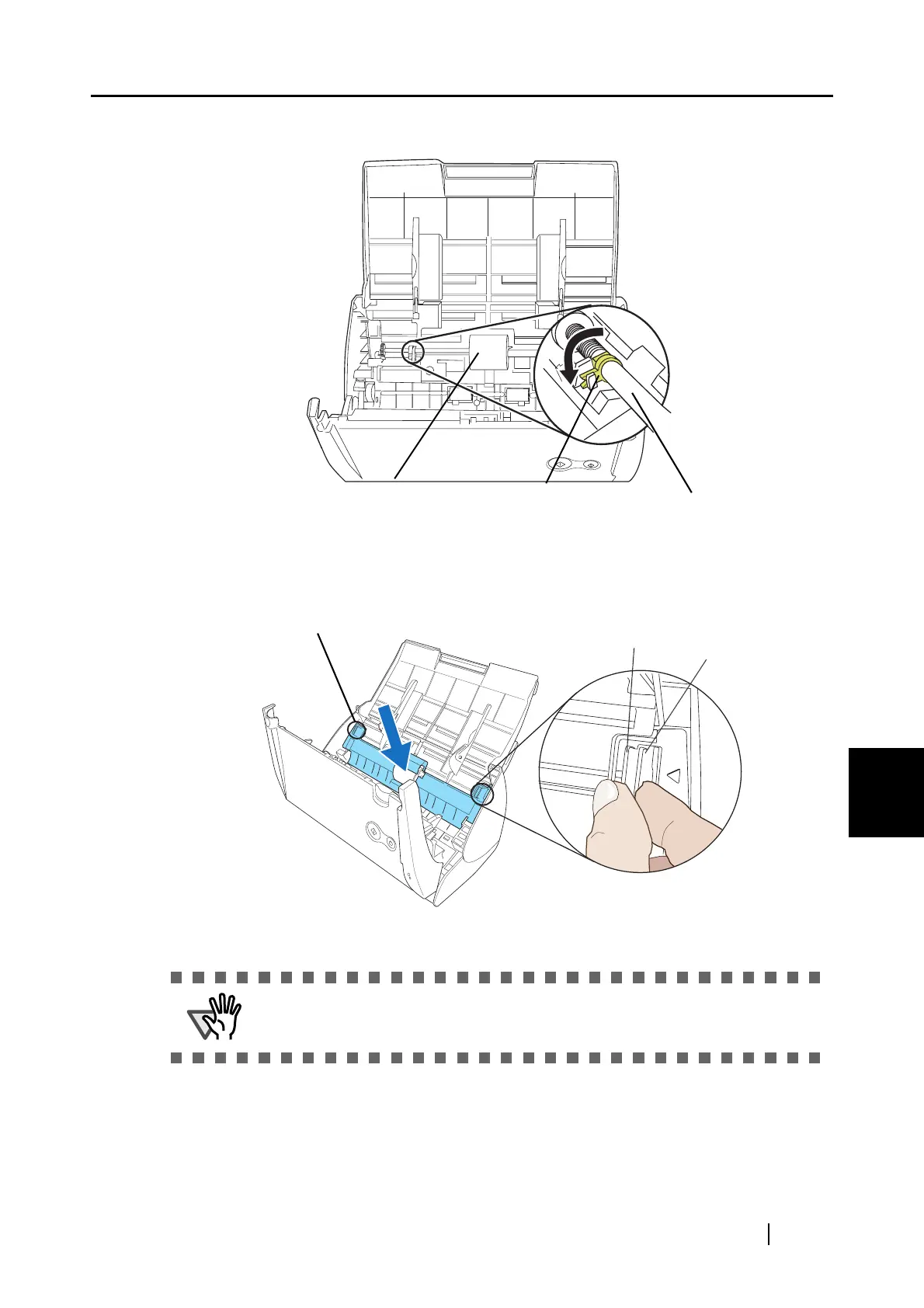

10. Rotate the roller bushing (on the left) by rotating it as shown below.
11. Attach the sheet guide to the scanner.
Pinch the handles on both sides of the sheet guide and attach it to the scanner.
⇒ The sheet guide makes a clicking sound when the claws settle into position.
ATTENTION
Make sure that the sheet guide is fully attached. Otherwise, document jams or
other feeding errors may occur.
Pick roller shaft
Pick roller bushing
Pick roller
Sheet guide
Handle
Claw
