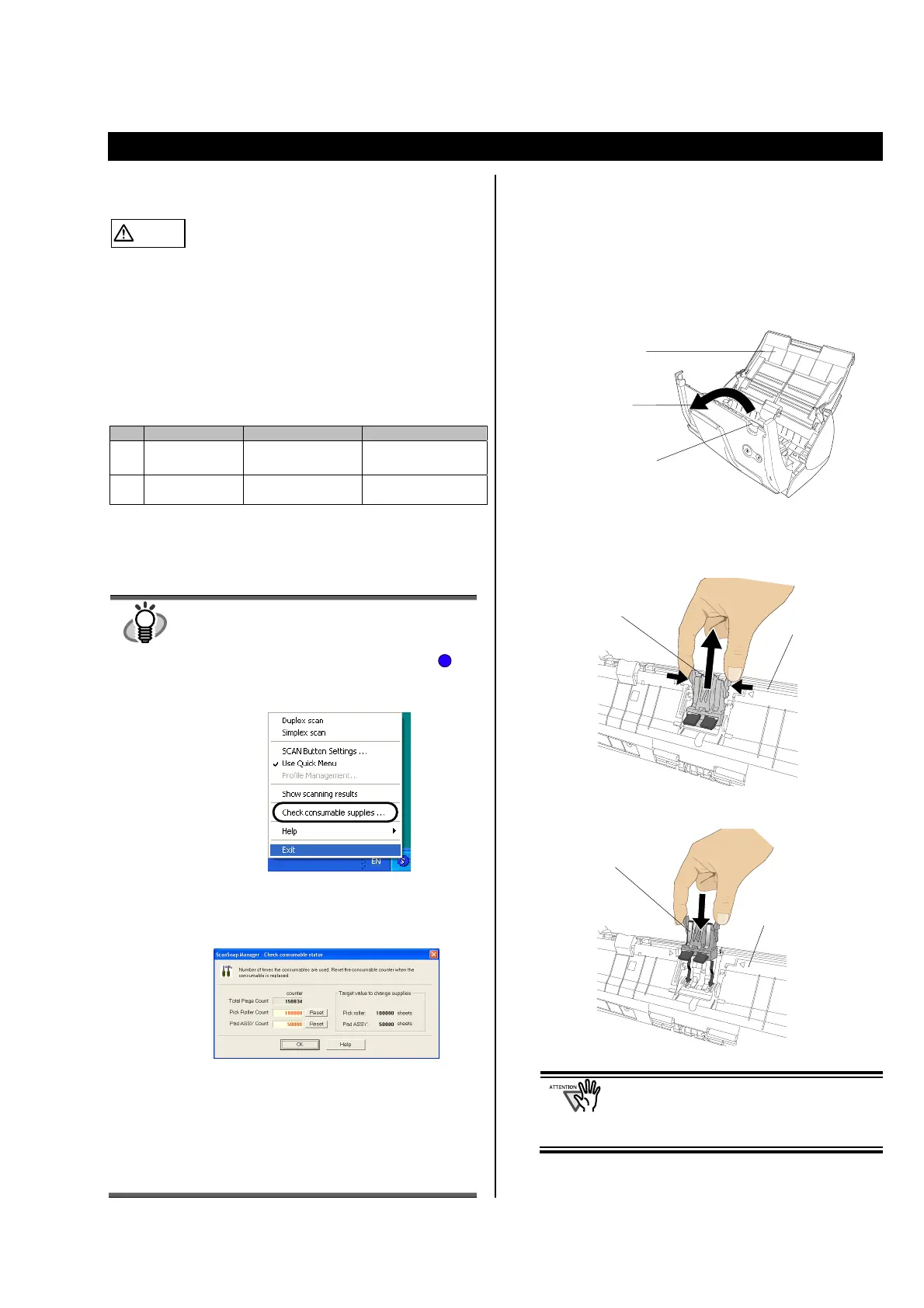

6. Consumables/Carrier Sheet
This chapter describes how to replace and purchase
consumables and regular replacement parts.
WARNING
Fire/Electric Shock
Before you replace the consumables, disconnect the AC
adapter from the power outlet to turn off the scanner.
6.1. Part Numbers and Replacement
Cycle of Consumables
The following table lists the part numbers of consumables
and shows rough guidelines for replacing these parts.
No. Description P/N Replacement Cycle
1
Pad ASSY PA03360-0002
50,000 scan or one
year
2
Pick roller PA03360-0001
100,000 scans or
one year
These replacement cycles are rough guidelines when
A4/Letter wood-free paper 64 g/m
2
(17 lb) is used. The
actual cycle may differ depending on the scanned paper.
Use only the consumables specified by PFU LIMITED.
HINT
To estimate when the consumables will have
to be replaced and to get an overlook of the
already scanned pages, refer to the following:
1. Right-click the "ScanSnap Manager" icon
on the task bar.
2. Click [Check consumable supplies] at the menu.
(The window ("Check consumable status"
screen) that indicates how many times
consumables have been used will be
displayed.
Replace the consumables referring to "Target
value to change supplies" as a rough
guideline.
For details about consumables and where to
purchase them, visit the following Website or
contact the Fujitsu scanner dealer where you
purchased your scanner.
[Website] http://scansnap.fujitsu.com/
6.2. Replacing the Pad ASSY
Replace the Pad ASSY following the procedure below.
1. Remove the documents on the Paper chute.
2. Open the ADF while pulling the Cover open lever.
3. Remove the Pad ASSY.
Pull out the Pad ASSY in the direction of the arrow
while pinching both ends of the Pad ASSY.
4. Attach the new Pad ASSY.
Make sure that the Pad ASSY is
completely attached. Otherwise,
document jams or other feeding errors
may occur.
Pad ASSY
ADF
Pad ASSY
ADF
S
ADF
Paper chute
Cover open lever

Fujitsu ScanSnap S510 Specifications

General

Film scanning	No
Color scanning	Yes
Input color depth	- bit
Maximum scan size	216 x 356 mm
Scanner type	Sheet-fed scanner
Sensor type	CCD
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	50 sheets
USB version	2.0
Standard interfaces	USB 2.0
Minimum storage drive space	512 MB
Minimum system requirements	Windows 2000/ XP/ Vista
Sustainability certificates	ENERGY STAR
Power requirements	AC 100V to 240V, 50 / 60 Hz
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	RoHS

Weight and Dimensions

Weight	2700 g
