Fujitsu ScanSnap S510 Getting Started Guide

6
1. Preparation
This chapter describes necessary preparations before using
ScanSnap.
Do not connect the scanner to your PC
before installing "ScanSnap Manager".
If the scanner is connected before installing
ScanSnap Manager, it will not operate
correctly.
Refer to Chapter 2 for the installation of
ScanSnap Manager.
1.1. Checking the Contents of the
Package
When you unpack the scanner package, make sure that all
parts are included.
Refer to the package contents list included in the scanner
package box.
1.2. Names and Functions of Parts
This section describes the names and functions of parts.

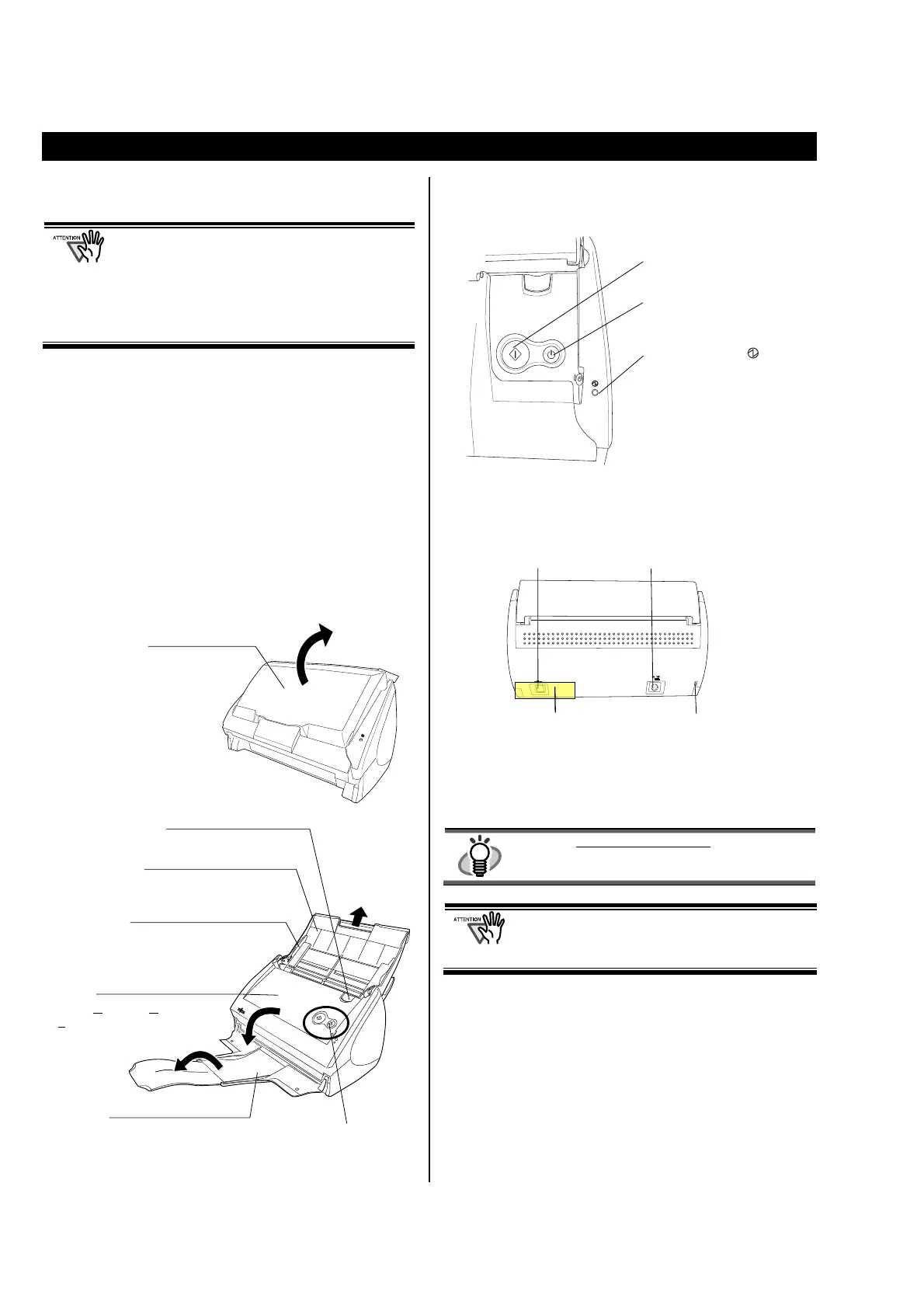

 Front View
 Operation Buttons
 Rear View
HINT
For the Document Specification, refer to the
“ScanSnap S510 Operator’s Guide” stored in
ScanSnap Setup CD-ROM.
The scanner is turned on/off automatically, when
you open/close the Paper chute cover.
To turn off the scanner when the cover is opened,
press the [POWER] button.
[SCAN] button
Starts scanning.
[POWER] button
Turns on/off the power supply.
Power Indicator
Indicates the scanner status of
the power supply to the
scanner.
Blue (Solid): Ready
Blue (Blinking): Scanning
Orange: Error
Light off: Power off
SCAN
POWER
Seal (reminds you that the
supplied software has to be
installed first): After installing
ScanSnap Manager onto your
computer, remove this seal to connect
the scanner to the PC.
AC adapter connector
USB connector
Security cable slot
Plug a commercially
available security cable
into this slot
(
anti-theft
)
Paper chute
Open this cover when using
the scanner.
 Opening the cover turns ON
the scanner.
Cover open lever
Pull this lever to open the ADF cover.
Paper chute
Open it and load the documents onto this
part when scanning documents.
Side guide
Adjust these guides to the documents
width for preventing skewed
ADF
(ADF: A
utomatic Document
F
eeder)
Stacker
For using this part, pull it out
as shown in the figure.
 Documents are ejected from the ADF onto this tray.
Operation Buttons

Fujitsu ScanSnap S510 Specifications

General

Film scanning	No
Color scanning	Yes
Input color depth	- bit
Maximum scan size	216 x 356 mm
Scanner type	Sheet-fed scanner
Sensor type	CCD
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	50 sheets
USB version	2.0
Standard interfaces	USB 2.0
Minimum storage drive space	512 MB
Minimum system requirements	Windows 2000/ XP/ Vista
Sustainability certificates	ENERGY STAR
Power requirements	AC 100V to 240V, 50 / 60 Hz
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	RoHS

Weight and Dimensions

Weight	2700 g
