3.2.1 Updating a hardware system
Updating a hardware system taking a management blade as an example

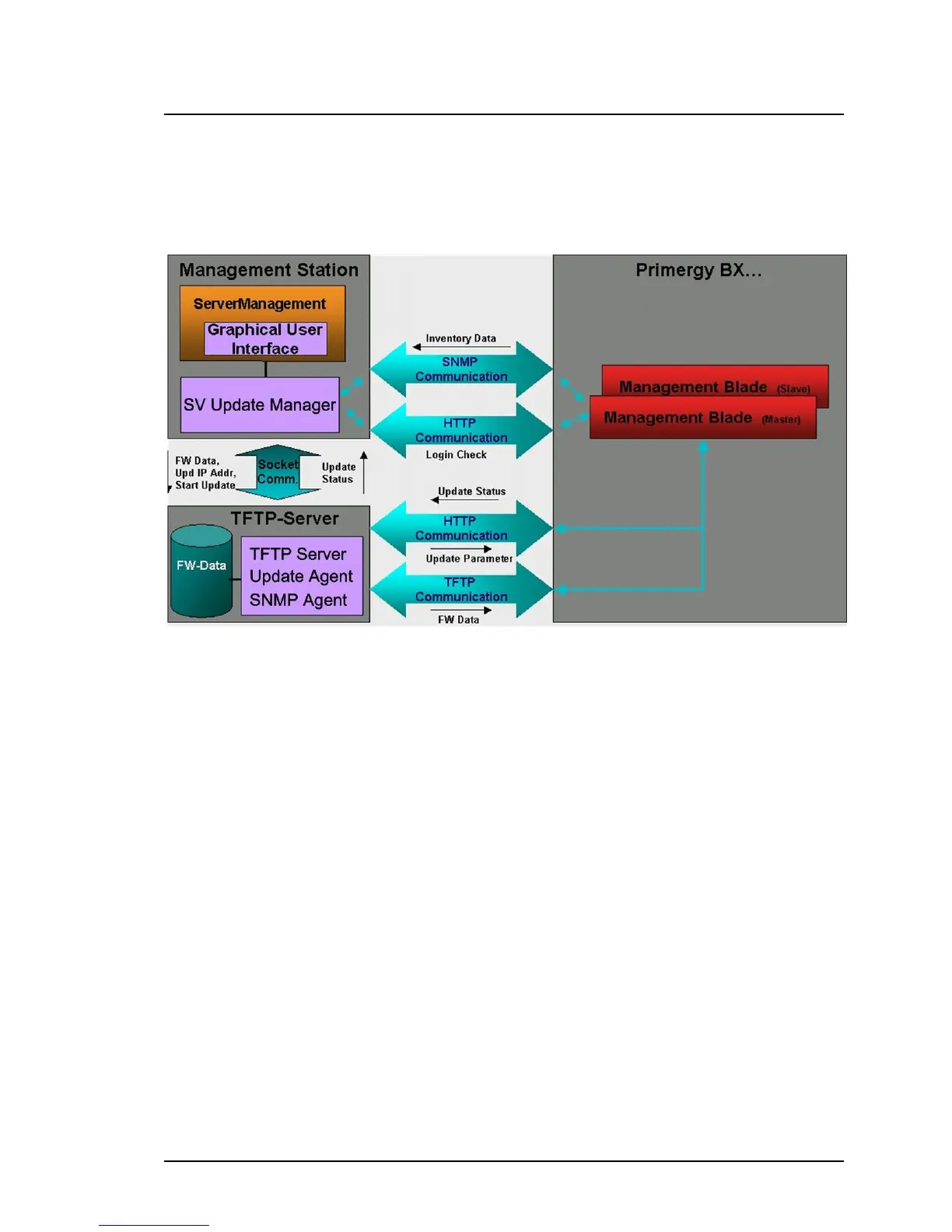

Figure 3: Diagram of the update procedure (management blade via TFTP
server)
1. The Inventory Manager on the management server uses SNMP com-
mands to fetch the required inventory data from the management blade.
When you are updating via the graphical user interface the data is pre-
sented on the graphical user interface.
2. The Update Manager compares the inventories entered in the database
with the software and firmware components in the repository. Based on
the differences arising from this comparison, it then creates a list of
components and servers that need updating.
3. Characteristics when using MMBs:
In the case of MMB BX600 S3: Communication is processed using
SNMP. No login is required.
ServerView Update Management 39
3.2 Update via TFTP server
