Fulton Vertical
MultiPort
Steam Boilers
(Low Emissions Burners)
(<20 PPM NOx)
Fulton Models: VMP40, VMP49.5, VMP50, VMP60,
VMP80, and VMP100
Product Data Submittal
Models VMP 40 49.5 50 60 80 100
Unit Size: BHP 40 49.5 50 60 80 100
A. Boiler Diameter IN 49 55 55 55 63 69
MM 1245 1397 1397 1397 1600 1753
B. Boiler Height IN 84 91 91 97 100 100
MM 2133 2312 2312 2464 2540 2540
C. Boiler Depth IN 90 100 100 100 114 119
MM 2286 2540 2540 2540 2896 3022
D. Boiler Height w/trim IN 107 112 112 118 124 126
MM 2718 2832 2832 2984 3150 3200
E. Overall Boiler Width IN 56 62 62 62 68 74
MM 1422 1575 1575 1575 1727 1880
F. Flue Outlet Diameter IN 12 12 12 12 14 14
MM 305 305 305 305 356 356
G. To Center of Flue Outlet IN 79 86 86 92 95 95
MM 2006 2184 2184 2237 2413 2413
H. Feedwater Inlet IN 35 35 35 35 35 35
MM 889 89 889 889 889 889
J. Blowdown Outlet IN 17 18 18 18 18 182
MM 432 457 457 457 457 457
K. Height to Steam Outlet
1
IN 73 77 77 84 89 89
MM 1854 4956 4956 2134 2260 2260
L. Min. Clearance to Ceiling IN 123 135 135 144 147 147
for Burner Removal MM 3124 3429 3429 3658 3734 3734
Specifications and Dimensions are approximate. We reserve the right to change specifications and/or dimensions.
NOTE: Minimum clearance is 24” to the side and back and 36” in front of the unit.
1. The boiler may be fitted with a 90
o
elbow spool piece making the steam outlet connection higher.

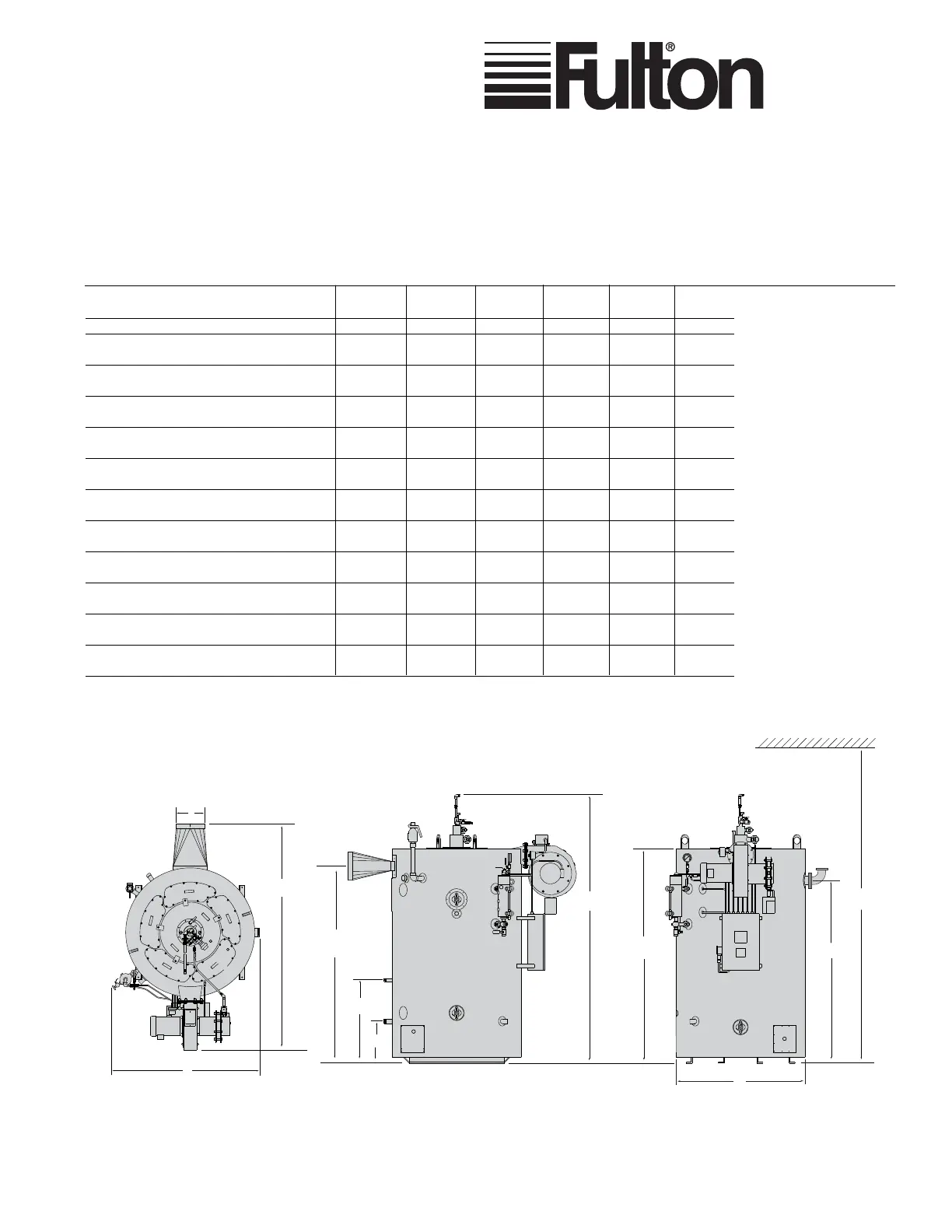

Dimensions
F
E
C
G
H
J
D
L
K
B
A
Top View
Side View
Front View
12 VMP IOM
