Fulton Vertical
MultiPort
Steam Boilers
(Low Emissions Burners)
(<30 PPM NOx)
Fulton Models: VMP130 and VMP150
Product Data Submittal
Models VMP 130 150
Unit Size: BHP 130 150
A. Boiler Diameter IN 76.5 76.5
MM 1943 1943
B. Boiler Height IN 115 115
MM 2921 2921
C. Boiler Depth IN 128 130
MM 3251 3302
D. Boiler Height w/trim IN 135 149
MM 3429 3785
E. Overall Boiler Width IN 84.5 84.5
MM 2146 2146
F. Flue Outlet Diameter IN 14 16
MM 356 407
G. To Center of Flue Outlet IN 107 107
MM 2718 2718
H. Feedwater Inlet IN 39 39
MM 991 991
J. Blowdown Outlet IN 22 22
MM 559 559
K. Height to Steam Outlet
1
IN 102 102
MM 2591 2591
L. Min. Clearance to Ceiling IN 155 155
for Burner Removal MM 3937 3937
M. Height to top of FGR Loop IN 121 121
MM 3073 3073
Specifications and Dimensions are approximate. We reserve the right to change
specifications and/or dimensions.
NOTE: Minimum clearance is 24” to the side and back and 36” in front of unit.
1. The boiler may be fitted with a 90
o
elbow spool piece making the steam outlet
connection higher.

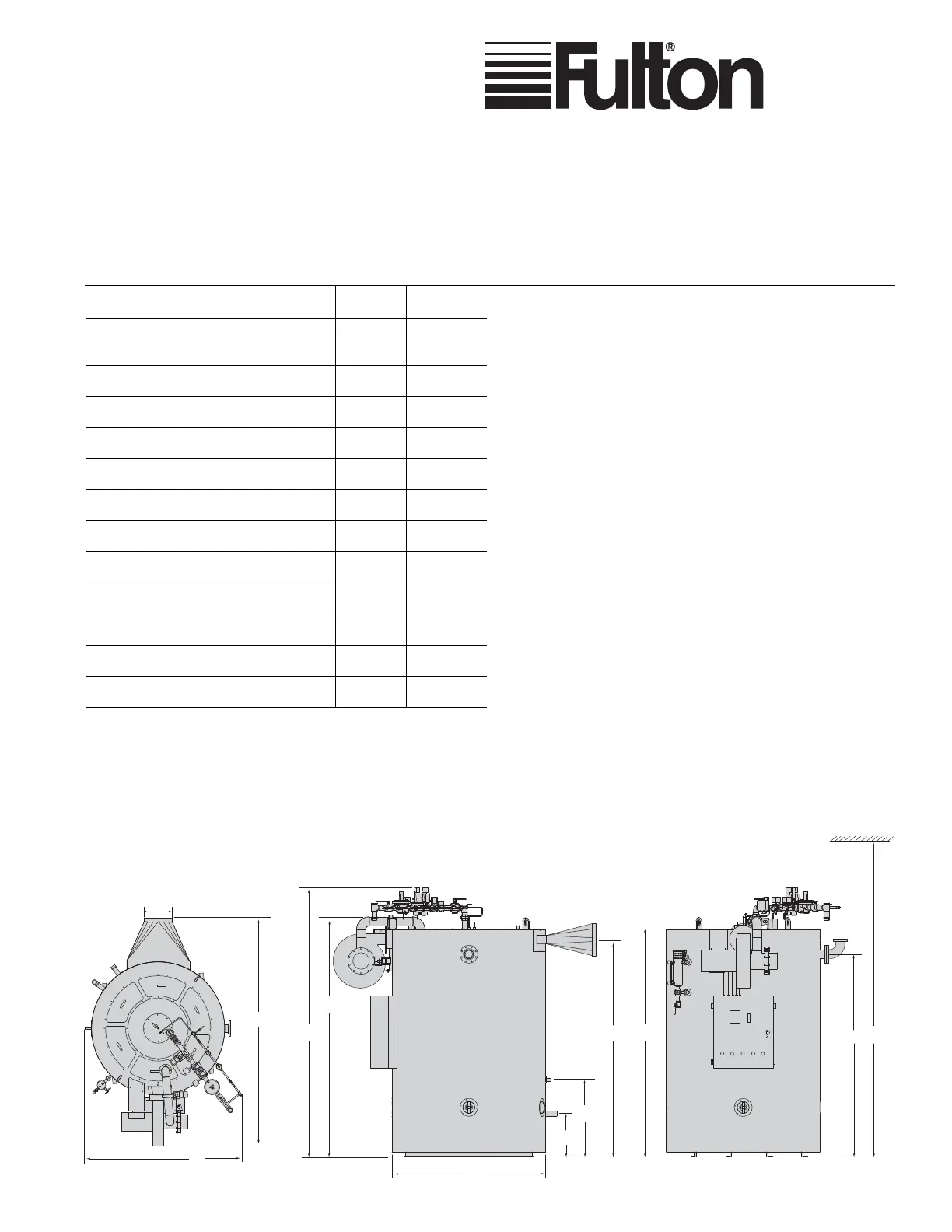

Dimensions
