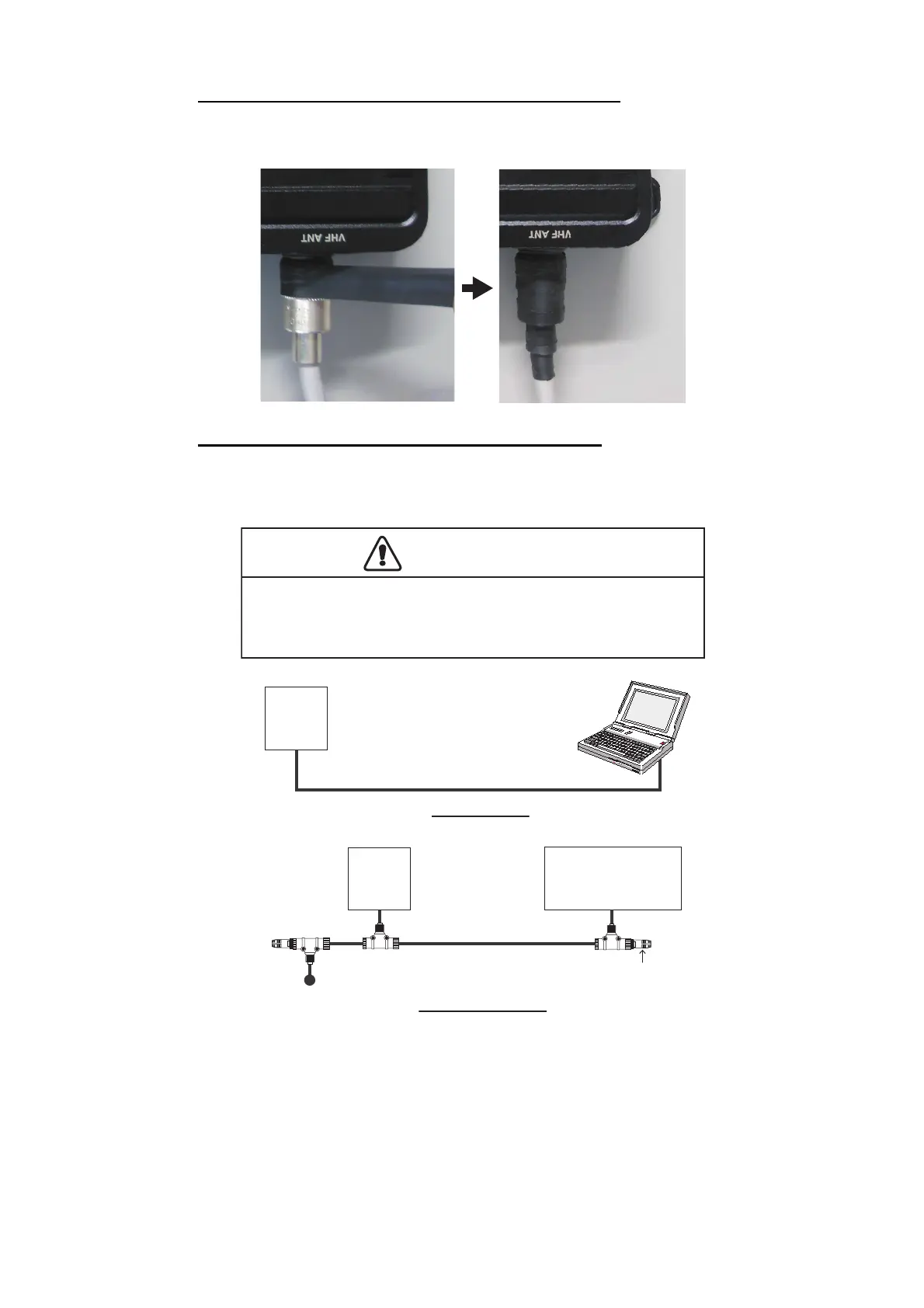

How to waterproof the connector for VHF antenna
Wrap the connector for VHF antenna with vulcanizing tape.
Connection with the PC and NavNet TZtouch2/3
The FA-40 may be connected to a PC or TZTL12F/TZTL15F/TZT12F/TZT16F/
TZT19F. See the figure below for connection examples.
CAUTION
PC connected by USB is only powered by a battery.
Short circuit can result if the PC is connected to ground.
FA-40
TZTL12F/15F,
TZT12F/16F/19F
FA-40 and PC
USB
FA-40
NMEA2000
FA-40 and NavNet
PC
15 VDC
Terminator
To Next Page
