2. WIRING
13
2.2 Distress Alert/Received Call Unit IC-305

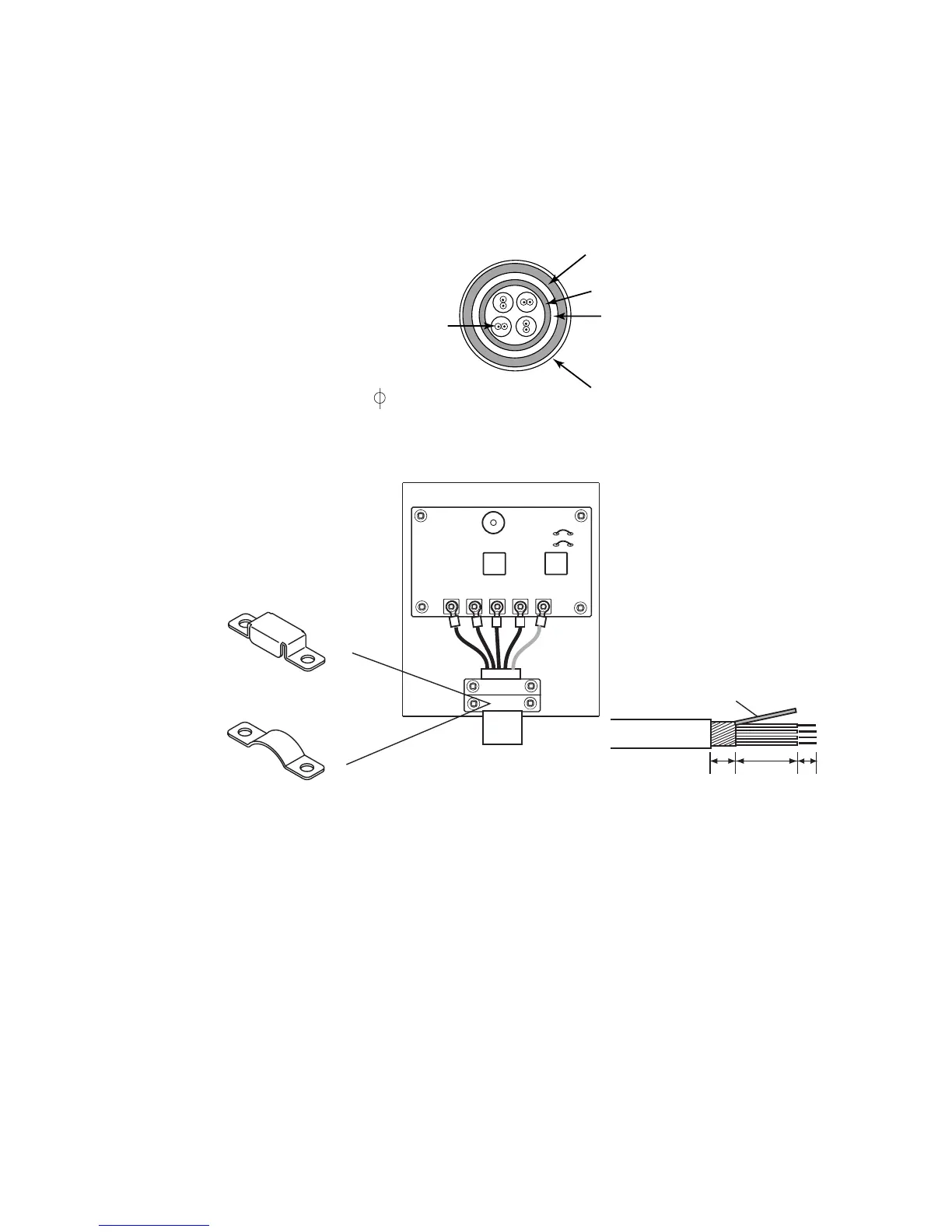

Use the installation material CP16-02201 to connect the distress alert IC-305.
The optional CO-SPEVV-SB-C 0.2x5P cable or JIS cable (Japan Industrial
Standards) TTYCS-4 or equivalent are available to connect with the junction box
IC-305. Select the cable clamp attached depending on the diameter of cable,
and fix the armor of cable with the clamp.
Painting
Armor
(Sectional view)
S =1.25 mm
=1.35 mm
2
Conductor
(Twisted pair)
Shield
Vinyl sheath
TTYCS-4 cable, sectional view
Distress alert
IC-305
16P0213
12345
15 mm 40 mm 10 mm
CO-SPEVV-SB-C 0.2X5P
or TTYCS-4
Cut unused cables.
For TTYCS-4 (JIS)
or equivalent
For CO-SPEVV-
SB-C 0.2x5P
Twist the shield.
Wiring of distress alert IC-305
To Next Page
