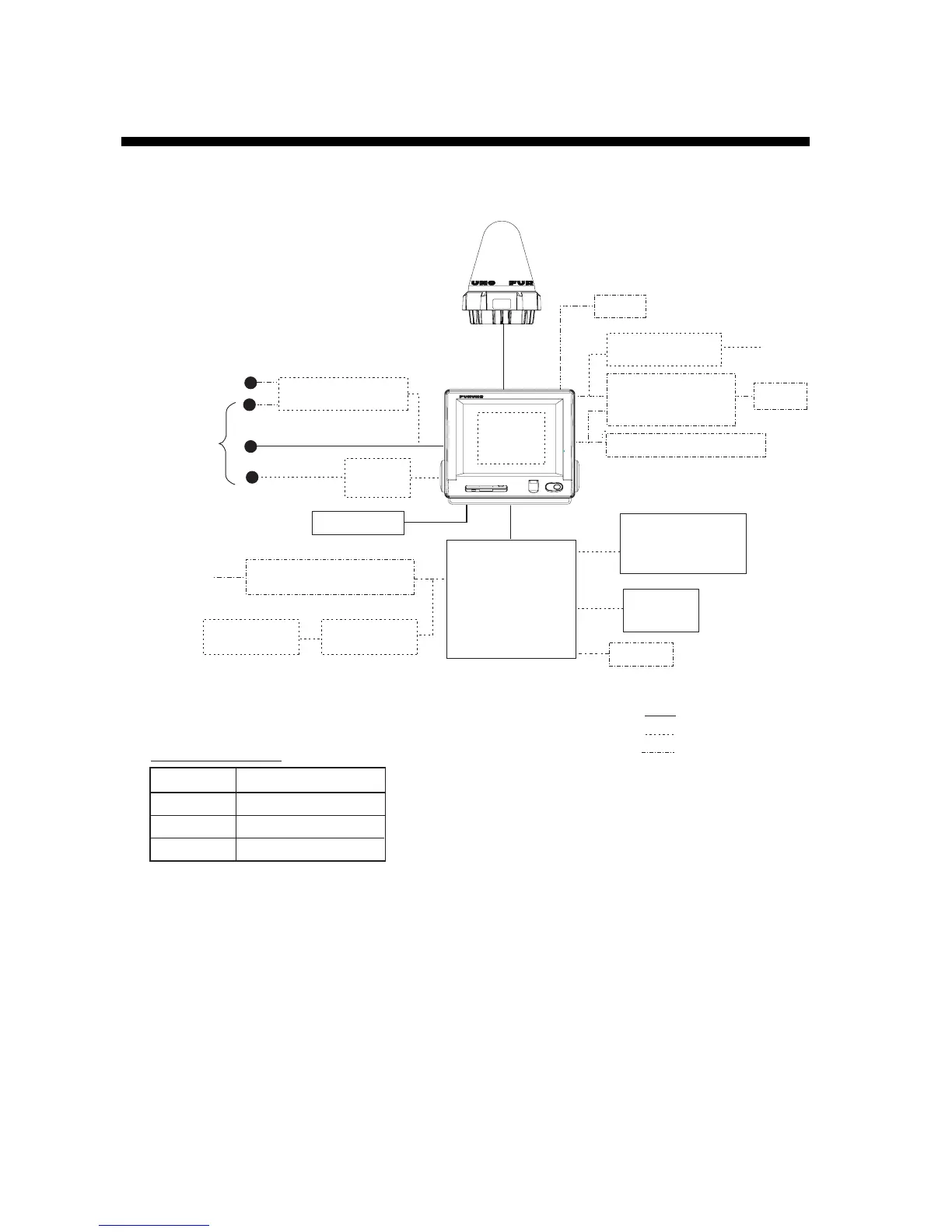

SYSTEM CONFIGURATION
Printer**
PP-510
ANTENNA
UNIT
IC-115
TERMINAL UNIT
IC-215
JUNCTION
BOX
IC-315
Navigator
POWER SUPPLY
100-115/200-230 VAC
1φ, 50/60 Hz
: Standard Supply
: Option
: Local Supply
POWER SUPPLY
12/24 VDC
AC-DC Power Supply
PR-240
* For 12 VDC power supply,
DC-DC converter is
required to use PP-510.
Distress Message Controller
DMC-5
Personal
Computer
(PC/AT compatible)
EGC Printer**
PP-505
Shipboard LAN (Ethernet)
GPS Board
OP16-47
Mini Keyboard
DGPS
CATEGORY OF UNITS
Unit Category
Terminal Unit Protected from weather
Antenna Unit Exposed to weather
Other Units Protected from weather
**: Mandatory for EGC operation as required by IMO RES. A.664(16).
Distress Alert/
Received Call Unit
IC-305
Alarm Unit
IC-306
24 VDC
Printer
SSAS Alert Unit*
IC-307
OR
SSAS Alert Unit*
IC-307
(Max. 3 units)
*: At least two SSAS Alert Units are required.
24 VDC
To Next Page
