Furuno FELCOM 500

 9.4 Antenna Unit: FB-1500
9-20

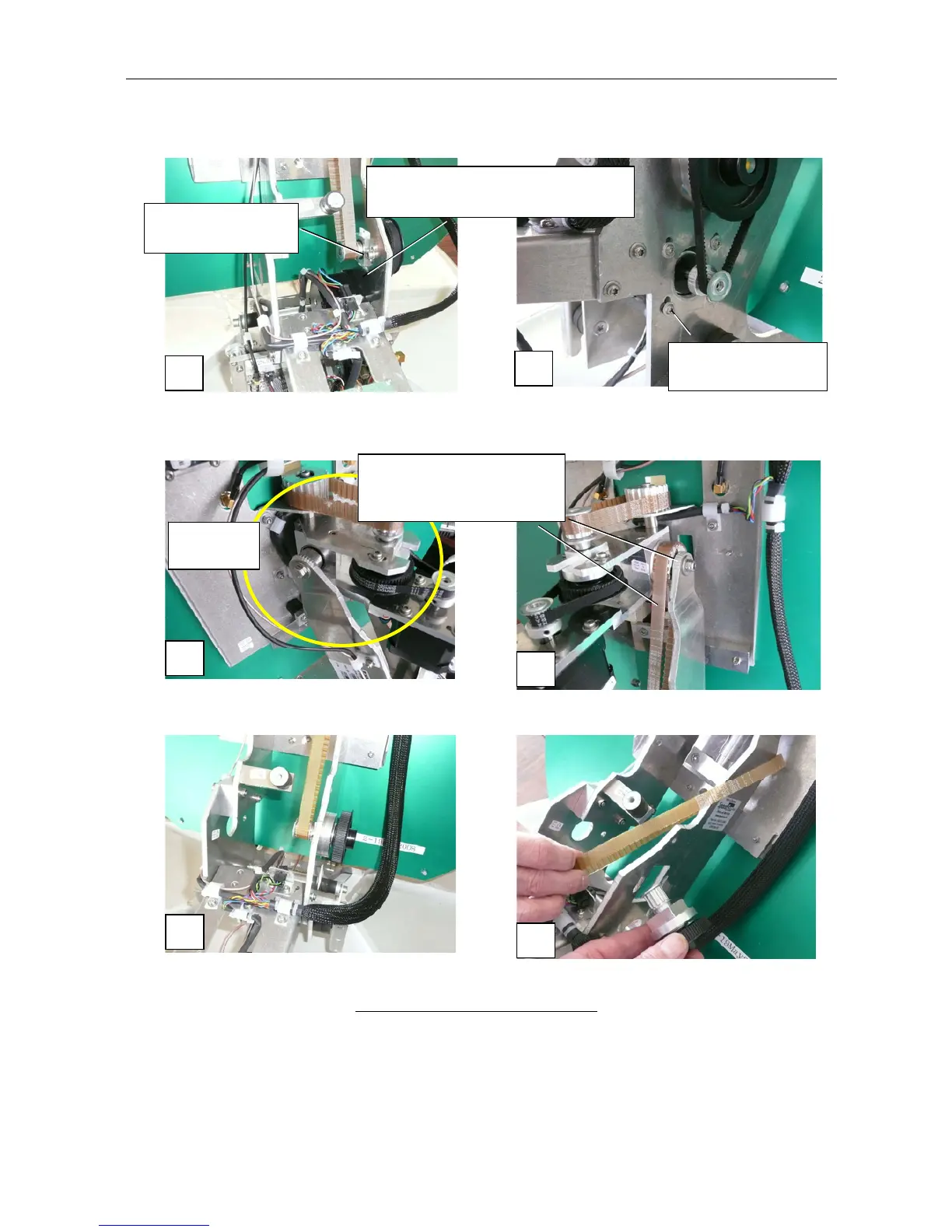

Fig. 9.4.17 EL drive disassembled
EL motor
(FL422STH38-0604A-02 1.81°0.6A)
Adjust belt tension
x 4
Adjust belt tension
x 2
When removing the EL belt,
remove the shaft of the
cross EL drive first.
Cross EL
drive part
1
6
5
4
3
2
