Furuno FELCOM 500

 9.4 Antenna Unit: FB-1500
9-19

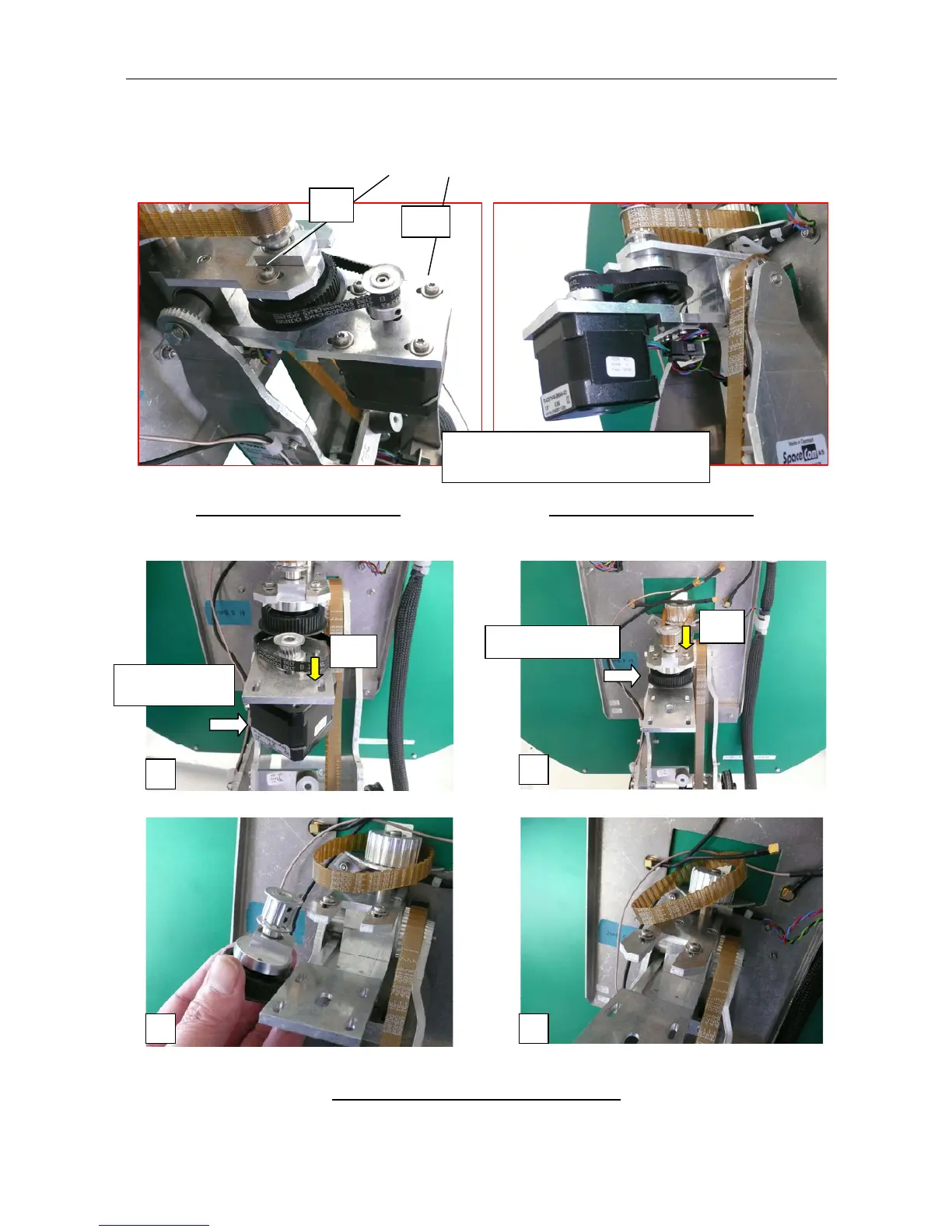

Fig. 9.4.14 Cross EL drive -1 Fig. 9.4.15 Cross EL drive -2
Fig. 9.4.16 Cross EL drive disassembled
Adjust belt tension
x 4
x 2
Cross EL motor
(FL422STH38-0604A-02 1.81°0.6A)
1
43
2
Cross EL motor
removed
x 4
Pulley removed
x 4
