Furuno FMD-3200-BB User Manual

1. INITIAL SETTING AND ADJUSTMENT
1-48

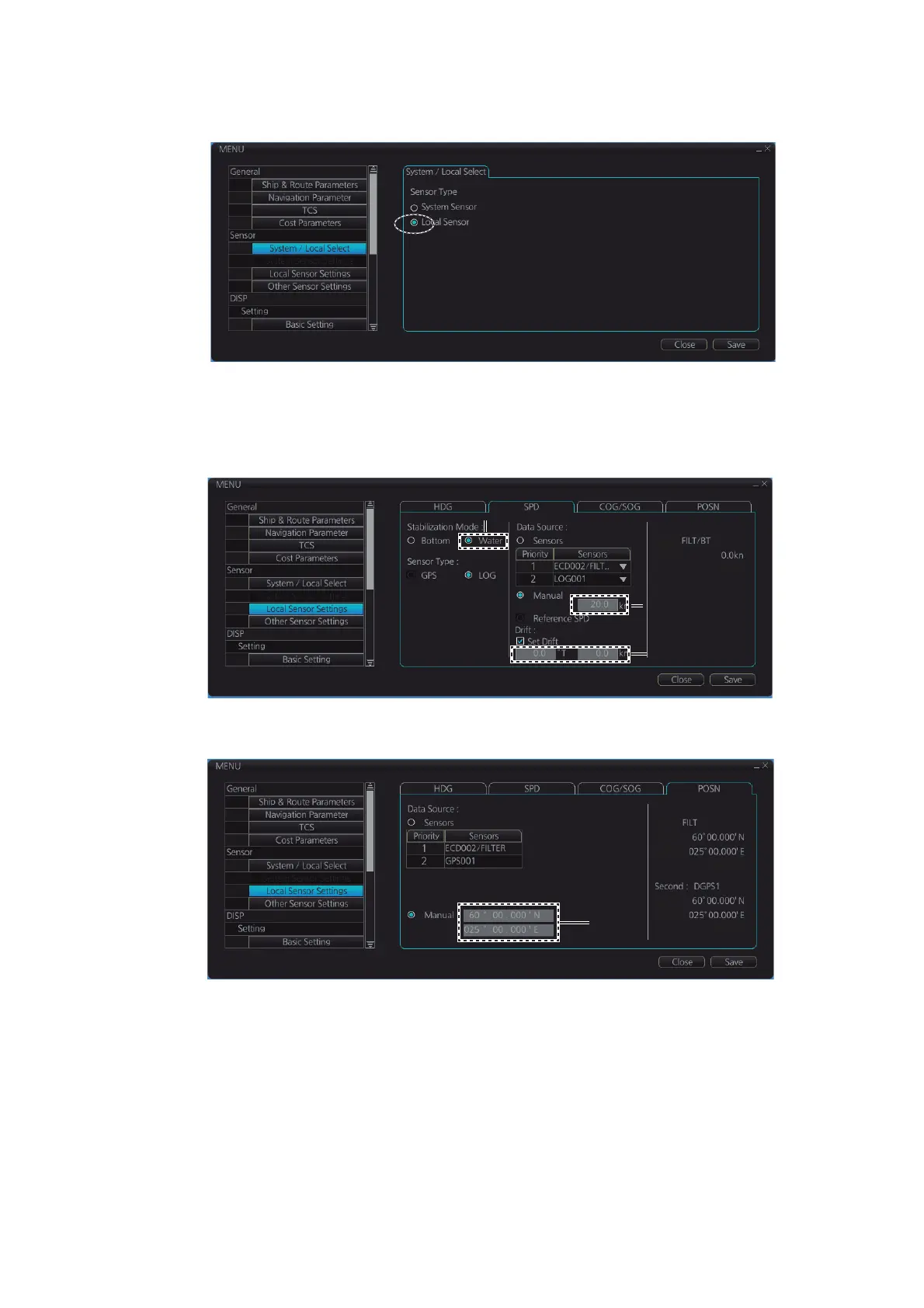

2. Click [System/Local Select] on the menu.
3. Select [Local Sensor], and then click Save button.
4. Click [Local Sensor Setting] on the menu.
5. Open the [SPD] tab to set [Stabilization Mode] to [Water].
6. Set [Data Source] to [Manual] to enter any ship’s speed value.
7. Check the checkbox of [Set Drift] to enter any speed and course of drift.
8. Open the [POSN] tab to set [Data Source] to [Manual].
9. Enter any position data on the dialog box shown below.
㻼㻾㻵㻹㻦
㻿㻼㻰㻦
Select [Manual].
Select [Manual].
Enter speed and
course of drift.
Enter speed and
course of drift.
Enter ship ’ s speed.
Enter ship ’ s speed.
㻼㻾㻵㻹㻦
㻸㻭㼀㻦
㻸㻻㻺㻦
㻸㻭㼀㻦
㻸㻻㻺㻦
Enter the position data.
Enter the position data.

Furuno FMD-3200-BB Specifications

General

Display Type	LCD
Screen Size	12.1 inches
Resolution	1024 x 768 pixels
Input Voltage	24 VDC
Weight	4.5 kg
Display Size	12.1 inches
Type	ECDIS
Power Supply	24 VDC
Touchscreen	Yes
Operating Temperature	-15°C to +55°C
Interfaces	Ethernet, USB
Certifications	IMO, IEC
