Before Using
Connectors
1: Steering servo (CH1)
2: Throttle servo (CH2)
3: CH3 servo (CH3)
B/C: Power connector/DSC connector
R303FS
receiver
For the receiver, servos, and other connections, see page 22.
Servo lead
Servo horn
Mounting flange
<Accessory>
The following items are provided for setting:
- Spare servo horn
- Parts for servo installation
(For the installation precautions, see page 23.)
Crystal
When changing the frequency, use the
specified Futaba crystal set.
Antenna
Connectors
1: Steering servo (CH1)
2: Throttle servo (CH2)
3: CH3 servo (CH3)
B/C: Power connector/DSC connector

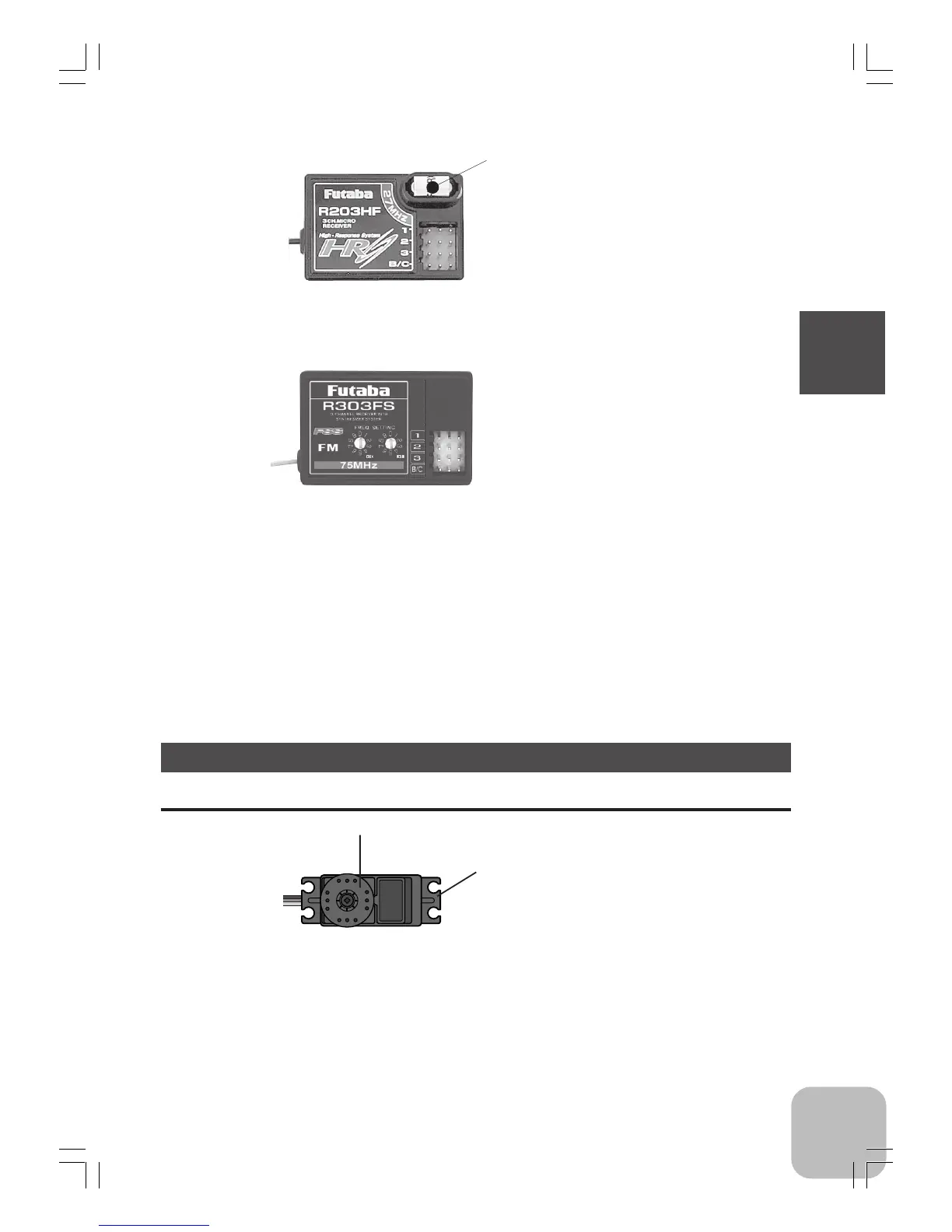

R203HF
receiver
Servo
Nomenclature
Antenna
Channel Selection
When changing the frequency, adjust the two dials on R303FS.
Refer to the channnel - frequency table attached.
