20

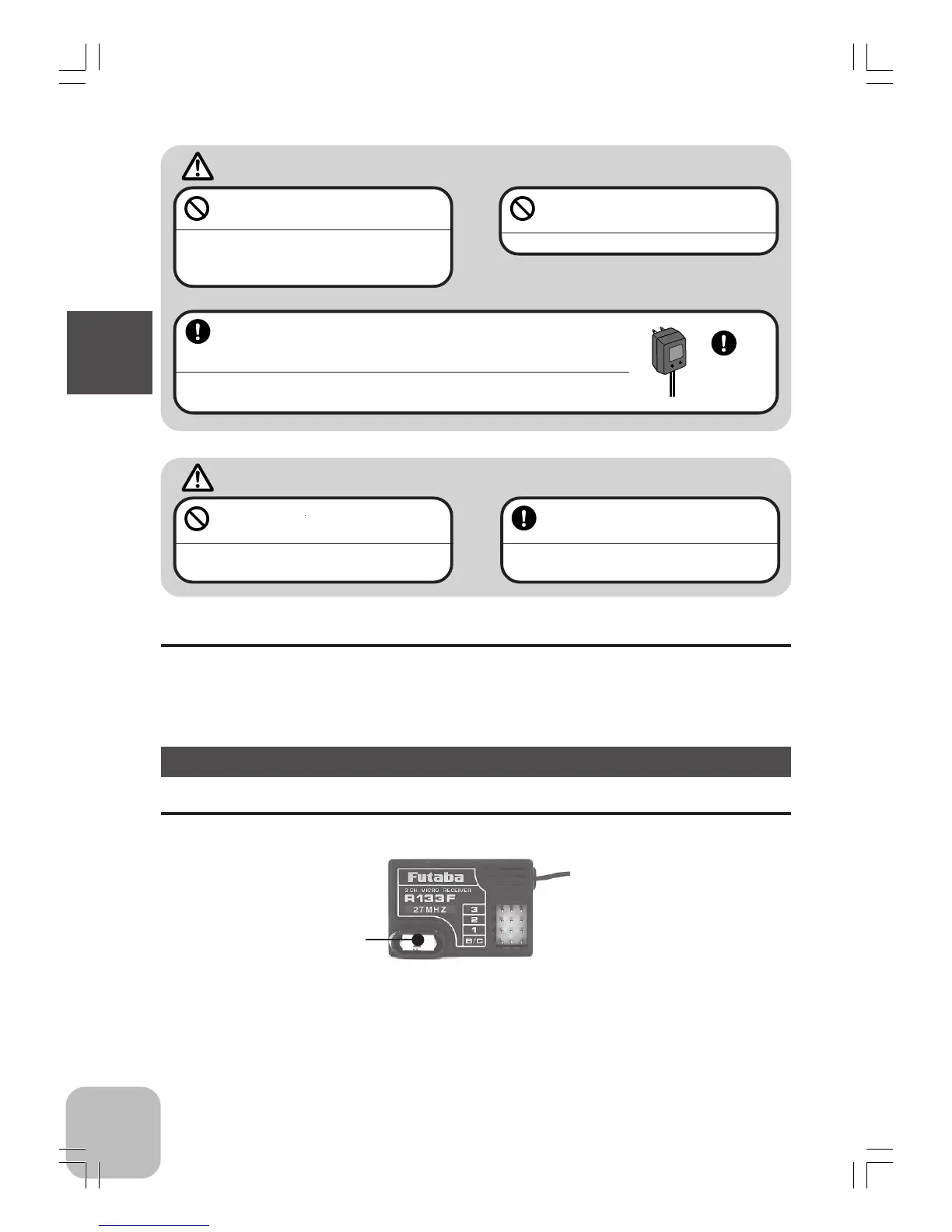

Before Using
Always use the special charger or a quick charger for digital pro-
portional R/C sets to charge a digital proportional R/C set NiCd
battery.
Overcharging a NiCd battery can result in burns, fire, injuries, or loss of sight due to
overheating, breakage, or electrolyte leakage.
Never try to recharge a dry cell bat-
tery.
The transmitter may be damaged or the battery
electrolyte may leak or the battery may break.
When the charger is not in use, dis-
connect it from the AC outlet.
Do this to prevent accidents and to avoid overheat-
ing.
Caution
Never plug it into an outlet other
than indicated voltage.
Plugging the charger into the wrong outlet may re-
sult in an explosion, sparking, or fire.
Do not insert and remove the
charger when your hands are wet.
It may cause an electric shock.
Warning
Use the
special
char
er.
Receiver
Nomenclature
Set data backup
The set data of each function of the 3PM transmitter is stored in a memory element
that does not require a backup battery. Therefore, the 3PM transmitter can be used
without paying attention to the backup battery life.
Antenna
Connectors
3: CH3 servo (CH3)
2: Throttle servo (CH2)
1: Steering servo (CH1)
B/C: Power connector/DSC connector
R133F
receiver
When changing the frequency, use the
specified Futaba crystal set.
Crystal
To Next Page
