GALaxy eHydro Elevator Controller Section 5 – LCD Interface
5-36
5.2.10.4 NTS Valid Floors & Clips
The NTS Valid Floors and Clips menu shows the valid floors learned in the NTS Processor’s
hoistway table during setup and the valid clips read at each floor while running. The clip locations are
learned after the car has been setup and is running on automatic at which time the NTS Processor
creates a table of floors with valid clips. If the car stops at a floor and does not read a valid clip for three
consecutive stops, the car will shut down with NTS DZ Clip Fault.

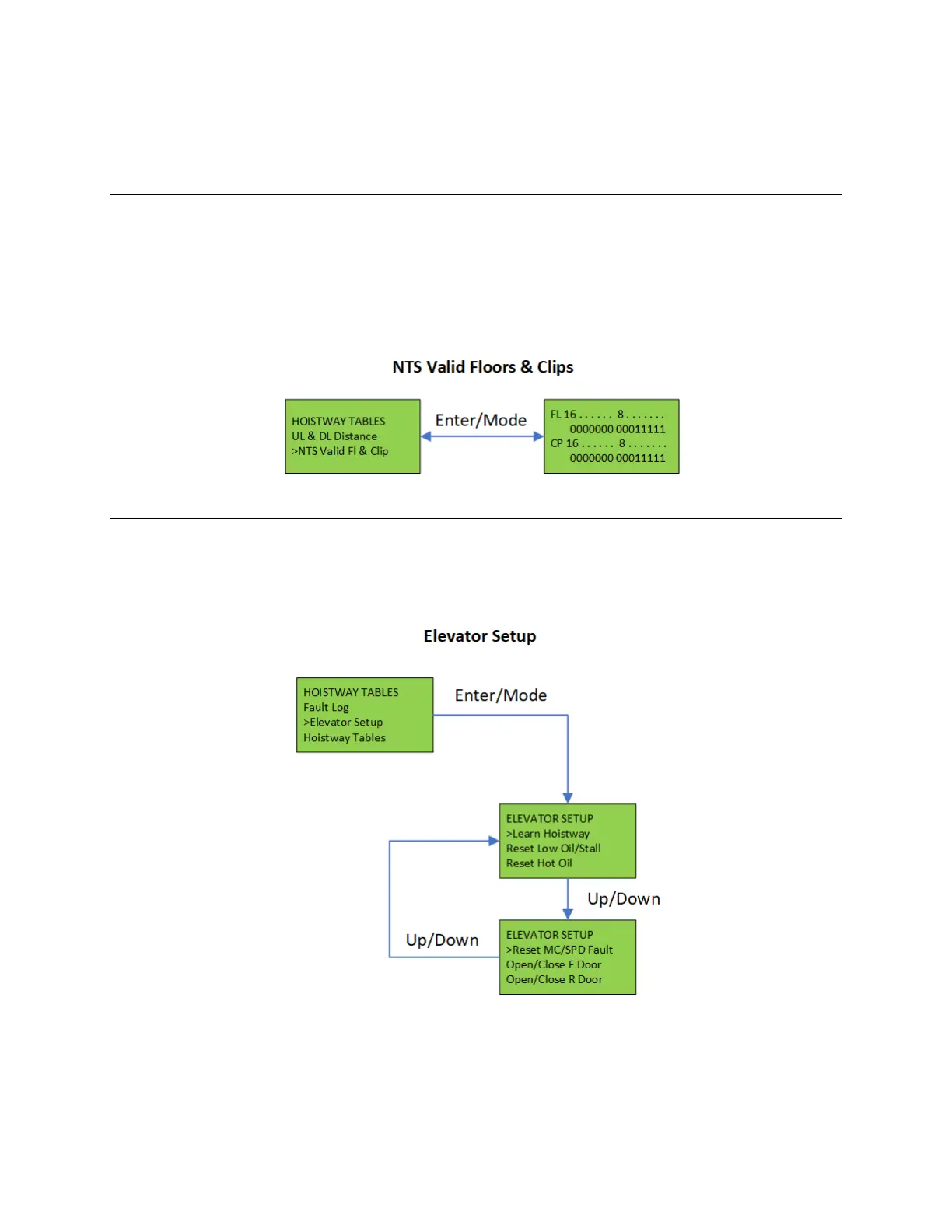

Figure 5-34:
5.2.10.5 Elevator Setup
The Elevator Setup menu allows the user to learn the hoistway floor locations, reset fault conditions and
open or close the door on inspection.
Figure 5-35:
